copper ore flotation cell
- 50 Set / Sets per Month
- Qingdao Shanghai or any other China port
Product Details
Condition: | New | Type: | Flotation Separator | Production Capacity: | 0.5-4m³/min |
Place of Origin: | Shandong, China | Brand Name: | ZHAOXIN | Model Number: | BS-K4 |
Voltage: | 380V | Power(W): | 7.5KW | Dimension(L*W*H): | 1850x1850x1550mm |
Weight: | 2568KG | Certification: | ISO9001:2008 | Warranty: | one year, 1 year for copper ore flotation cell |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Standard packaging for copper ore flotation cell
Product Description

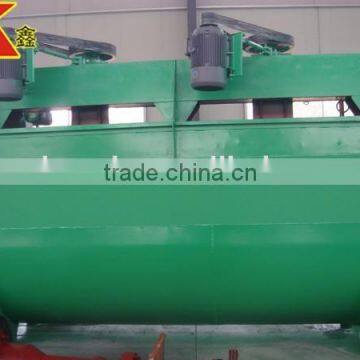

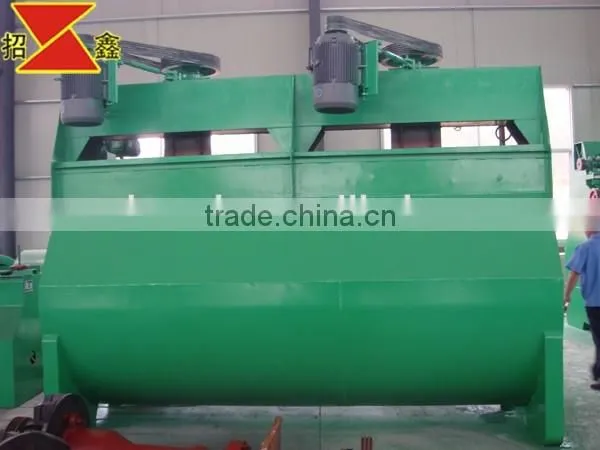

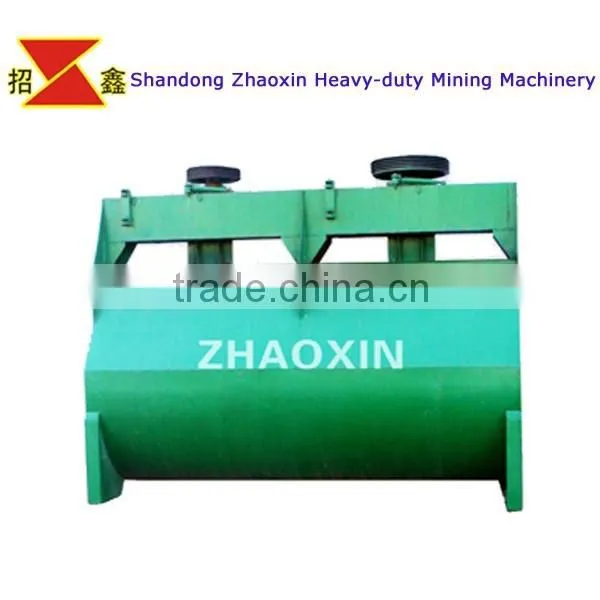

copper ore flotation cell
Features of copper ore flotation cell
The main shaft of BS-K flotation machine is hung at one side of the frame .With a light structure, it is easy to install the bearing body with a good perpendicularity. With cone-shaped cross section of the impeller and rediation-shaped stator, the machine is featured with wear resistance , long service life and powerful agitating force. U-shaped tank reduces the ore accumulated at the bottom of the tank. With light main shaft parts and the stator installed at the bottom of the tank, it is easy to install them. With small installed power, the machine is energy saving. With compressed air filled in, air bubbles disperse uniformly and the foam is stale. Thus, the suspension of mineral grains is good with a high recovery rate.
This product can be divided into several units, such as single tank, double tank, three tanks, four tanks, five tanks and six tanks, ect. Since this product has no ability of imbibing the ore pulp and air spontaneously, the flow of ore pulp needs terrace arrangement, and the return of foams depends on the foam pump.
Technical parameters of copper ore flotation cell
Model | Volume(m³) | Rotational of rotor(r/min) | Wind pressure(MPa) | Processing capacity(m³/min) | Motor power(kw) | Inner Dimension(mm) | Weight of single cell(kg) |
BS-K2.8 | 2.8 | 248 | 0.015 | 0.4-3 | Y160M2-8/5.5 | 1550*1550*1350 | 1740 |
BS-K4 | 4.0 | 210 | 0.015 | 0.5-4 | Y160L-8/7.5 | 1850*1850*1550 | 2568 |
BS-K8 | 8.0 | 180 | 0.015 | 1.0-8.0 | Y180L-6/15 | 2350*2350*1950 | 4460 |
BS-K16 | 16.0 | 160 | 0.015 | 2.0-15.0 | Y250M-8/30 | 2800*2800*2400 | 9231 |
BS-K24 | 24.0 | 154 | 0.015 | 7-20 | Y280S-8/37 | 3200*3200*2800 | 11107 |

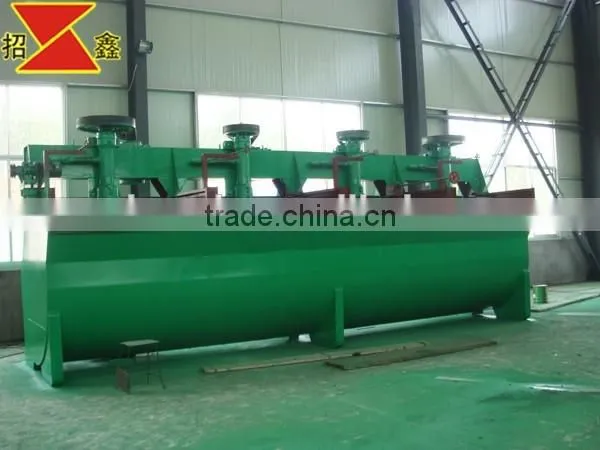

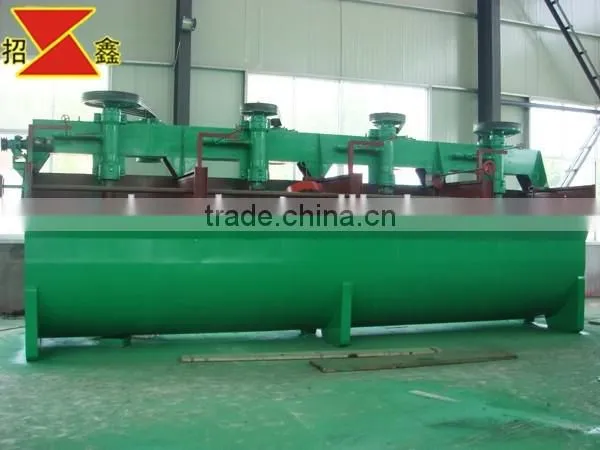

Detailed parts of copper ore flotation cell
copper ore flotation cell
Safe shipment of copper ore flotation cell
Certificate and honor
Shandong Zhaoxin Heavy-duty Mining Machinery Co., Ltd. is a professional manufacturer of all kinds of mining equipment, with ISO9001-2008 certificated.
With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area.
Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
Company Profile
Shandong Zhaoxin Heavy-Duty Mining Machinery Co., Ltd is located at No.66 Jinlong Road, Zhaoyuan Economic & Technological Development Zone which is a national economic development zone in China. With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area. Zhaoxin machinery has exported to more than 20 countries.
The company mainly manufactures mineral processing and smelting equipment with daily processing capacity of 50 to 5000 MT and automatic control equipment with 20 varieties and more than 200 items. Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, floatation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training. The company has occupied a good reputation in this industry by fist class of quality, reasonable price and durable operation life. The company is ISO9001:2008 certificated.
Mr. Luan Wanxin, chairman and general manager of the company, greet all friends from home and abroad. We are sure that our service from heart and soul will make all customers satisfied from head to toe.
