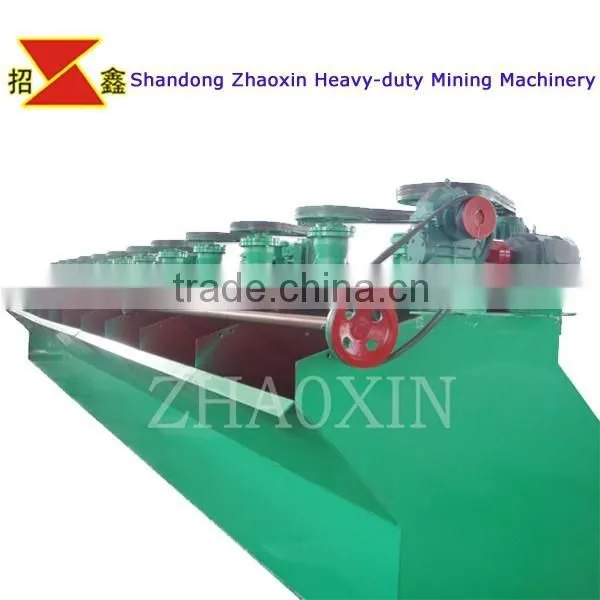

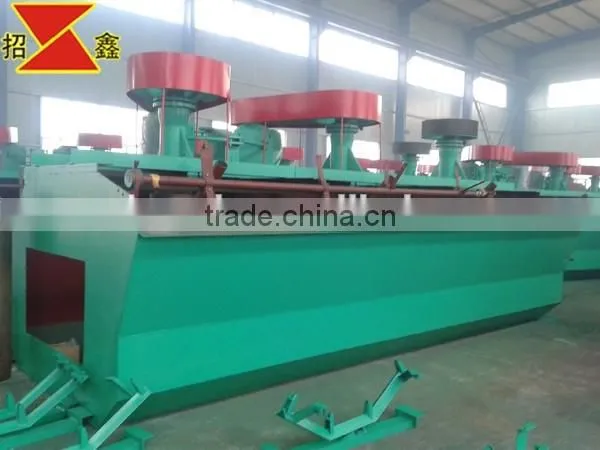

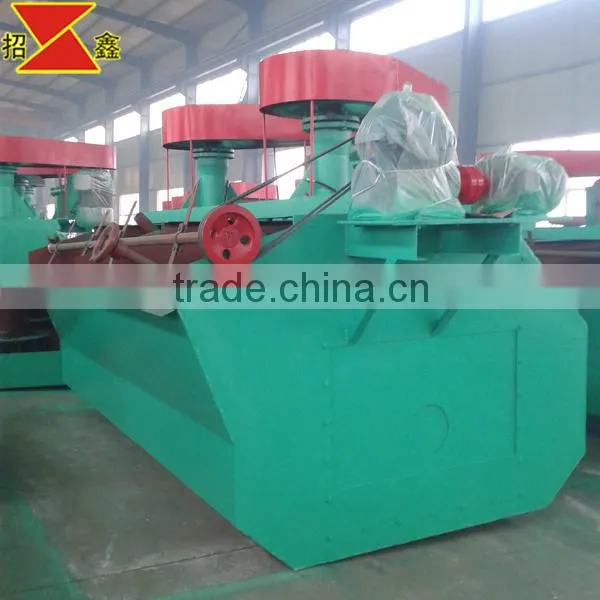

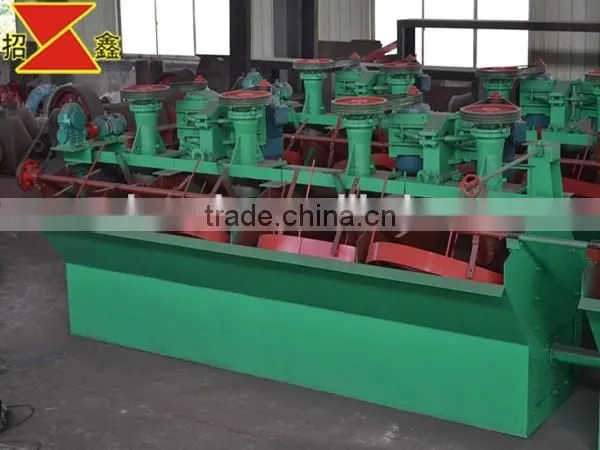

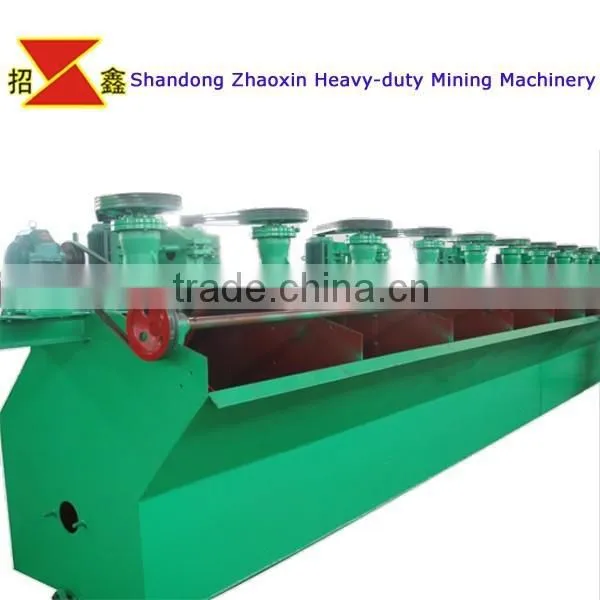

High quality ore flotation machine
Overview of flotation
This kind of flotation machine can imbibe the air and ore pulp spontaneously, with a foreraking tank not liable to precipitation into the tank but facilitating returning of the foams. Its double-blade impeller can agitate the coarse sand at the bottom adequately.
Features of flotation
1. Large air suction amount, low energy consumption, horizontal arrangement, no foam pump required.
2. Low peripheral velocity of the impeller, long service life of the impeller cover plate, upper and lower double
of the ore pulp in a fixed way, which is conducive to the suspension of coarse grain minerals.
Technical parameters of flotation
| Model | Effective volume(m³) |
Capacity(m³/min) | D of impeller(mm) | Impeller revolution(r.p.m) | Motor power for agitation(kw) | Motor power for scraper(kw) | Weight of single tank(kg) |
| SF-0.37 | 0.37 | 0.2-0.4 | 300 | 352-442 | 1.5 | 0.75 | 470 |
| SF-0.7 | 0.7 | 0.3-1.0 | 350 | 400 | 3 | 1.1 | 970 |
| SF-1.2 | 1.2 | 0.6-1.2 | 450 | 312 | 5.5 | 1.1 | 1400 |
| SF-2.8 | 2.8 | 1.5-3.5 | 550 | 268 | 11 | 1.5 | 2242 |
| SF-4 | 4 | 2.0-4 | 650 | 235 | 15 | 1.5 | 2600 |
| SF-8 | 8 | 4.0-8 | 760 | 191 | 30 | 1.5 | 4292 |
| SF-16 | 16 | 5.0-16 | 850 | 169-193 | 45 | 1.5 | 7415 |
| SF-20 | 20 | 5.0-20 | 760 | 186 | 30*2 | 1.5 |
9823 |
Detailed parts of flotation
flotation
Safe shipment of flotation
Certificate and honor
Shandong Zhaoxin Heavy-duty Mining Machinery Co., Ltd. is a professional manufacturer of all kinds of mining equipment, with ISO9001-2008 certificated.
With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area.
Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
If any question about our products, please feel free to contact us.
