OT6000 Portable OTDR

Specifications

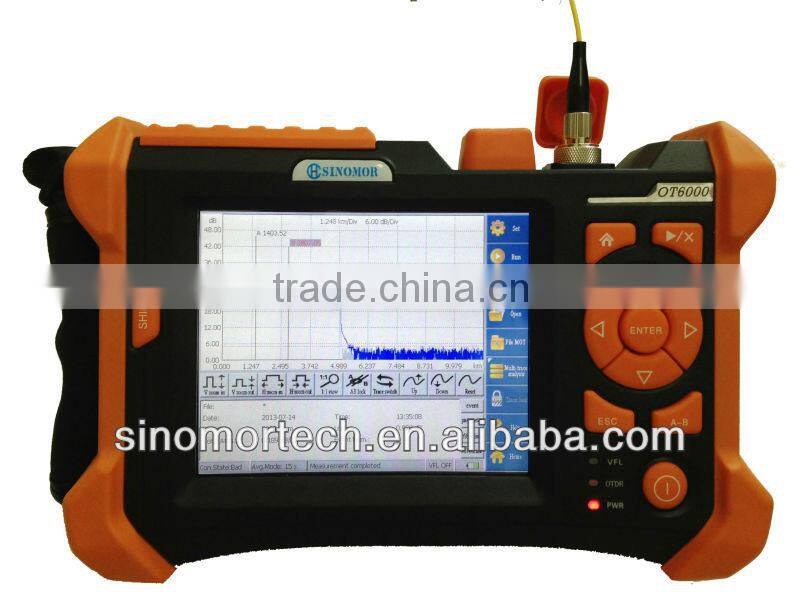

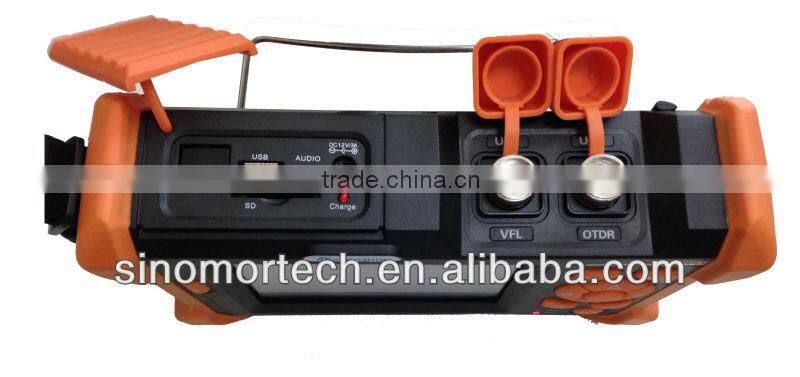

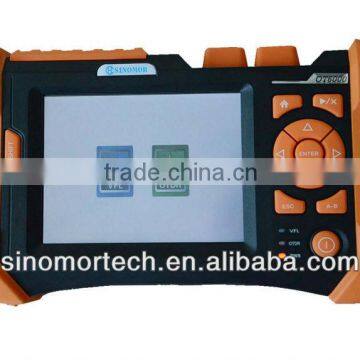

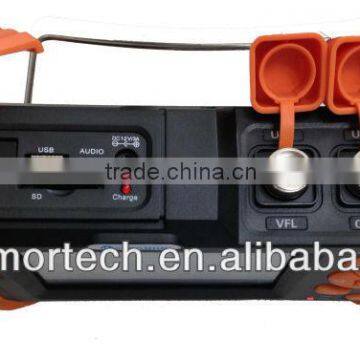

Overview

OT6000 OTDR is new model handheld OTDR, it has user-friendly interface, 5.6” large colorful touch-screen and multi-wavelength combination to meet customers’ different test requirements.

Features

1. Automatic Measurement Mode

     OT6000 OTDR will automatically set measurement parameters, test and save test result.

2. Multi-wavelength Measurement Mode

     In the parameter setting, the wavelength can be automatically switched into the multi- wavelength measurement mode. Under “Multi-wavelength Measurement” Mode, the attenuation sate of same fiber at different wavelength will be showed on the screen.

3. Trace Fixing Function

     It can fix one trace and compare it with another real-time trace or averaged trace, them display them on the screen. It is very useful for the installation of multi-core fibers or identification of the aged fibers in the current optical fiber network.

4. Multi-wavelength Analysis Function

     Under this mode, it can compare, display and analyze of any trace files.

5. FTTx Online Test Function

     It is able to identify the splitter and the fiber’s end.

6. More than 8-hour-standby

7. More than 10,000 traces storage with Bellcore (*.sor) file format

8. Communication Light Detection

     It can effectively protect the test instrument and communication equipment.

9. Connection Status Detection

     It can promptly know the connector status to make the work under best condition.

10. Fast Measurement Mode Switching

     Via shortcut key, it can fast switch test mode between Real-Time Measurement Mode and Average Measurement Mode.

11. OTDR Traces Manager Software

1. Review and analysis of tested traces
2. Display traces, event list, test parameter and test results and so on.
3. Bulk files amendment and batch printing.
4. Edition and analysis of test traces in PC and generation of different forms of test reports according to user needs.
5. Flexible Printing Mode

    5a) single-page single-trace printing mode

    5b)  batch-printing mode

    5c)  single-page multi-traces printing mode

    5d)  printing mode of multi-waveform display.

          To provide the personalized selection of printing options and page setup.

     6. Waveform Difference Comparison Function

          Several waveforms can display in one same window, which is easy to find parameter changes caused by fiber aging or other reasons.

Specification

Remark:

1. The parameter in the technical specification is tested with PC Connector and  ignores the uncertainty caused by different fiber refractive index.

2. Test condition of Dynamic Range: Max Pulse Width and 3 minutes average time. That is (180km/20480ns/3min).

3. Test condition of Dead Zone: Reflection event distance is within 4Km, reflection strength< -35dB and Min Pulse Width.

4. This Dynamic Range is tested with filter.

5. This Dynamic Range is tested without filter.

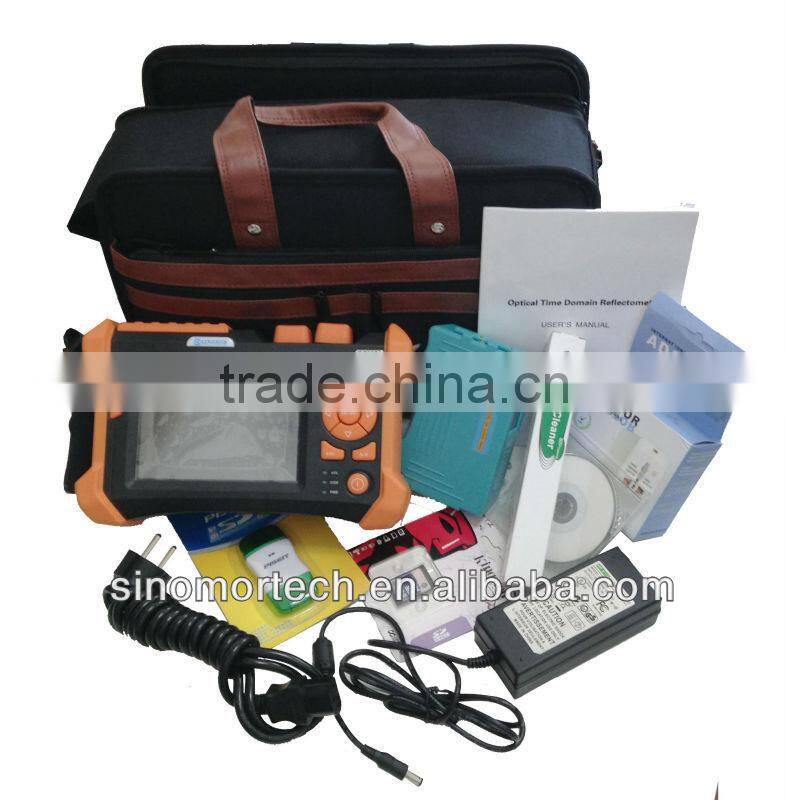

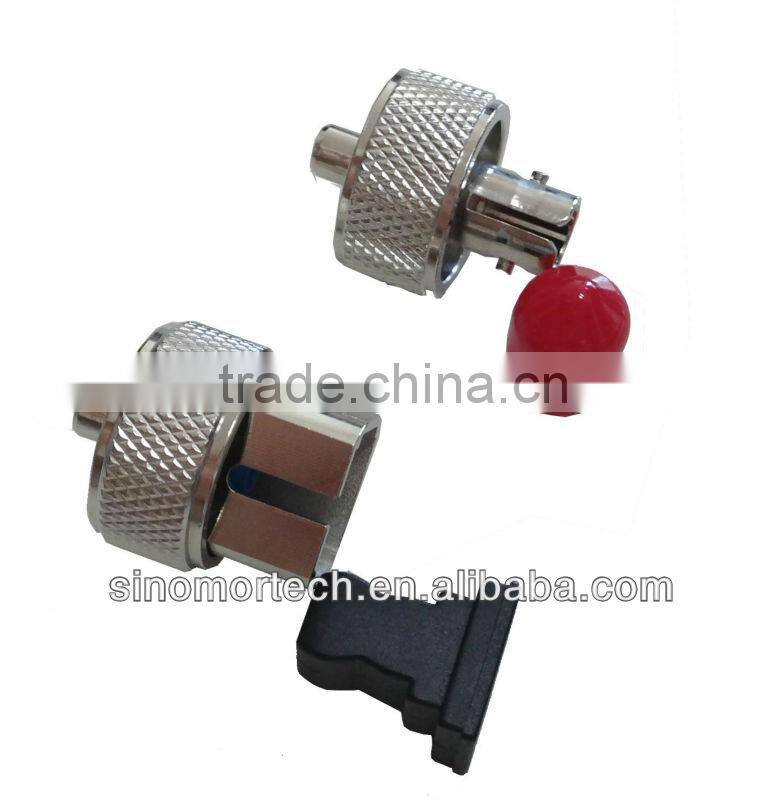

Standard Accessories

1)   Main Unit

2)   Cleaning Stick

3)   2.5mm In-adapter Cleaner

4)   Connector Cleaner

5)   Lithium Battery

6)   Trace Manager Software CD

7)   USB cable

8)   Carrying case

9)   Calibration Certificate

10)  CE certificate

11)  Quick Reference Manual

12)  Manual

13)  Power Adapter
