Overview
OT6200 series PON OTDR,Handheld OTDR is multi function OTDR. It provides comprehensive optical test for metro, access/FTTx, and LAN network. Also OT6200 series PON OTDR, Handheld OTDR is a lightweight, flexible and applicable for both indoor and outdoors test. It is a good choice for service providers validating at installing phase or troubleshooting at running phase.

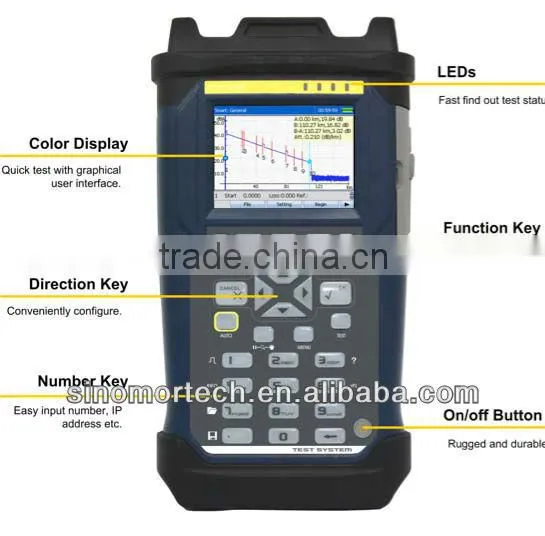

Features
- PON OTDR,Handheld OTDR
- High-resolution colorful screen, easy to read and operate even under sunlight.
- Lightweight, rugged, flexible for field testing
- Fast start-up, high resolution color touch display
- Friendly keystroke designed for easy, flexible input and select
- Covering all OTDR functions, dual-wavelength for different test demand
- More comprehensive test features with higher performance-to-price ratio
- 200km distance range satisfy metro and access optical network test application
- FTTx/MDU PON—network test
- Shockproof designed for field application.
- Easy detecting and characterizing fiber with simple and friendly keys.
- Covering all OTDR functions for whole optical link testing and maintaining.
- PON OTDR supports maximum 4 wavelengths (1310/1490/1550/1625nm) for fiber testing, and automatic switching multi-wavelength OTDR testing.
- Regular OTDR provides more flexible dynamic range: 40dB, 35dB and 30dB.
- 0.8m event dead zone and 7m attenuation dead zone for pinpoint event location.
-
Support VFL function and optional optical power meter function and so on.

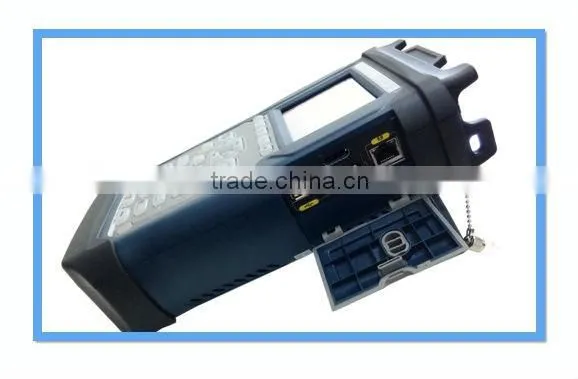

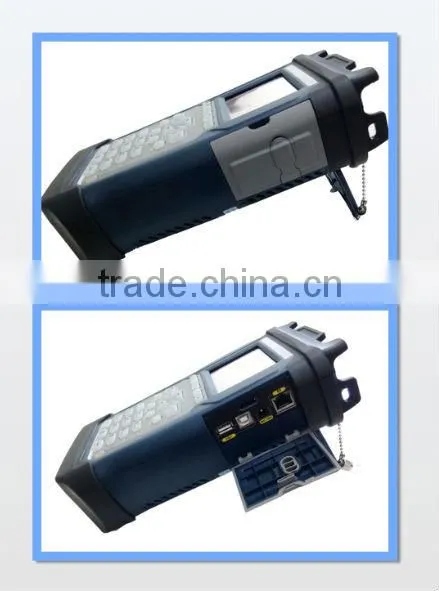

Fiber Optical Network Testing
Now OTDR is necessary test equipment for installing, monitoring and troubleshooting of optical network. As increasingly demand
of high bandwidth service, fiber optical network is rapidly expanding. OT6200 series handheld OTDR provides more comprehensive fiber test functions and more accurate test result, which could make network installation, operation and maintenance of fiber optical network easy and fast.
Specification
Model |
OT6200-TS |
OT6200-TN |
OT6200-TF |
OT6200-QT |
OT6200-QS |
Wavelength (nm) |
1310/1550/1625 |
1310/1490/1550 |
1310/1550/1650 |
1310/1490/1550/1625 |
1310/1490/1550/1650 |
Dynamic Range (dB) |
39/37/38 |
39/37/37 |
39/37/38 |
39/37/37/38 |
39/37/37/38 |
Pulse Width (ns) |
3~20000 |
3~20000 |
3~20000 |
3~20000 |
3~20000 |
Event Dead Zone (m) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
Attenuation Dead Zone (m) |
7/7/7 |
7/7/7 |
7/7/7 |
7/7/7/7 |
7/7/7/7 |
Linearity (dB/dB) |
±0.03 |
±0.03 |
±0.03 |
±0.03 |
±0.03 |
Loss Threshold (dB) |
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
Loss Resolution (dB) |
0.001 |
0.001 |
0.001 |
0.001 |
0.001 |
Sampling Resolution (m) |
0. 125~1 |
0. 125~1 |
0. 125~1 |
0. 125~1 |
0. 125~1 |
Sampling Points |
256K |
256K |
256K |
256K |
256K |
Distance Uncertainty (m) |
±(0.75+0.0010%×distance + sampling resolution) |
||||
Distance Range (km) |
180 |
180 |
180 |
180 |
180 |
Typical Real-time Refresh (Hz) |
0.03 |
0.03 |
0.03 |
0.03 |
0.03 |
Memory Capacity |
500 traces |
500 traces |
500 traces |
500 traces |
500 traces |
Measurement Time |
10s~180m |
10s~180m |
10s~180m |
10s~180m |
10s~180m |
VFL Output Power (dBm) |
+3 |
+3 |
+3 |
+3 |
+3 |
General Information | |||||
Temperature |
Operating: -10°C to 50°C; storage: -40°C to 70°C |
||||
Relative Humidity |
0% to 95%(non-condensing) |
||||
Size(H×W×D) |
80mm x 135 mm x250 mm |
||||
Weight |
1.1kg |
||||
Power |
Li-lon batteries 8 hours of continuous operation as per Bellcore TR-NWT-001138 |
||||
Ordering Information
Category |
Model |
Description |
Standard Configuration | ||
Main Frame |
OT6200-DH |
Dual-wavelength 1310/1550nm OTDR tester, dynamic range 40/39dB. |
OT6200-DM |
Dual-wavelength 1310/1550nm OTDR tester, dynamic range 35/34dB. |
|
OT6200-DL |
Dual-wavelength 1310/1550nm OTDR tester, dynamic range 30/28dB. |
|
OT6200-TS |
Tri-wavelength 1310/1550/1625nm PON OTDR tester, dynamic range 39/37/38dB. |
|
OT6200-TN |
Tri-wavelength 1310/1490/1550nm PON OTDR tester, dynamic range 39/37/37dB. |
|
OT6200-TF |
Tri-wavelength 1310/1550/1650nm PON OTDR tester, dynamic range 39/37/38dB. |
|
OT6200-QT |
Qua-wavelength 1310/1490/1550/1625nm PON OTDR tester, dynamic range 39/37/37/38dB. |
|
OT6200-QS |
Qua-wavelength 1310/1490/1550/1650nm PON OTDR tester, dynamic range 39/37/37/38dB. |
|
Battery |
|
One 1 parrallel 3 series Lithium polymer rechargable battery for OTP6100, 10.8V. |
Power Adapter |
|
One 24V AC/DC, power adapter |
Power Cable |
|
One 2-mete-long power cable. |
Disc |
|
One disc. |
Package |
|
One package. |
Fiber Jumper |
|
One FC/FC port, single-mode, simplex, 9/125, 3-meter-long. |
VFL Function |
|
OTDR red light VFL testing option. |
Optional Configuration | ||
Functional Option |
OPM Function |
OTDR optical power PM testing option. |
OLS Function |
OTDR single-mode optical source testing option. |
|
IOTA |
Intelligent fiber link topology analyzer option. |
|
INT |
Intelligent network performance tool option. |
|
