Brand Name Sinomor
Model Number OT6000

Specifications

1. Large dynamic and multi-wavelength handheld OTDR.
2. Large touch screen
3. FTTx online test
4. Bulk print

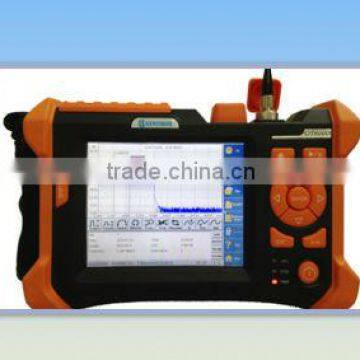

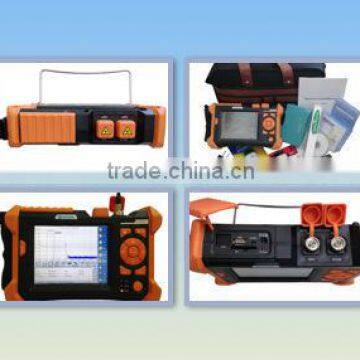

OT6000 Large Dynamic And Multi-wavelength Handheld OTDR

Overview



OT6000 large dynamic and multi-wavelength handheld OTDR will automatically set measurement parameters,

test and save test result.



In the parameter setting, the wavelength can be automatically switched into the multi-wavelength measurement mode.





OT6000  large dynamic and multi-wavelength handheld OTDR can fix one trace and compare it with another real-time trace or averaged trace, then display them on the screen.



OT6000  large dynamic and multi-wavelength handheld OTDR can also support the FTTx on-line test.



Features

  •  Multi-wavelength analysis function
  •  Trace sixing Function
  •   Multi-wavelength measurement mode
  •  Up to 10000 traces storage
  •  More than 8 working hours
  •  Connector ftatus detection
  •  Quick measurement mode switching
  •  Strong analysis software
  •  Multi-function print setting
  •  Waveform comparison function



Specification



Model

OT6000

Wavelength (nm)

850/1300

1310/1550

1310/1490/1550

1625

Dynamic Range (dB)2

23/21

32/30

34/32

36/34

38/36

34/32/32

38/36/36

304

325

344

365

Pulse Width (ns)

5,20,40,

80,160,

320,640,1280

5,20,40,80,160,320,640,1280,2560,5120,10240,20480

Event Dead Zone (m)3

2

2

Attenuation Dead Zone (m)3

9

9

Linearity (dB/dB)

±0.05 dB/ dB

Loss Threshold (dB)

0.05

Loss Resolution (dB)

0.01

Sampling resolution (m)

0.125 to 8

Sampling Point (k)

32

Distance Accuracy (m)

±(1 m + 5×10-5× distance + sampling interval)

Distance Range (km)

0.3 to 180

Refreshing Time (s)

0.2

Trace Capacity

SD Card (2G), > 10000 pieces

Measurement Time (s)

 5,10,15,30,60,120,180

Visual Fault Locator

Wavelength (nm)

650

Output power (dBm)

≥-3

Distance (km)

<=3

General Information

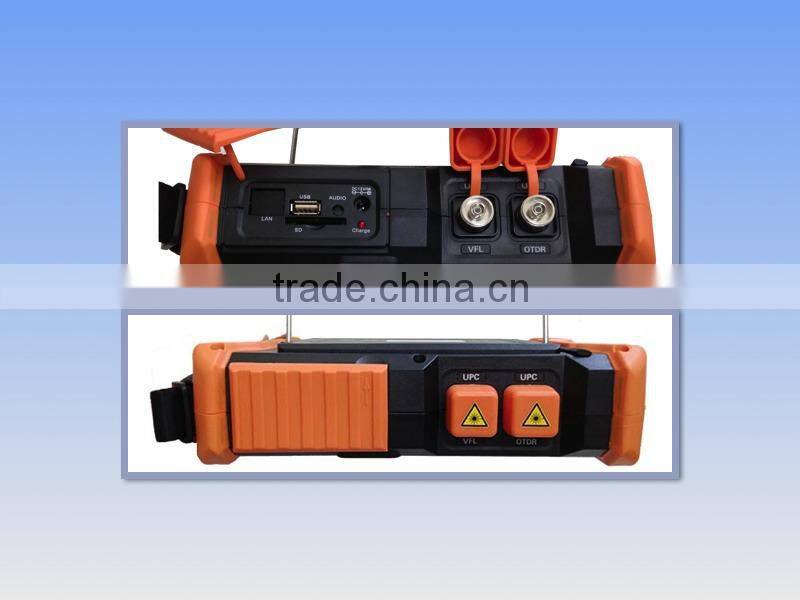

Connector

FC/UPC (Optional PC&APC)

Data Port

USB/SD card

Power

Lithium battery; continuing working duration ≥ 8 hours

Working Temperature

(°C)

-10~+50

Storage Temperature (°C)

-40~+70

Relative Humidity

0% to 95% (non condensation)

Weight (kg)

1.5

Dimension (cm)

150×235×66





Remarks:

1. The parameter in the technical specification is tested with PC Connector and  ignores the

    uncertainty caused by different fiber refractive index.

2. Test condition of Dynamic Range: Max Pulse Width and 3 minutes average time.

     That is (180km/20480ns/3min).

3. Test condition of Dead Zone: Reflection event distance is within 4Km, reflection strength < -35dB

      and Min Pulse Width.

4. This Dynamic Range is tested with filter.

5. This Dynamic Range is tested without filter.

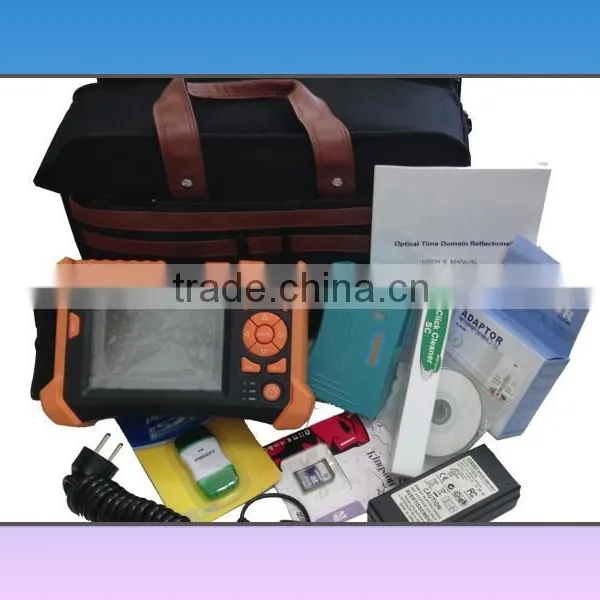

Standard Accessories

1)   Main Unit

2)   Cleaning Stick

3)   Lithium Battery

4)   Trace Manager Software CD

5)   USB cable

6)   Carrying case

7)   Calibration Certificate

8)   CE certificate

9)   Quick Reference Manual

10)        Manual

11)        Power Adapter



Ordering Information

OT6000-WD-C-P

1)   WD=Wavelength & Dynamic Range

WD1: 850/1300nm, 23/21dB.

WD2: 1310/1550nm, 32/30dB

WD3: 1310/1550nm, 34/32dB

WD4: 1310/1550nm, 36/34dB

WD5: 1310/1550nm, 38/36dB

WD6: 1310/1490/1550nm, 34/32/32dB

WD7: 1310/1490/1550nm, 38/36/36dB

WD8: 1625nm, 30dB

WD9: 1625nm, 32dB

WD10: 1625nm, 34dB

WD11: 1625nm, 36dB

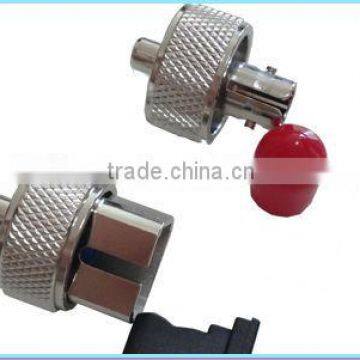

2)   C=Connector for PON port

C1: Standard FC/PC

C2: FC/APC

C3: SC/PC

C4: SC/APC

C5: ST/PC

C6: FC/SC/ST/PC

C7: FC/SC/ST/APC



3) PA=Power Adapter

PA1: USA power adapter

PA2: EU power adapter
