Specifications
1) Handheld OTDR2) Multi-wavelength avaible,1310/1490/1550/1625/1650nm
3) Large dynamic range

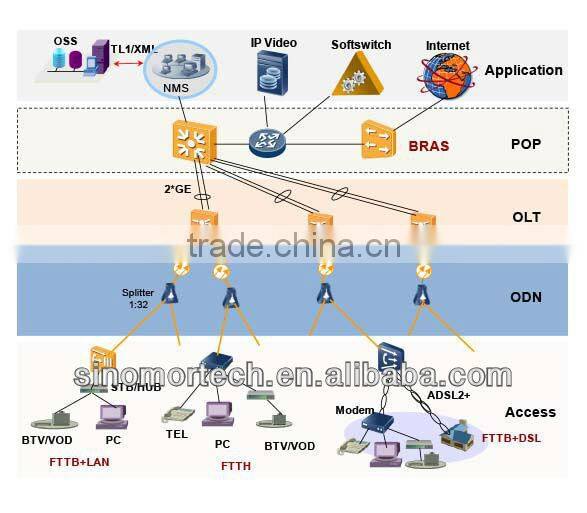

4) FTTx/MDU PON-network test

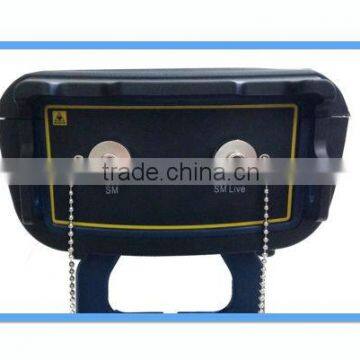

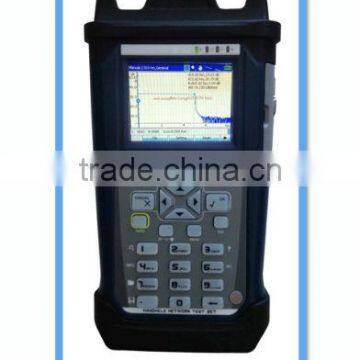

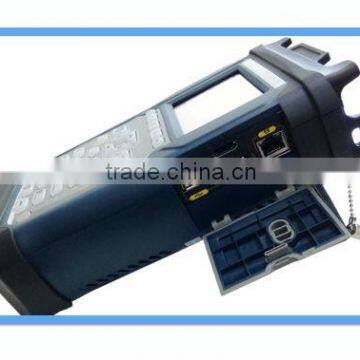

Overview
OT6200 series handheld OTDR is multi function OTDR. It provides comprehensive optical test for metro, access/FTTx, and LAN network. Also OT6200 series handheld OTDR is a lightweight, flexible and applicable for both indoor and outdoors test. It is a good choice for service providers validating at installing phase or troubleshooting at running phase.
Features
- Hanheld OTDR
- High-resolutioncolorful screen, easy to read and operate even under sunlight.
- Shockproof designed for field application.
- Easy detecting and characterizing fiber with simple and friendly keys.
- Covering all OTDR functions for whole optical link testing and maintaining.
- PON OTDR supports maximum 4 wavelengths (1310/1490/1550/1625nm) for fiber testing, and automatic switching multi-wavelength OTDR testing.
- Regular OTDR provides more flexible dynamic range: 40dB, 35dB and 30dB.
- 0.8m event dead zone and 7m attenuation dead zone for pinpoint event location.
- Support VFL function and optional optical power meter function and so on
Specification
Model | OT6200-TS | OT6200-TN | OT6200-TF | OT6200-QT | OT6200-QS |
Wavelength (nm) | 1310/1550/1625 | 1310/1490/1550 | 1310/1550/1650 | 1310/1490/1550/1625 | 1310/1490/1550/1650 |
Dynamic Range (dB) | 39/37/38 | 39/37/37 | 39/37/38 | 39/37/37/38 | 39/37/37/38 |
Pulse Width (ns) | 3-20000 | 3-20000 | 3-20000 | 3-20000 | 3-20000 |
Event Dead Zone (m) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
Attenuation Dead Zone (m) | 7/7/7 | 7/7/7 | 7/7/7 | 7/7/7/7 | 7/7/7/7 |
Linearity (dB/dB) | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
Loss Threshold (dB) | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
Loss Resolution (dB) | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 |
Sampling Resolution (m) | 0. 125-1 | 0. 125-1 | 0. 125-1 | 0. 125-1 | 0. 125-1 |
Sampling Points | 256K | 256K | 256K | 256K | 256K |
Distance Uncertainty (m) | ±(0.75+0.0010%×distance + sampling resolution) | ||||
Distance Range (km) | 180 | 180 | 180 | 180 | 180 |
Typical Real-time Refresh (Hz) | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
Memory Capacity | 500 traces | 500 traces | 500 traces | 500 traces | 500 traces |
Measurement Time | 10s-180m, user defined | 10s-180m, user defined | 10s-180m, user defined | 10s~-80m, user defined | 10s-180m, User specify |
VFL Output Power (dBm) | +3 | +3 | +3 | +3 | +3 |
General Information | |||||
Temperature | Operating: -10°C to 50°C; storage: -40°C to 70°C | ||||
Relative Humidity | 0% to 95%(non-condensing) | ||||
Size (mm) | 80x135x250 | ||||
Weight (kg) | 1.1 | ||||
Power | Li-lon batteries 8 hours of continuous operation as per Bellcore TR-NWT-001138 | ||||

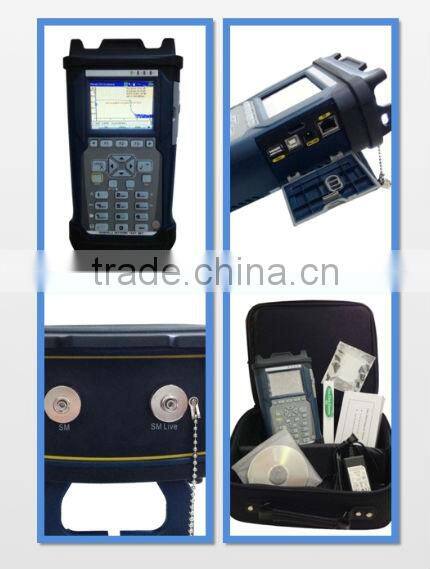

Standard Accessory
Main Frame | OT6200-DH | Dual-wavelength 1310/1550nm OTDR tester, dynamic range 40/39dB. |
OT6200-DM | Dual-wavelength 1310/1550nm OTDR tester, dynamic range 35/34dB. | |
OT6200-DL | Dual-wavelength 1310/1550nm OTDR tester, dynamic range 30/28dB. | |
OT6200-TS | Tri-wavelength 1310/1550/1625nm PON OTDR tester, dynamic range 39/37/38dB. | |
OT6200-TN | Tri-wavelength 1310/1490/1550nm PON OTDR tester, dynamic range 39/37/37dB. | |
OT6200-TF | Tri-wavelength 1310/1550/1650nm PON OTDR tester, dynamic range 39/37/38dB. | |
OT6200-QT | Qua-wavelength 1310/1490/1550/1625nm PON OTDR tester, dynamic range 39/37/37/38dB. | |
OT6200-QS | Qua-wavelength 1310/1490/1550/1650nm PON OTDR tester, dynamic range 39/37/37/38dB. | |
Battery |
| One 1 parallel 3 series Lithium polymer rechargeable battery for OTP6100, 10.8V. |
Power Adapter |
| One 24V AC/DC, power adapter |
Power Cable |
| One 2-mete-long power cable. |
Disc |
| One disc. |
Package |
| One package. |
Fiber Jumper |
| One FC/FC port, single-mode, simplex, 9/125, 3-meter-long. |
VFL Function |
| OTDR red light VFL testing option. |
Optional Configuration | ||
Functional Option | OPM Function | OTDR optical power PM testing option. |
OLS Function | OTDR single-mode optical source testing option. | |
IOTA | Intelligent fiber link topology analyzer option. | |
INT | Intelligent network performance tool option. | |
