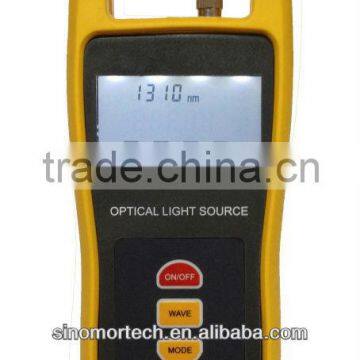

LS6202 1310/1550/850/1300/nm Handheld Optical Laser SourceUS$ 50 - 500MOQ: 1 Piece

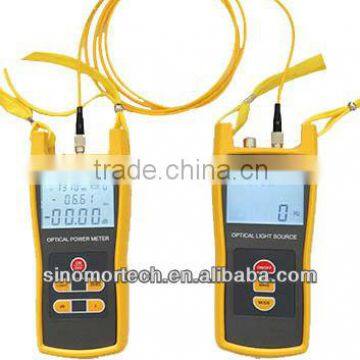

LS6202 series optical light source is designed to work with PM6102 series optical power meter.
LS6202 series optialc light source have Max quad-wavelegnth output, large LCD screen,10 minutes auto-off function, low battery indication, and 3 types of modulation.
Together with PM6102 optical power meter,they combine a fast,stable and cost effective test solution.
Features
- Optical light source
- Large LCD screen
- Max 4 wavelength output
- Stable output power
- 10 minutes auto-off function
Specifications
Model | LS6202 | ||
Wavelengths (nm) | 1310/1550 | 850/1300 | 850/1300/1310/1550 |
Emitter Type | FP-LD (optional LED for MM) | ||
Typical Output Power (dBm) | -6~-7 (-19~-20dBm for LED) | ||
Spectral Width (nm) | ≤10 | ||
Output Stability (dB) | ±0.05@15mins ±0.1dB/ 8hours | ||
Modulation (Hz) | CW, 270,1K, 2K | ||
Optical Connector | FC/PC | ||
Power Supply | AA (3pcs) | ||
Working Time (h) | 45 | ||
Operating Temperature (°C) | -10~+60 | ||
Storage Temperature (°C) | -25~+70 | ||
Dimension (mm) | 175x82x33 | ||
Weight (g) | 295 | ||
Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Battery
4) Carrying Bag
5) Manual
Ordering Information
LS6202-L-C-W | ||
Laser (L) | Connector (C) | Wavelength (W) |
L1: FP-LD (SM) L2: LED 50/125um (MM) L2: LED 62.5/125um (MM)
| C1: Standard FC/PC C2: Interchangeable FC/SC/ST/PC C3: Interchangeable FC/SC/ST/APC
| W1: 1310/1550nm W2: 850/1300nm W3: 1310/1490/1550nm W4: 1310/1550/1625nm W5: 850/1300/1310/1550nm W6: 1310/1490/1550/1625nm W7: Others |
1. Standard warranty is 18 months.
2. For extended warranty,it is also available with additional and reasonable cost.
3. Customized products are also available as per your specific request.
1) Optical Light Source +cleaning cotton stick+manual+battery+carrying pouch+carton box.
