Specifications
1. Handheld light source2. 7dB adjustable output power
3. Low power indication
4. Max 4 wavelength output
Overview

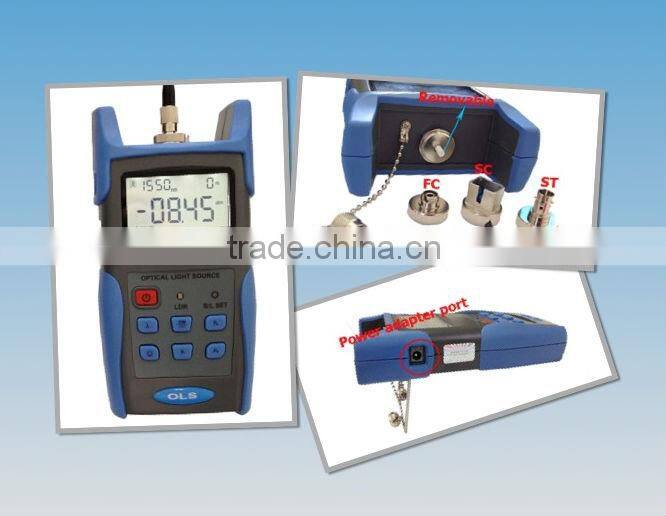

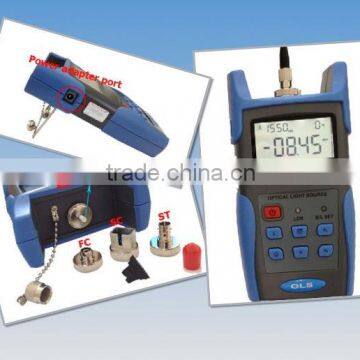

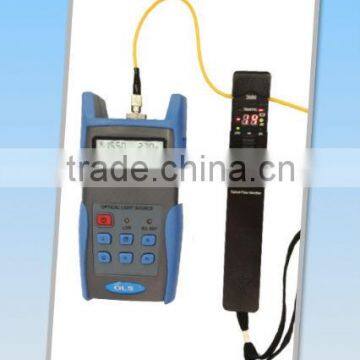

This LS6206 series handheld light source is designed to work together PM6106 series optical power meter.
When working with PM6106 series optical power meter, they can realize the auto wavelength identification and auto frequency identification.
The output power of LS6206 series handheld light source is adjustable, which provides better assistance to customers’ work.
With 3 alkaline battery,LS6205 series handheld light source can continously work 45 hours.
Features
- Max 4 wavelength output in one unit.
7dB output power adjustable range
Tone generation, 270HZ, 330HZ, 1kHZ and 2kHZ
- Intelligent backlight control which can be adjusted manually or automatically according to ambient brightness
- Up to 45 working hours

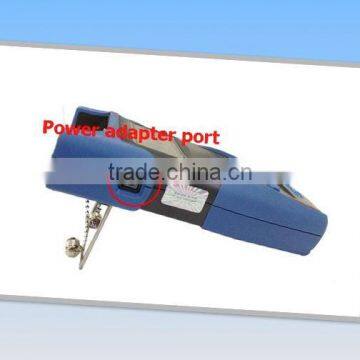

- External AC adapter
- Low battery indication
Specification
Model |
LS6206 |
Operating Wavelength (nm) |
850/1300/1310/1550 |
Emitter |
FP-LD |
Connector |

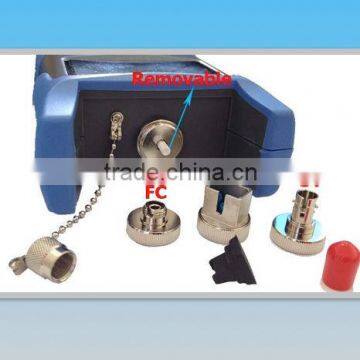

Interchangeable FC/SC/ST |
Output Power (dBm) |
-5~-12 |
Adjustable Output Power Step (dBm) |
<0.5 |
Adjustable Output Power Range (dB) |
≥5 |
Stability (dB, 30min@20°C) |
0.15 |
Modulation (Hz) |
CW, 270,330,1K,2K |
Battery |
AA (3pcs) |
Power Adapter (V) |
8.4 |
Operating Time (h) |
45 |
Operation Temperature (°C) |
-10~+60 |
Storage Temperature (°C) |
-25~+70 |
Dimension (mm) |
175x90x44.5 |
Weight (g) |
263(including batteries) |
Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Battery
4) Carrying Bag
5) Manual
6) Power Adapter
Ordering Information
|
LS6206-L-C-W-P
| |||
|
Laser (L) |
Connector Type (C) |
Wavelength (W) |
Power Adapter (PA) |
|
L1: LD (for SM) L2: LED (50/125um for MM) L2: LED (62.5/125um for MM)
|
C1: Standard FC/SC/ST/PC C2: interchangeable FC/SC/ST/APC
|
W1: 1310/1550nm W2: 850/1300nm W3: 1310/1490/1550nm W4: 1310/1550/1625nm W5: 850/1300/1310/1550nm W6: 1310/1490/1550/1625nm
|
P1: USA power adapter P2: EU power adapter
|
