Help CenterLS6202 1310/1550/850/1300/nm Handheld Optical Laser Source
Related Products
-
LS6200 Mini Optical Light Source With Dual Wavelength FC/SC/ST ConnecotrUS$ 60 - 100MOQ: 1 Piece -
LS6200 Pocket Size Optical Laser Source With FC/SC/ST ConnectorUS$ 60 - 100MOQ: 1 Piece
-
LS6206 Optical Light Source 850/1300/1310/1490/1550/1625nmUS$ 100 - 500MOQ: 1 Piece
-
LS6200 Optical Light Source 1310/1550nm FC/SC/ST ConnectorUS$ 60 - 100MOQ: 1 Piece
-
LS6200 Optical Laser Source 850/1300/1310/1550nm FC/SC/ST ConnectorUS$ 60 - 100MOQ: 1 Piece

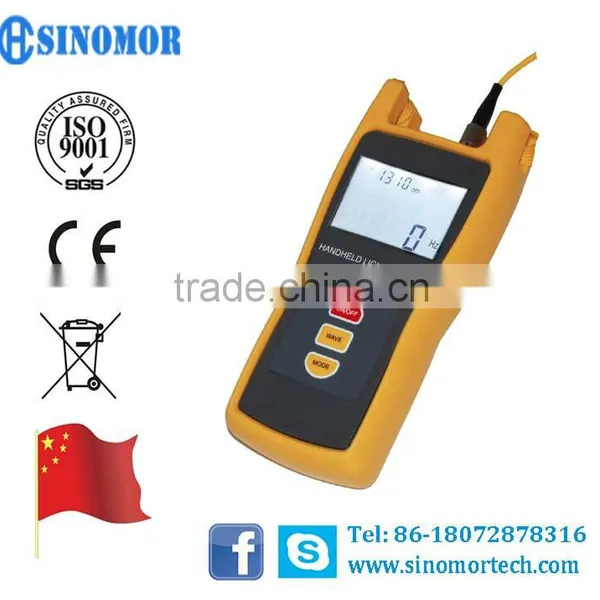

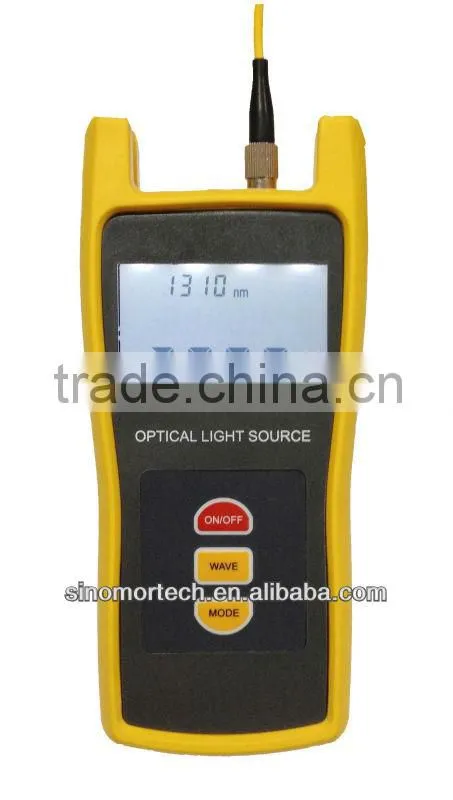

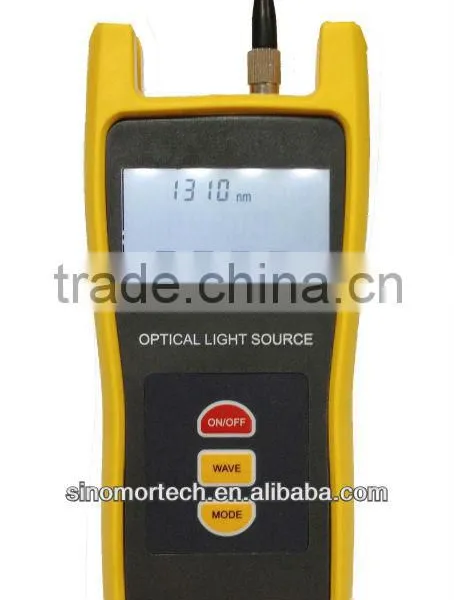

LS6202 series handheld optical laser source is designed to work with PM6102 series handheld optical power meter.
LS6202 series handheld optialc laser source have Max quad-wavelegnth output, large LCD screen,10 minutes auto-off function, low battery indication, and 3 types of modulation.

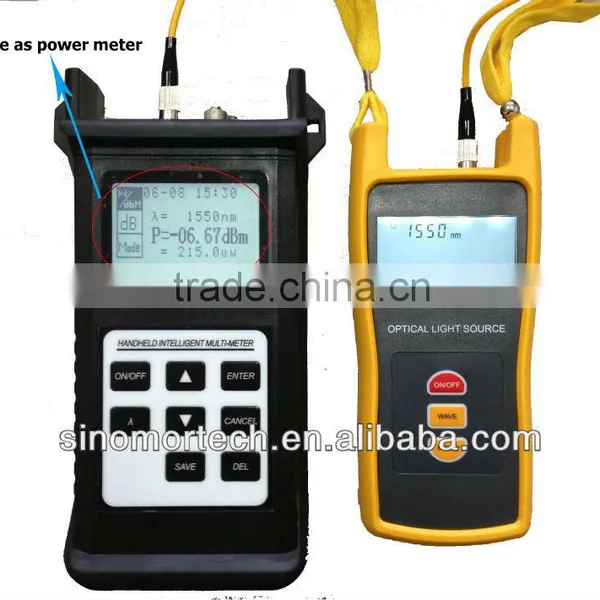

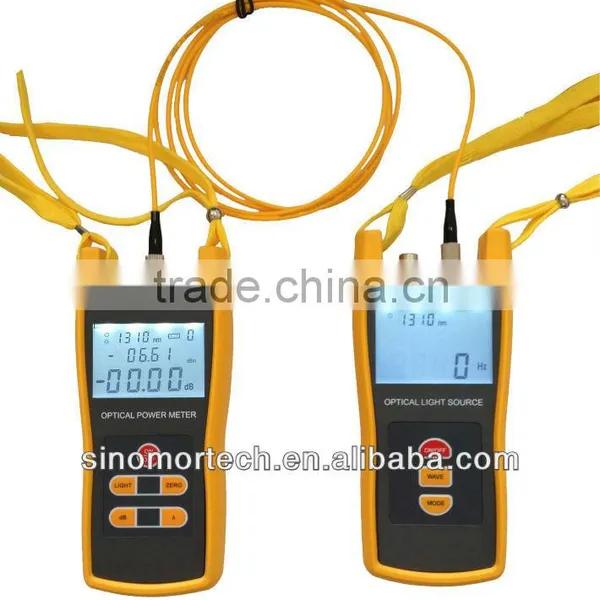

Together with PM6102 handheld optical power meter,they combine a fast,stable and cost effective test solution.
Features
- Max 4 wavelength output
- Large LCD screen
- Stable output power
-
10 minutes auto-off function
Specifications
Type |
LS6202 |
||||
Wavelengths (nm) |
1310/1550 |
850/1300 |
1310/1490/1550 |
850/1300/1310/1550 |
1310/1490/1550/1625 |
Emitter Type |
FP-LD (optional LED for MM) |
||||
Typical Output Power (dBm) |
-6~-7 (-19~-20dBm for LED) |
||||
Spectral Width (nm) |
≤10 |
||||
Output Stability (dB) |
±0.05@15mins; ±0.1@ 8hours |
||||
Modulation (Hz) |
CW, 270,1K, 2K |
||||
Optical Connector |
SC/FC/ST |
||||
Power Supply |
AA (3pcs) |
||||
Working Time (h) |
45 |
||||
Operating Temperature (°C) |
-10~+60 |
||||
Storage Temperature (°C) |
-25~+70 |
||||
Dimension (mm) |
175x82x33 |
||||
Weight (g) |
295 |
||||
Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Battery
4) Carrying Bag
5) Manual
Ordering Information
LS6202-L-C-W | ||
Laser (L) |
Connector (C) |
Wavelength (W) |
|
L1: FP-LD (SM) L2: LED 50/125um (MM) L2: LED 62.5/125um (MM)
|

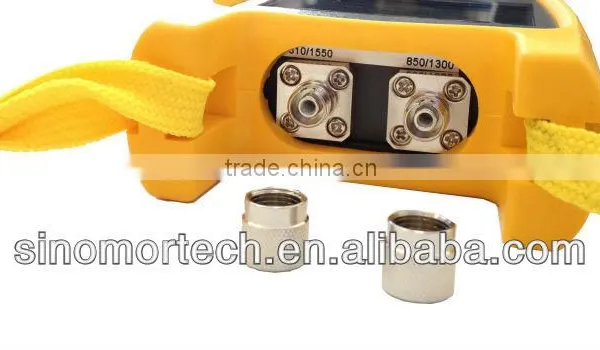

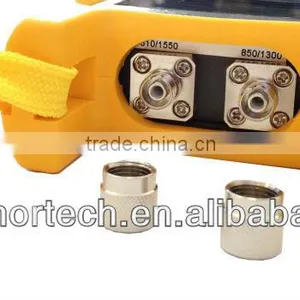

C1: Standard FC/PC C2: Interchangeable FC/SC/ST/PC C3: Interchangeable FC/SC/ST/APC
|
W1: 1310/1550nm W2: 850/1300nm W3: 1310/1490/1550nm W4: 1310/1550/1625nm W5: 850/1300/1310/1550nm W6: 1310/1490/1550/1625nm W7: 1310/1490/1550/1610nm W8: Other |
1. Standard warranty is 18 months.
2. Extended warranty is available with additional and reasonable cost.
3. Customized products are also available as per your specific requirement.
1) Fiber Optic Light Source +cleaning cotton stick+manual+battery+carrying pouch+carton box.
