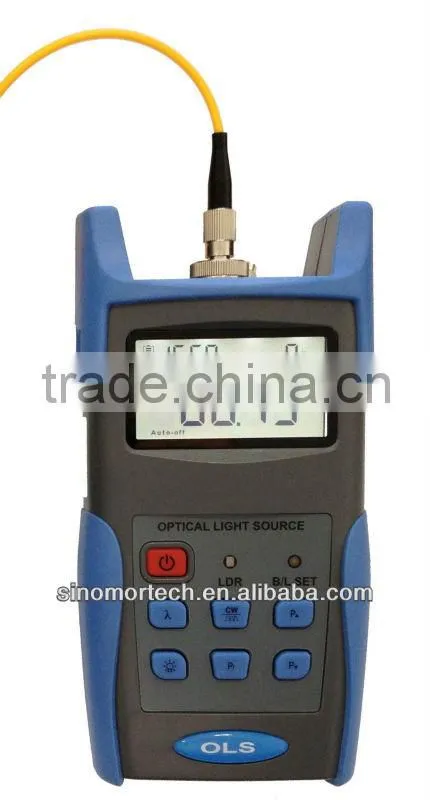

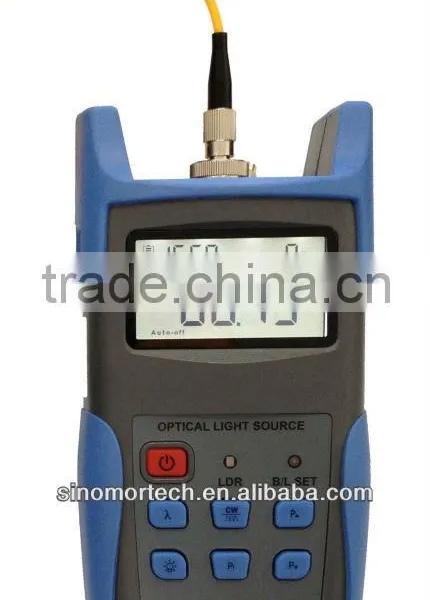

Help CenterLS6206 Fiber Optic Laser Source 650/850/1300/1310/1490/1550/1610/1625nm
Related Products
-
LS6202 1310/1550/850/1300/nm Handheld Optical Laser SourceUS$ 50 - 500MOQ: 1 Piece -
LS6200 Mini Optical Light Source With Dual Wavelength FC/SC/ST ConnecotrUS$ 60 - 100MOQ: 1 Piece
-
LS6200 Pocket Size Optical Laser Source With FC/SC/ST ConnectorUS$ 60 - 100MOQ: 1 Piece
-
LS6206 Optical Light Source 850/1300/1310/1490/1550/1625nmUS$ 100 - 500MOQ: 1 Piece
-
LS6200 Optical Light Source 1310/1550nm FC/SC/ST ConnectorUS$ 60 - 100MOQ: 1 Piece
Specifications
1. Fiber optic laser source2. 1~4 wavelength output
3. Adjustable output power
5. FC/SC/ST connector
5. 45 working hours
Overview

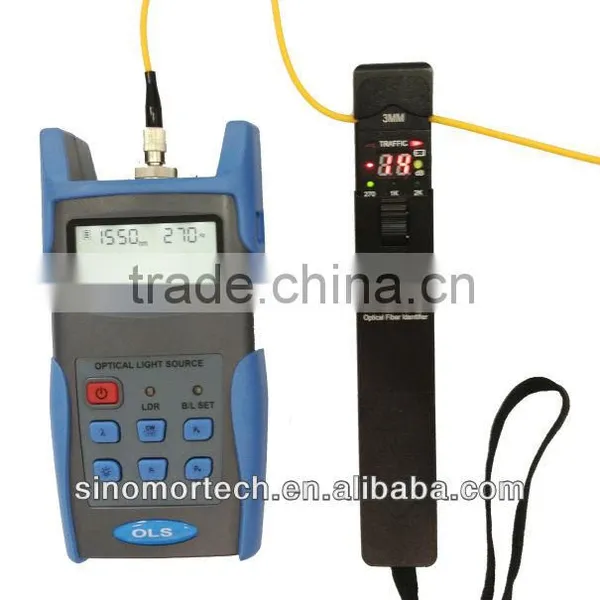

LS6206 series fiber optic laser source is designed to work together PM6106 series fiber optic power meter. When working with PM6106 series fiber optic power meter , they can realize the auto wavelength identification and auto frequency identification.
Compared with other fiber optic laser source(LS6200/LS6202), LS6206 series fiber optic laser source has the special features:
1) adjustable output power
2) auto test together with PM6106
3) powerd by power adapter
Features
- Max 4 wavelength output in one unit
7dB output power adjustable range
Tone generation, 270HZ, 330HZ, 1kHZ and 2kHZ
- Intelligent backlight control which can be adjusted manually or automatically according to ambient brightness
- Up to 45 working hours

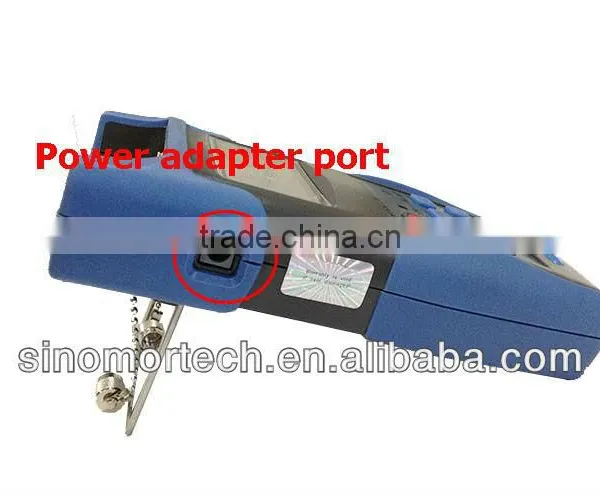

- External AC adapter
- Low battery indication
Specification
Model |
LS6206 |
Operating Wavelength (nm) |
650/850/1300/1310/1490/1550/1610/1625 |
Emitter |
FP-LD and LED |
Connector |
Interchangeable FC/SC/ST |
Output Power (dBm) |
-5~-12 |
Adjustable Output Power Step (dBm) |
<0.5 |
Adjustable Output Power Range (dB) |
≥5 |
Stability (dB, 30min@20°C) |
0.15 |
Modulation (Hz) |
CW, 270,330,1K,2K |
Battery |
AA (3pcs) |
Power Adapter (V) |
8.4 |
Operating Time (h) |
45 |
Operation Temperature (°C) |
-10~+60 |
Storage Temperature (°C) |
-25~+70 |
Dimension (mm) |
175*90*44.5 |
Weight (g) |
263(including batteries) |
Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Battery
4) Carrying Bag
5) Manual
6) Power Adapter
Ordering Information
|
LS6206-L-C-W-P
| |||
|
Laser (L) |
Connector Type (c) |
Wavelength (W) |
Power Adapter (PA) |
|
L1: LD (for SM) L2: LED (50/125um for MM) L2: LED (62.5/125um for MM)
|
C1: Standard FC/SC/ST/PC C2: interchangeable FC/SC/ST/APC
|
W1: 1310/1550nm W2: 850/1300nm W3: 1310/1490/1550nm W4: 1310/1550/1625nm W5: 850/1300/1310/1550nm W6: 1310/1490/1550/1625nm W7: others
|
PA1: USA power adapter PA2: EU power adapter
|
