Common Rail System Tester CRS-3200

Specifications

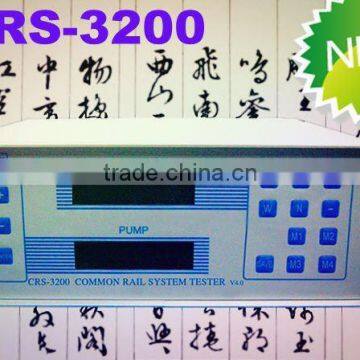

CRS-3200 is a low cost common rail system tester. It targets the CR systems with a Bosch CP1/CP2/CP3, Delphi CRSP, Denso HP3/HP4 and Siemens DCP pump and one CR injector with either solenoid or piezo technologies

A standard high pressure pump test bench with a CR system tester CRS-3200 will fulfill most tasks for repairing a CR system and the components, such as to test an injector fuel injection and return quantities, nozzle spray atomization, and with the optional DRV valves to test pump condition by measuring the fuel flow at different rail pressures.

CRS-3200 application

Design Features

Simulate signals to drive a CR pump, one CR injector, plus 3 DRV valves

         Pump control

Two independent channels of pump regulation valve control signals

The second channel is capable to drive 3 DRV valves (optional), to test pump capacity by measure the high pressure flow at different pump speeds and rail pressures.

Monitoring fuel rail pressure

Injector control

Dual drive outputs

Piezo injector made by Siemens

Solenoid injector

        High voltage drive for Bosch/Denso injectors

        Low voltage drive for Delphi injectors

         Adjustable frequency and pulse width

        Software based over-pressure protection

        Short circuit protection for solenoid and piezo driving signals

        Rich accessories, ready to test Bosch, Denso, Delphi and Siemens injectors and pumps

New Function

     Four memory keys have been added to the keypad to allow user to save and retrieve predefined parameters for four test cases.
