Home > Products > Common Rail Equipment > Common Rail System Tester
Common Rail System Tester
- Beijing
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | INJECTRONIX | |
| Model Number | CRS-4000 | Warranty | 1 Years |
Product Description
Specifications

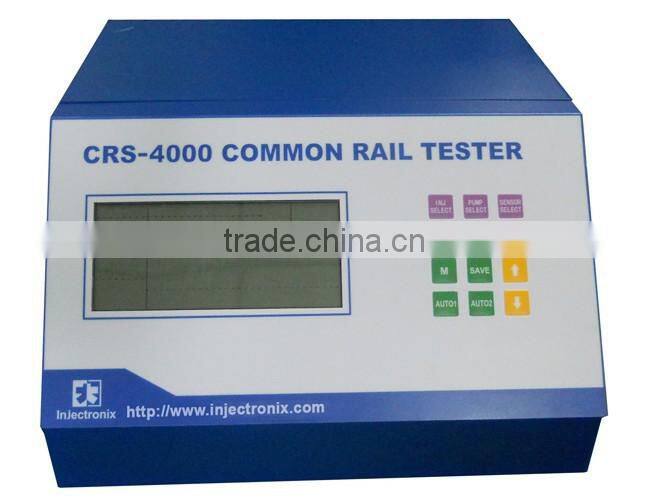

CRS-4000 is a cost-effective,modular designed equipment to test all kinds of diesel common rail fuel injection systems,common raFeatures:
CR Injector Drivers:
* 6 solenoid injectors
** High voltage for Bosch, Denso injectors
** Low voltage for Delphi injectors
* 6 piezoelectric injectors, made by Siemens and Bosch (optional module)
* Short circuit protection for both solenoid and piezo injector drivers
CRS-4000 Applications

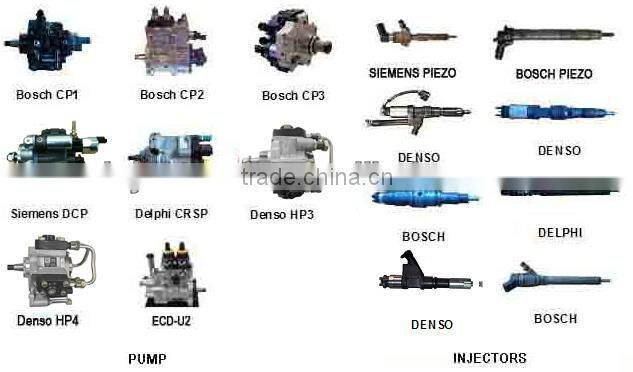

CR Pump Drivers:
* Multiple independent PWM (Pulse Width Modulation) output channels to drive pump solenoids
** Testing pumps with single regulation valve
* Bosch CP1/CP2/CP3
* Delphi CRSP
* Denso HP3/HP4
** Testing Siemens DCP pump with two regulation valves
** Drive 3 DRVs for testing pump capability
* 2 special output channels synchronous with pump speed to drive the two control solenoids on Denso HP0 (ECD-U2)pump (optional module)
Fuel Rail Pressure Sensor
* Pre-calibrated data for Bosch, Delphi, Denso pressure sensors
* Automatic (close-loop)rail pressure control
* Software based over-pressure protection
User Interface
* Small key pad
* Large LCD screen
Others
* One year manufacture warranty
* Injector and pump test procedure and database, off-line
* DRV adaptor for pump flow rate test (Optional)
* Rich accessories
