Common Rail System Tester

Name: Common Rail System Tester
Brand: injectronix
SKU: 131769167
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

injectronix

Model Number:

CRS-4000

Injectronix Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name injectronix

Model Number CRS-4000

Usage Auto Testing Machine

Features

Modular design to tailor customer's application
CR Injector Drivers
- 6 solenoid injectors
  - High voltage for Bosch, Denso injectors
  - Low voltage for Delphi injectors
- 6 piezoelectric injectors, made by Siemens and Bosch
- Short circuit protection for both solenoid and piezo injector drivers

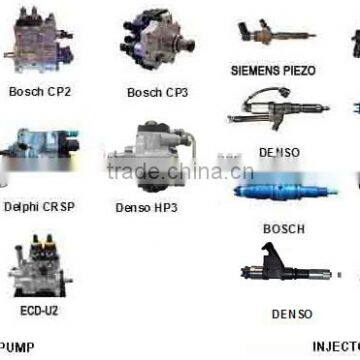

CR Pump Drivers:
- Multiple independent PWM (Pulse Width Modulation) output channels to drive pump solenoids
  - Testing pumps with single regulation valve
    - Bosch CP1/CP2/CP3
    - Delphi CRSP
    - Denso HP3/HP4
  - Testing Siemens DCP pump with two regulation valves
  - Drive 3 DRVs for testing pump capability
  - 2 special output channels for testing Denso HP0 (ECD-U2) pump
Fuel Rail Pressure Control
- Pre-calibrated data for Bosch, Delphi, Denso pressure sensors
- Automatic (close-loop) rail pressure control
- Software based over-pressure protection

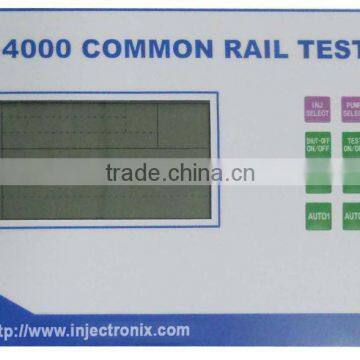

User Interface One year manufacture warranty
- Small key pad

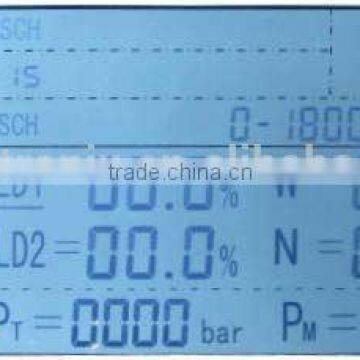

- Large LCD screen
Injector and pump test plans database on a CD
DRV adaptor for pump flow rate test (Optional)
Rich accessories
