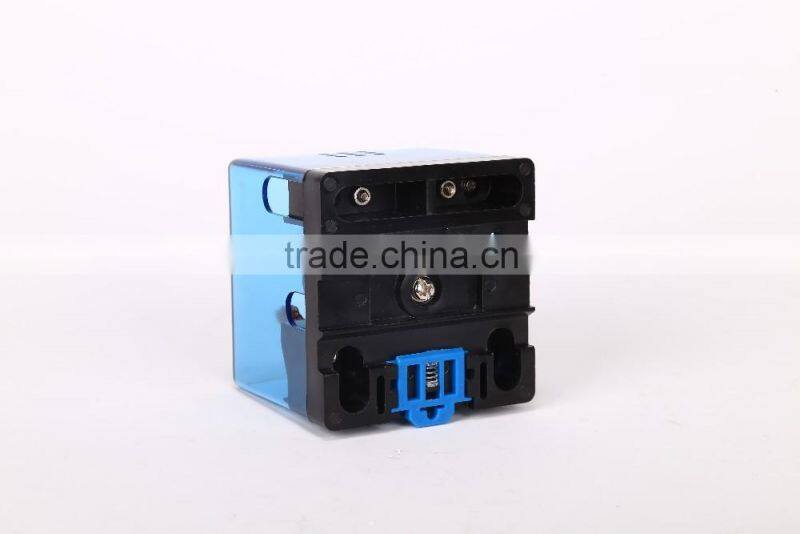

JQX-62F 1Z 80A Mini Industrial Power Relay With Opening and Dust-proof Type Power Relay

JQX-62F 1Z 80A Mini Industrial Power Relay With Opening and Dust-proof Type Power Relay thumbnail-1
JQX-62F 1Z 80A Mini Industrial Power Relay With Opening and Dust-proof Type Power Relay thumbnail-2
JQX-62F 1Z 80A Mini Industrial Power Relay With Opening and Dust-proof Type Power Relay thumbnail-3
JQX-62F 1Z 80A Mini Industrial Power Relay With Opening and Dust-proof Type Power Relay photo-1

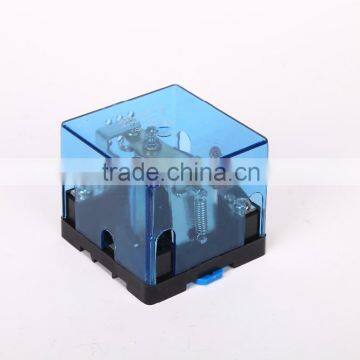

JQX-62F 1Z 80A Mini Industrial Power Relay With Opening and Dust-proof Type Power Relay photo-2

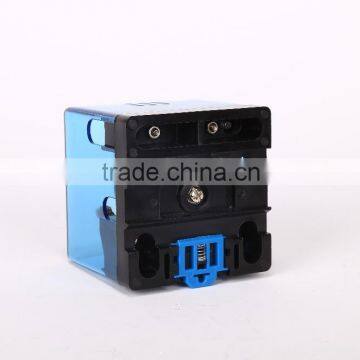

JQX-62F 1Z 80A Mini Industrial Power Relay With Opening and Dust-proof Type Power Relay photo-3
US$ 4.2 - 5.3 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
FUJI
Model Number:
JQX-62F 1Z
Contact Supplier Request Quote Chat Now
Zhejiang Fushi Relay Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name FUJI
Model Number JQX-62F 1Z
Theory Electromagnetic Relay
Usage General Purpose
Size Miniature
Protect Feature Sealed
Contact Load High Power
Product Description

 Technical Data:

Contact Specification

Contact form

1Z, 1H, 1D

Contact resitance

≤100MΩ(1A 6VDC)

Contact material

AgCdO AgSnO2

Contact capacity

80A 250VAC/30VDC



Technical Specification

Insulation resistance

≥1000MΩ(500VDC)

Dielectric strength

Between coil and contacts≥2500VAC 1min

Between open contacts≥1200VAC 1min

Operate/Release time

≤40ms/25ms

Terminal type

Screw mounting



Coil Specification

Rated coil power

DC2.0W / AC4.0VA



DC Coil Data

Nominal voltage

Operate voltage

Release voltage

Coil resistance

VDC

VDC

VDC

Ω±10%

6

4.8

0.6

18

12

9.6

1.2

70

24

19.2

2.4

290

48

38.4

4.8

1150

60

48

6

1800

110

88.0

11.0

6050



AC Coil Data

Nominal voltage

Operate voltage

Release voltage

Coil resistance

6

4.8

1.8

9

12

9.6

3.6

36

24

19.2

7.2

144

48

38.4

14.4

576

110

88.0

36.0

3025

220/240

176.0

72.0

12000/14400

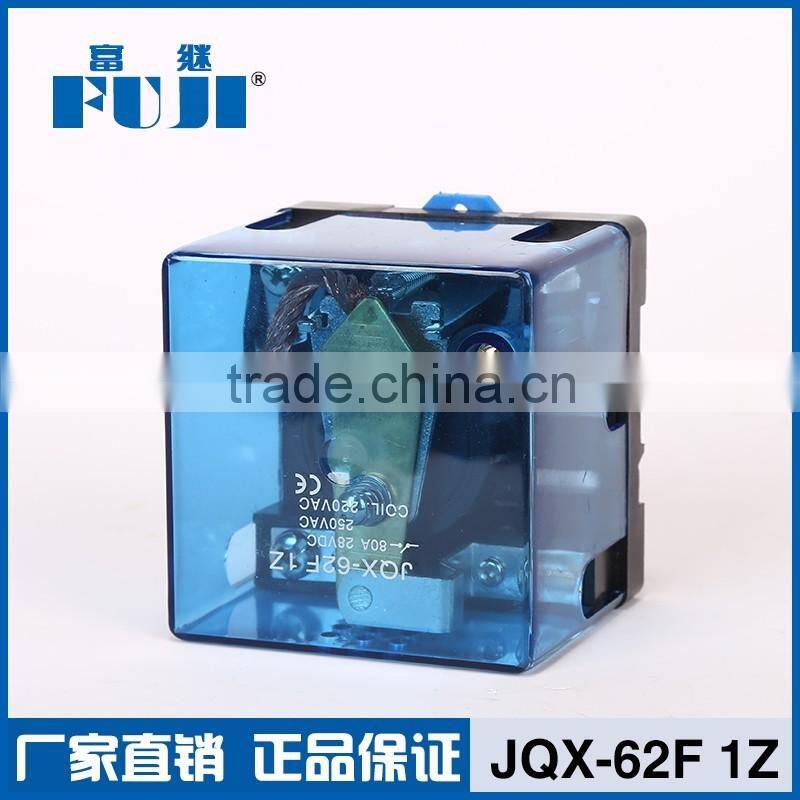

High Quality 1Z 80A Power Relay JQX-62F RelayJQX-62F 1Z 80A Mini Industrial Power Relay With Opening and Dust-proof Type Power Relay



JQX-62F 1Z 80A Mini Industrial Power Relay With Opening and Dust-proof Type Power Relay

Packaging & Shipping



Packaging Details:

standard export carton box

Delivery Detail:

15-25 days after confirm the order

 JQX-62F 1Z 80A Mini Industrial Power Relay With Opening and Dust-proof Type Power Relay
