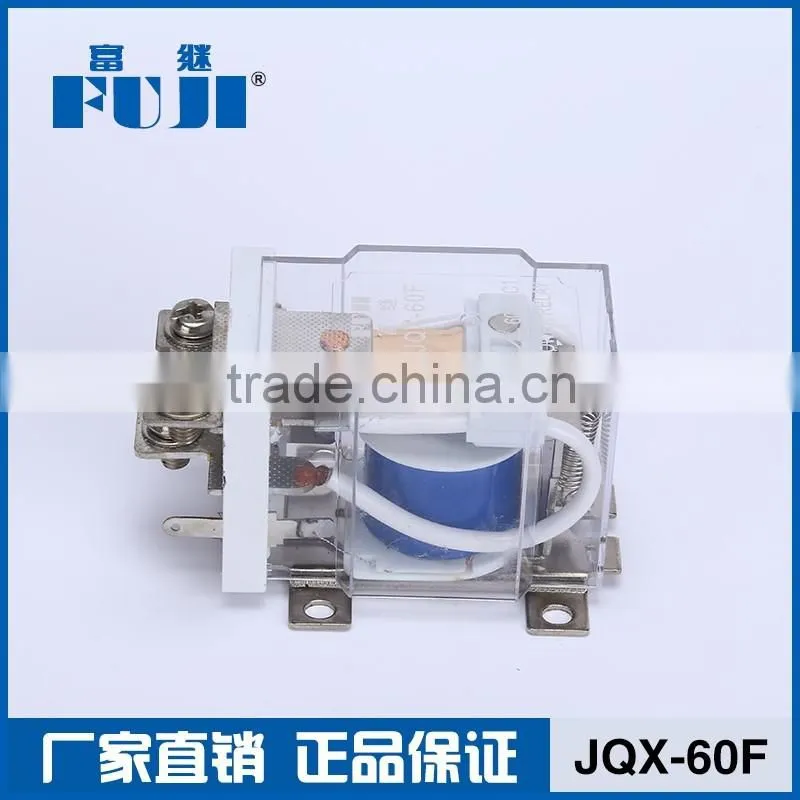

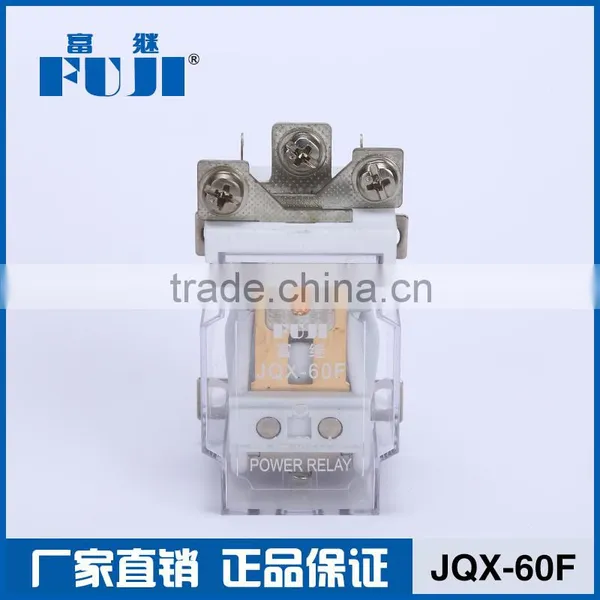

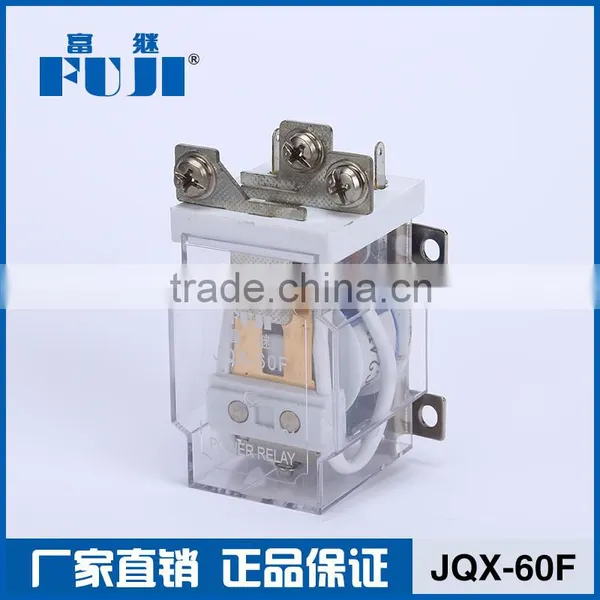

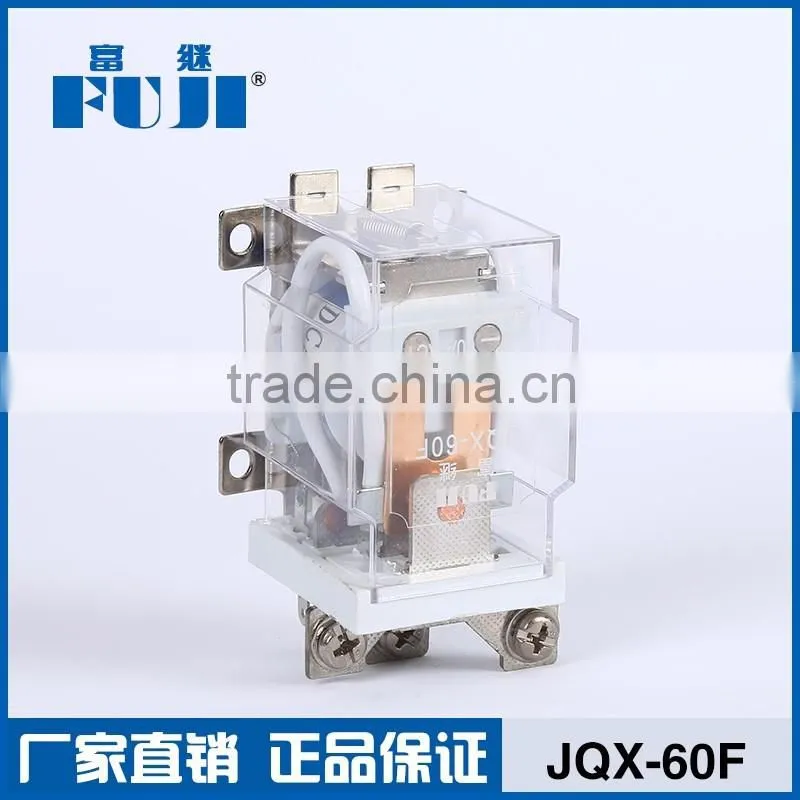

12V 60A General Purpose Relay JQX-60F Series 1Z With CE

Name: 12V 60A General Purpose Relay JQX-60F Series 1Z With CE
Brand: FUJI
SKU: 131766877
Availability: InStock

US$ 2.8 - 4.9 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

FUJI

Model Number:

JQX-60F 1Z

Zhejiang Fushi Relay Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name FUJI

Model Number JQX-60F 1Z

Theory Electromagnetic Relay

Usage General Purpose

Size Miniature

Protect Feature Other, Sealed, Epoxy

Contact Load Low Power

Product Description

Technical Data

Dimension		77.2mm46mm46mm
Contact	Form	1Z,1H,1D
	Rated Load (Resistive Leakage)	60A
	Max.Switching Voltage	240VAC / 28VDC
	Contact resistance (initial)	≤100mΩ
	Material	Silver alloy
	Electric life	≥10⁵
	Machine life (300 times/min)	≥10⁷
Max. allowed voltage (23℃)		DC:≤75%×rated voltage
		AC:≤80%×rated voltage
Release voltage ( 23℃ )		DC:≥10%×rated voltage
		AC:≥30%×rated voltage
Maximum allowed voltage ( 23℃ )		110%×rated voltage
Norminal voltage	DC	6V-220V
	AC	6V-380V
Coil power	DC	DC:2.0W
	AC	AC:8.6VA
Operation time		≤25ms
Release time		≤15ms
Dielectric Strength	Between contacts	1500VAC/1min(leakage current:1mA)
	Between contact and coil	2500VAC/1min(leakage current:1mA)
Insulation resistance		≥200mΩ(500VDC)
Ambient temperature		-25℃~55℃
Ambient humidity		45%-75%RH
Atmospheric pressure		86-106KPa
Resistance stamping		10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance		10-55Hz (double amplitude: 1.5mm)
Installation Model PCB		Bolted
Weight		Approx.160g
Package	Inner box quantity	bubble box /10 pcs
	Carton Quantity	bubble boxes 100pcs /Carton
	Meas	402×288×370mm;
	Weight	N.W.16.82KG/Carton,G.W.17.32KG/Carton
