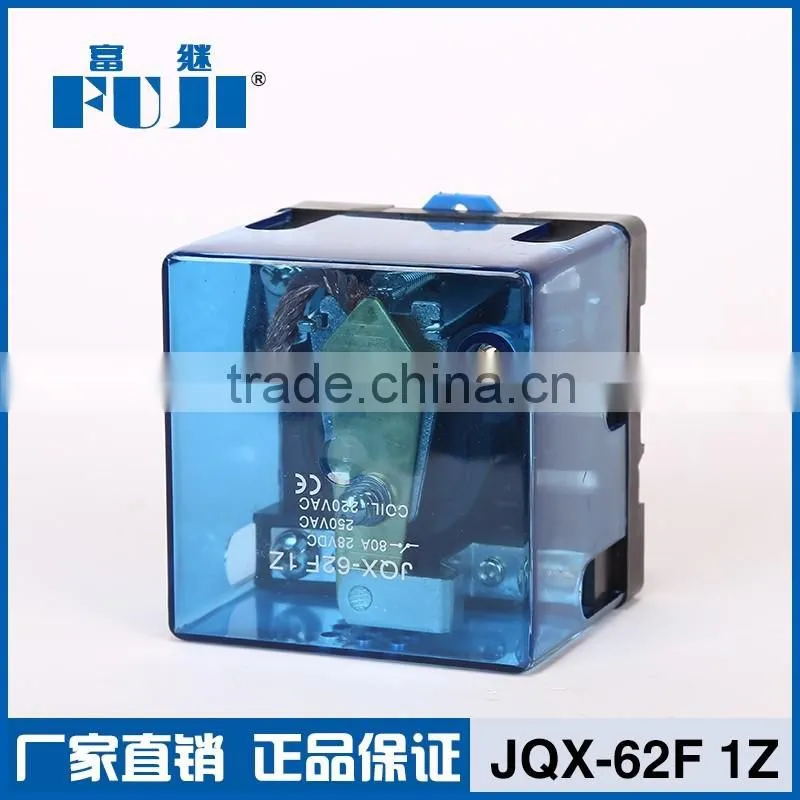

China manufacturer JQX-62F-1Z High Power Relay 80A Power Relay

Contact Specification

Contact form

1Z, 1H, 1D

Contact resitance

≤100MΩ(1A 6VDC)

Contact material

AgCdO AgSnO2

Contact capacity

80A 250VAC/30VDC

Technical Specification

Insulation resistance

≥1000MΩ(500VDC)

Dielectric strength

Between coil and contacts≥2500VAC 1min

Between open contacts≥1200VAC 1min

Operate/Release time

≤40ms/25ms

Terminal type

Screw mounting

Coil Specification

Rated coil power

DC2.0W / AC4.0VA

DC Coil Data

Nominal voltage

Operate voltage

Release voltage

Coil resistance

VDC

VDC

VDC

Ω±10%

6

4.8

0.6

18

12

9.6

1.2

70

24

19.2

2.4

290

48

38.4

4.8

1150

60

48

6

1800

110

88.0

11.0

6050

AC Coil Data

Nominal voltage

Operate voltage

Release voltage

Coil resistance

6

4.8

1.8

9

12

9.6

3.6

36

24

19.2

7.2

144

48

38.4

14.4

576

110

88.0

36.0

3025

220/240

176.0

72.0

12000/14400

Packaging Details:

standard export carton box

Delivery Detail:

15-25 days after confirm the order
