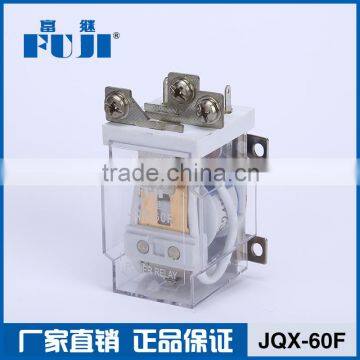

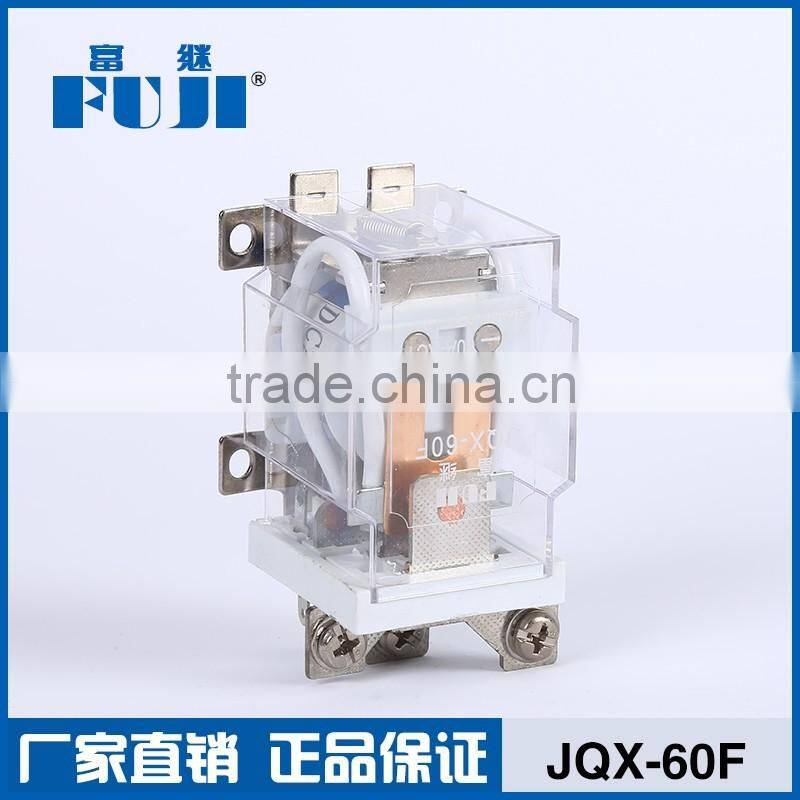

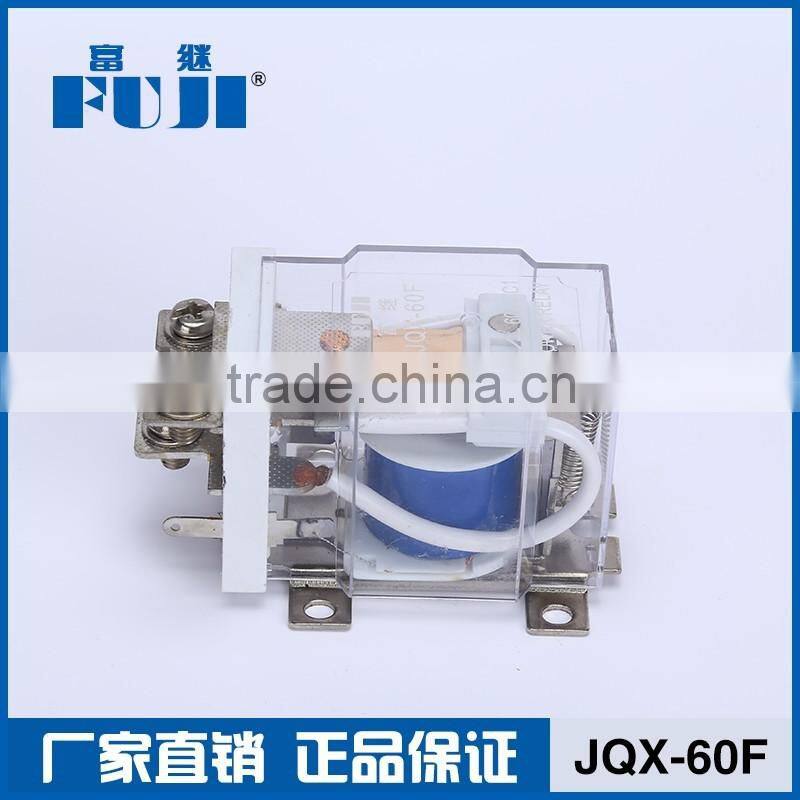

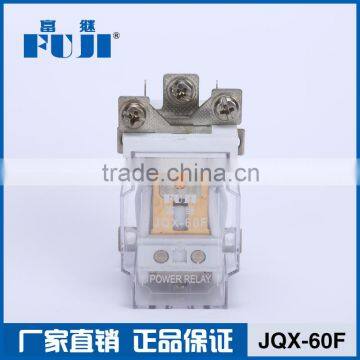

Professional Supplier JQX-60F 1Z 60A Relay Manufacturer With High Quality

FOB Price

USD $2.8 - $4.9 / Piece

10 Pieces(Min.Order)

Product Details

Technical Data

Dimension		77.2mm46mm46mm
Contact	Form	1Z,1H,1D
	Rated Load (Resistive Leakage)	60A
	Max.Switching Voltage	240VAC / 28VDC
	Contact resistance (initial)	≤100mΩ
	Material	Silver alloy
	Electric life	≥10⁵
	Machine life (300 times/min)	≥10⁷
Max. allowed voltage (23℃)		DC:≤75%×rated voltage
		AC:≤80%×rated voltage
Release voltage ( 23℃ )		DC:≥10%×rated voltage
		AC:≥30%×rated voltage
Maximum allowed voltage ( 23℃ )		110%×rated voltage
Norminal voltage	DC	6V-220V
	AC	6V-380V
Coil power	DC	DC:2.0W
	AC	AC:8.6VA
Operation time		≤25ms
Release time		≤15ms
Dielectric Strength	Between contacts	1500VAC/1min(leakage current:1mA)
	Between contact and coil	2500VAC/1min(leakage current:1mA)
Insulation resistance		≥200mΩ(500VDC)
Ambient temperature		-25℃~55℃
Ambient humidity		45%-75%RH
Atmospheric pressure		86-106KPa
Resistance stamping		10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance		10-55Hz (double amplitude: 1.5mm)
Installation Model PCB		Bolted
Weight		Approx.160g
Package	Inner box quantity	bubble box /10 pcs
	Carton Quantity	bubble boxes 100pcs /Carton
	Meas	402×288×370mm;
	Weight	N.W.16.82KG/Carton,G.W.17.32KG/Carton

Packaging & Shipping

Packaging Details:	standard export package
Delivery Detail:	3-10 days
