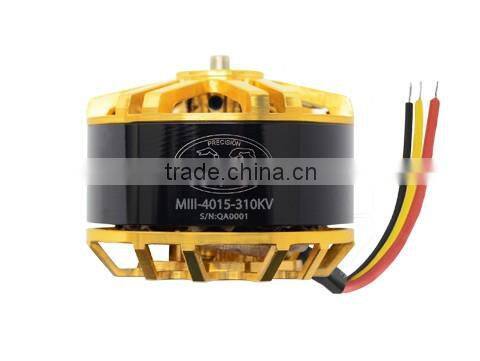

Scorpion MIII-4015-310kv Motor for Multicopter
The MIII-40 Series motor! This motor specially made for multi-copter. This motor provides all the power that you can use, while still maintaining excellent efficiency and higher power than any competition, perfectly balanced rotor.
It suitable for two types of propeller which has space 12mm screw hole and 6mm & 8mm inner diameter.

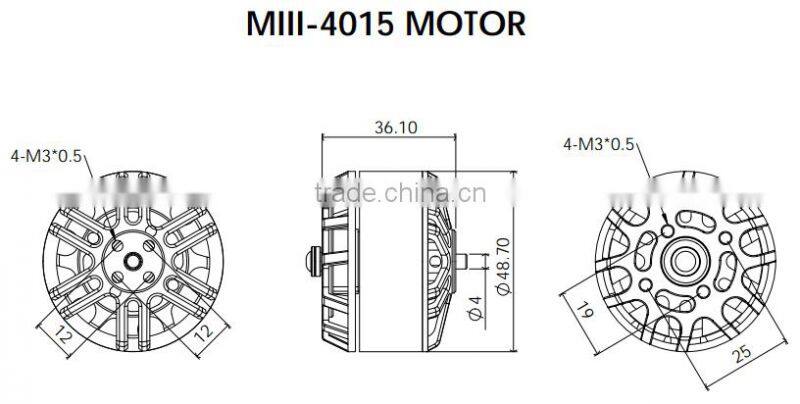

Technical Drawing:
Data Chart:
Specifications:
| Stator Diameter | 40 mm(1.57 in) |
| Stator Thickness | 15 mm(0.59 in) |
| No.of stator Arms | 12 |
| No.of stator Poles | 14 |
| Motor Wind | 8T+9T Turn Y |
| Motor Wire | 1-Strand 1.0 mm |
| Motor Kv | 310KV RPM/Volt |
| NO-Load Current(IO/10V) | 0.51 Amps |
| Motor Resistance(RM) | 0.109 Ohms |
| Max Continuous Current | 26 Amps |
| Max Continuous Power | 962 Watts |
| Weight | 208 Grams (6.34oz) |
| Outside Diameter | 48.7 mm (1.92 in) |
| Shaft Diameter | 3.98 mm (0.16 in) |
| Body Length | 36.1 mm (1.42 in) |
| Ovrall Shaft Length | 41 mm (1.63 in) |
| Max Lipo Cell | 10s |
| Peak Current | 35 Amps (2 seconds) |
| Peal Power | 1295 Watts (2 seconds) |
| Motor Timing | 5deg |
| Drive Frequency | 8kHz |
Weight including packaging:
- 291g
