Scorpion SII-4025-330KV Motor for Aeroplane

Hangzhou Reacher Technology Co., Ltd.
Scorpion SII-4025-330KV Motor for Aeroplane thumbnail-1
Scorpion SII-4025-330KV Motor for Aeroplane photo-1
US$ 1 - 149.99 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Use:
Other, Vehicles & Remote Control Toys
Place of Origin:
Guangdong, China
Brand Name:
Scorpion
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Use Other, Vehicles & Remote Control Toys
Place of Origin Guangdong, China
Brand Name Scorpion
Model Number SII-4025-330KV

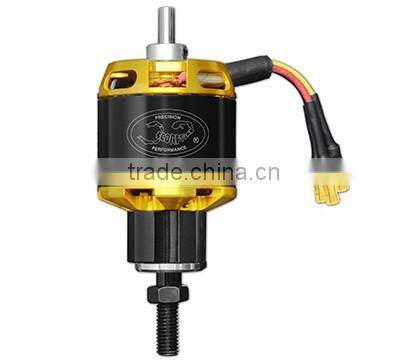

Scorpion SII-4025-330KV Motor for Aeroplane

Scorpion SII-4025-330KV Motor for AeroplaneScorpion SII-4025-330KV Motor for Aeroplane

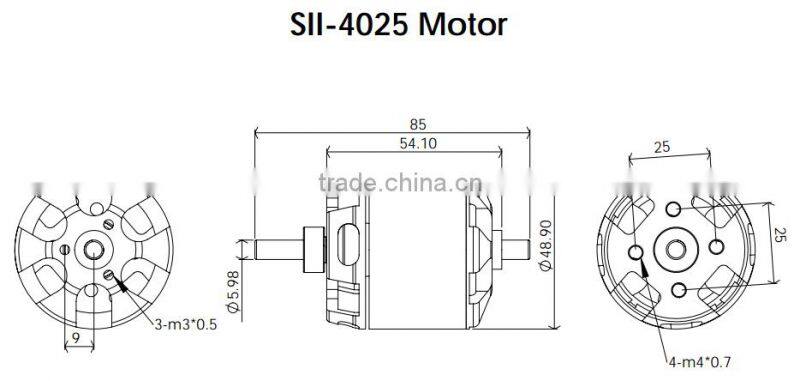

Technical Drawing:



Scorpion SII-4025-330KV Motor for Aeroplane

Data Chart:

Scorpion SII-4025-330KV Motor for Aeroplane

Specifications:

Stator Diameter40.0 mm (1.575 in)
Stator Thickness25.0 mm (0.954 in)
No. of Stator Arms12
Magnet Poles14
Motor Wind17 Turn Delta
Motor Wire17-Strand 0.25mm
Motor Kv330 RPM / Volt
No-Load Current (Io) @ 10 v0.74 Amps
Motor Resistance (Rm)0.037 Ohms
Max Continuous Current75 Amps
Max Continuous Power2000 Watts
Weight353 Grams (11.96 oz)
Outside Diameter48.9 mm (1.925 in)
Shaft Diameter5.98 mm (0.235 in)
Body Length54.1 mm (2.129 in)
Overall Shaft Length85 mm (3.346 in)
Max Lipo Cell8s
Motor Timing5deg
Drive Frequency8kHz

Weight including packaging:

  • 735g
