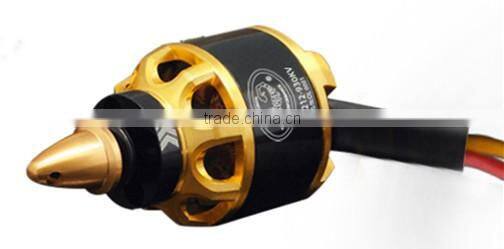

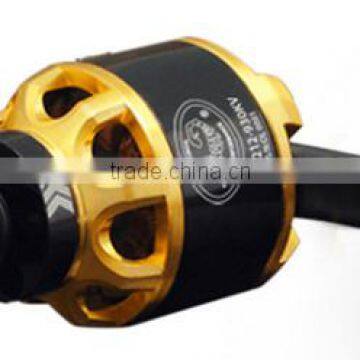

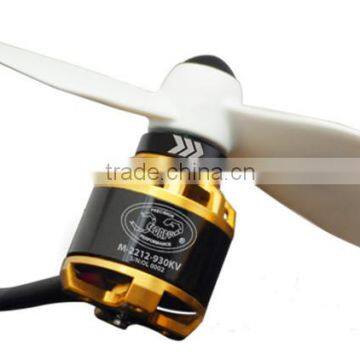

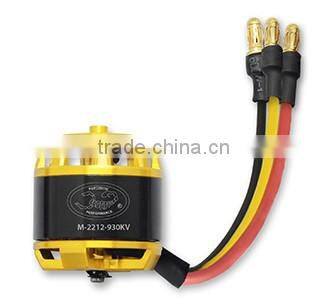

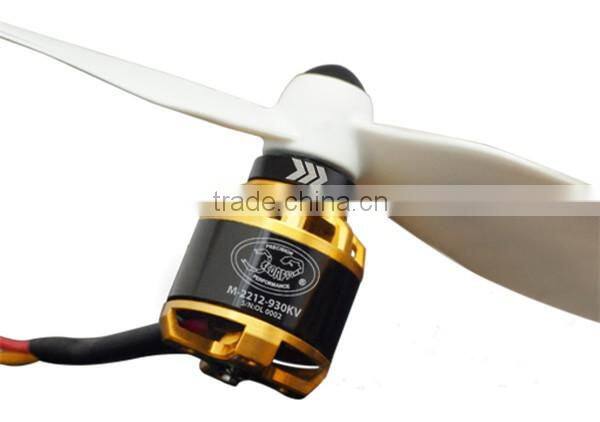

Scorpion M-2212-930KV Motor for FPV Racer
Scorpion M-2212-930kv has been specifically constructed to perform less vibration overall, and to give a more stable and efficient performance. This makes the M-2212-930kv one of the best choices for stabilization aerial photography. The motor can be powered by 3 cells, and up to 4. There are no modifications necessary to replace the original motor. Each package includes 1 motor, mounting plate, standard bolt-on propeller adapter, securing collar, and a set of screws.

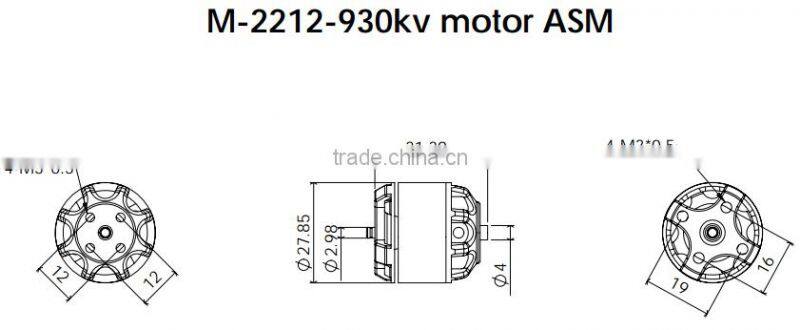

Technical Drawing:
Data Chart:
Specifications:
| Stator Diameter | 22 mm(0.866 in) |
| Stator Thickness | 12 mm(0.472in) |
| No. of Stator Arms | 12 |
| Magnet Poles | 14 |
| Motor Wind | 24 Turn Delta |
| Motor Wire | 3-Strand 0.21 mm |
| Motor Kv | 930KV RPM/Volt |
| No-Load Current (Io/10V) | 0.35Amps |
| Motor Resistance (Rm) | 0.169 Ohms |
| Max Continuous Current | 13 Amps |
| Max Continuous Power | 218 Watts |
| Weight | 51.8 Grams (1.83 oz) |
| Outside Diameter | 27.9 mm (1.097 in) |
| Shaft Diameter | 2.98 mm (0.11 in) |
| Body Length | 31.5mm (1.24in) |
| Ovrall Shaft Length | 33.7mm (1.33 in) |
| Max Lipo Cell | 4cells |
| Motor Timing | 5deg |
| Drive Frequency | 8kHz |
Weight including packaging:
- 220g
Company Workshop:
Packing:
Certificate:
