Scorpion SII-6530-150KV Motor for Aeroplane
Scorpion SII-6530 series is the second generation of high efficiency electric motor from Scorpion that are widely used in the size of 80cc airplane and as an upgrade version of Scorpion S-5545 series, with proven technology in new magnet configuration and housing designs to provide higher efficiency, higher power, less eddy current losses with lower internal resistance than our previous S-55 series.
Scorpion starts with premium quality of high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-coated to provide a beautiful, long-lasting finish. The stators are made by top grade 0.35mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are custom manufactured to be able to withstand high temperatures.

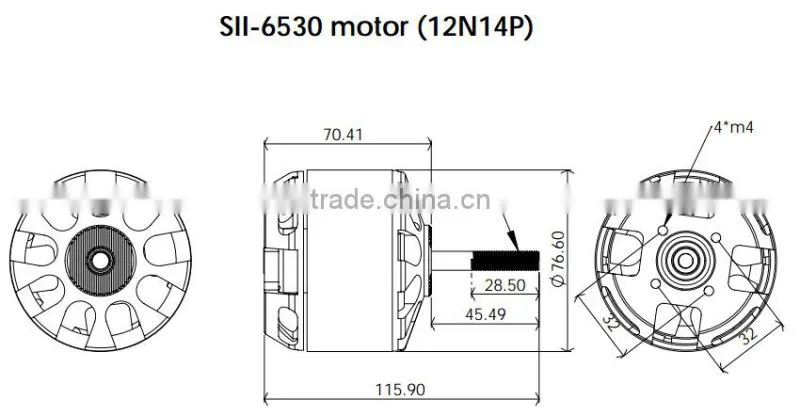

Technical Drawing:

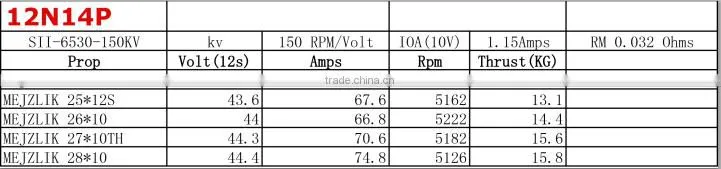

Data Chart:
Specifications:
| Stator Diameter | 65mm (2.559 in) |
| Stator Thickness | 30mm (1.181 in) |
| No. of Stator Arms | 12 |
| Magnet Poles | 14 |
| Motor Wind | 18 Turn Delta |
| Motor Wire | 14-Strand 0.41mm |
| Motor Kv | 150KV RPM / Volt |
| No-Load Current (Io/10V) | 1.15 Amps |
| Motor Resistance (Rm) | 0.032 Ohms |
| Max Continuous Current | 95 Amps |
| Max Continuous Power | 3900 Watts |
| Weight | 1043 Grams (36.79 oz) |
| Outside Diameter | 76.6 mm (3.015 in) |
| Shaft Diameter | M8*1.0 |
| Body Length | 70.4 mm (2.772 in) |
| Overall Shaft Length | 115.9 mm (4.563 in) |
| Max Lipo Cell | 12s |
| Motor Timing | 5deg |
| Drive Frequency | 8kHz |
| Max Peak Current | 140Amps @ 2sec |
| Max Peak Power | 5800 Watts @ 2sec |
Included in the Box:
- 1x Scorpion SII-6530-150Kv Motor
- 3x Female Connectors
- 3x Heat Shrink
- 1x Cross Motor Mount
- 4x Screw
- 1x Thrust washer
- 1x tapered collar
- 1x spacer collar
- 1x Prop washer
- 1x Prop nut
- 2x Nut lock
Weight including packaging:
- 1043g
