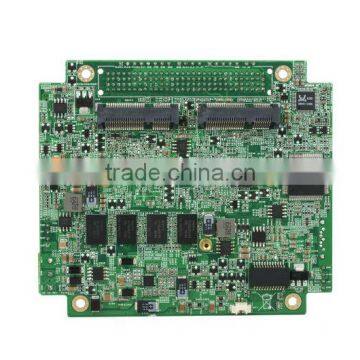

Intel Atom N2600 1.6GHz (Dual Core) PC104 Plus Embedded Motherboard ENC-5860

Intel Atom N2600 1.6GHz (Dual Core) PC104 Plus Embedded Motherboard ENC-5860 thumbnail-1
Intel Atom N2600 1.6GHz (Dual Core) PC104 Plus Embedded Motherboard ENC-5860 thumbnail-2
Intel Atom N2600 1.6GHz (Dual Core) PC104 Plus Embedded Motherboard ENC-5860 photo-1
Intel Atom N2600 1.6GHz (Dual Core) PC104 Plus Embedded Motherboard ENC-5860 photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other
Chipset Manufacturer:
Intel
Contact Supplier Request Quote Chat Now
Shenzhen Yacoo Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Other
Chipset Manufacturer Intel
Socket Type Other
Form Factor Other
Memory Type DDR3
Graphics Card Type Integrated
Hard Drive Interface SATA
Brand Name Yacoo
Model Number ENC-5860
Processor CPU              Intel® Atom™ N2600 -1.6GHz (Dual Core)
CPU Package Onboard
FSB DMI x 2 5Gb/s
Chipset G82NM10
BIOS            System BIOS: SPI BIOS
Memory Tech Architecture Single Channel DDR3 1066 MT/s
Capacity Onboard 2GB DDR3
Socket N/A
Display Graphic Controller Intel® GMA3600 Graphic Media accelerator
Dual LVDS Support dual channel 24bit output, Max. resolution:1920 x 1200
VGA VGA Pinheader, max. resolution: 1920 x 1200 @ 60Hz
Dual Display LVDS + VGA Synchronous or asynchronous display
LAN Controller LAN1: Intel® 82583V Gigabit Network
Audio Controller Realtek HD ALC662 audio decoder(right&left channel + Mic)
Super I/O Controller SMSC3114
H/W Monitor Watch Dog Timer 0-255 sec., provide watch dog routine
Cooler Aluminium fanless heat-sink
TPM Controller N/A
I/O USB            4*USB2.0 / 1.1 (Compatible), Max. support +5V@1A
Serial Port 4* (3 *RS-232, 1*RS-485,support auto data flow control)
ESD protection: Air discharge: ±15kV, Contact discharge: ±8kV
Parallel Port N/A
PS/2 N/A
GPIO 8 bits GPIO, provide routine, freely define I/O,3.3V@24mA level
Expansion Bus PCI PC/104 PLUS socket, Max. support 2*PCI devices
Mini-PCIe 1*Mini-PCIe socket, support PCIe & USB devices
SMBUS 1
Storage SATA            1*Standard SATAII, Max. transfer rate: 3Gb/s
M-SATA    1* Mini-PCIe M-SATA Scoket, support SANDISK protocal, Max. transfer rate: 3Gb/s
Power Supply Power Type AT/ATX mode(optional),DC+12V input, support reverse power protection.
Power Consumption Typical Power: 8W
Working Environment Operating Temp. 0°C ~ 60°C
Storage Temp. -20°C ~ 80°C
Working Humidity 0% ~ 90% relative humidity, non-condensing
Storage Humidity 0% ~ 90% relative humidity, non-condensing
Formfactor Dimensions 115mm x 96mm
Weight 0.12kg
Certificate   FCC, CE, RoHS
