Home > Products > Single Board Computers > 3.5 inches Intel Atom Cedar Trail N2600/2800 CPU Fanless X86 Single Board Computers ENC-5891

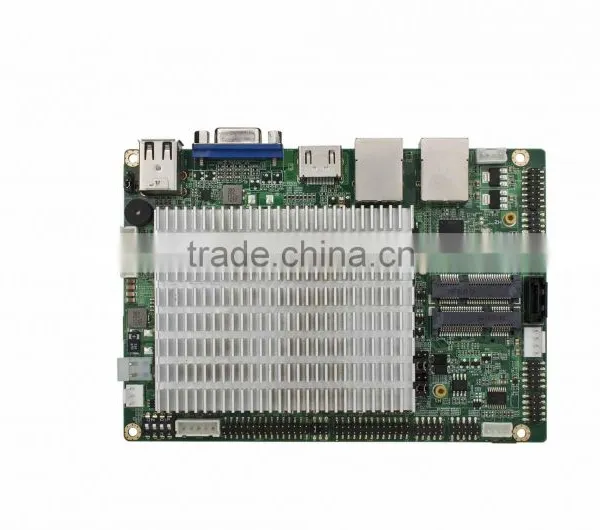

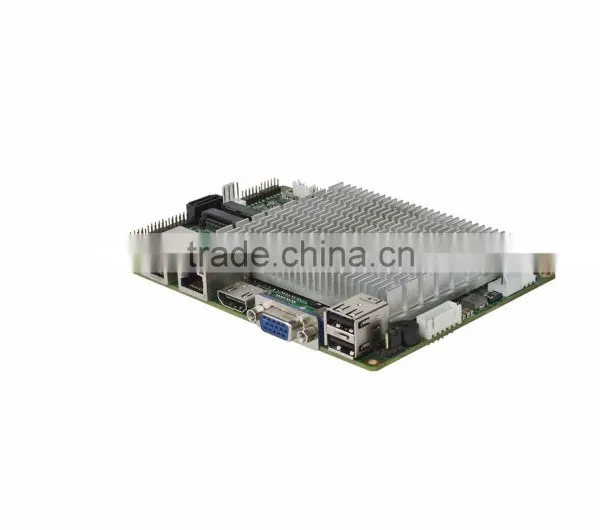

3.5 inches Intel Atom Cedar Trail N2600/2800 CPU Fanless X86 Single Board Computers ENC-5891
Negotiable
/ Piece
1 Piece(Min.Order)
- 10000 Piece / Pieces per Month
- shenzhen
- Credit Card
You May Like
Product Details
| Products Status: | Stock | Type: | Embedded Industrial Motherboard | Brand Name: | Yacoo |
| Model Number: | ENC-5891 |
Product Description
| Processor | CPU | Intel® Atom™Cedar Trail processor N2600 / 2800 |
| CPU Package | Onboard | |
| FSB | 800 / 1066Mhz | |
| Chipset | G82NM10 | |
| BIOS | 16M BIT SPI BIOS | |
| Memory | Architecture | DDRIII 800 MT/s and 1066 MT/s |
| Capacity | Onboard 2GB | |
| Socket | N/A | |
| Display | Graphic Controller | Intel®integrated Graphics media accelerator 3600 |
| LVDS | Support single channel 18bit output | |
| Max. Resolution: 1366 * 768 | ||
| Support dual channel 24bit output | ||
| Max. Resolution: 1920 * 1200 | ||
| VGA | 1 * DB15 standatd VGA connector | |
| Max. Resolution:1920 * 1200 | ||
| HDMI | Support HDMI 1.3A type, 19 pin | |
| Max. Resolution:1920 * 1200 | ||
| Display Port | N/A | |
| N/A | ||
| Dual Display | LVDS + VGA,LVDS + HDMI or HDMI + VGA | |
| LAN | Controller | LAN1: LAN 1: Intel 82583V GbE Lan |
| LAN2: LAN 1: Intel 82583V GbE Lan | ||
| Audio | Controller | Realtek ALC662 audio programming decoder(right&left channel + Mic) Max. amplifier output: 2W |
| Super I/O | Controller | WINBOND 83627DHG |
| H/W Monitor | Watch Dog Timer | Timer 1 - 255 sec./min., support system reset |
| Fan | Fanless | |
| TPM | Controller | N/A |
| I/O | USB | 6 * USB 2.0 / 1.1 compatible |
| Serial Port | COM1 for RS232, COM2 RS232/RS485 Jumper Optional | |
| Parallel Port | 1 * Parallel port | |
| PS/2 | N/A | |
| GPIO | 12 Bit | |
| SMBUS | 1 * SMBus 2.0 | |
| Expansion | PCIeX16 | N/A |
| PCIeX4 | N/A | |
| PCIeX1 | N/A | |
| PCI | N/A | |
| Mini-PCIe | 1 * half size Mini-PCIe, 1 * full size Mini-PCIe, support 3G or WIFI | |
| USIM | 1* standard SIM socket | |
| Storage | SATA | 1 * SATAII, The max. transfer rate: 3Gb/s |
| M-SATA | 1 * half size Mini-PCIe, support SSD | |
| IDE | N/A | |
| eSATA | N/A | |
| CF Card | N/A | |
| Power | Power Type | DC 12V @ 3A |
| Power Consumption | Typical Power:10W | |
| Environment | Operating Temp. | -20°C ~ 70°C |
| Storage Temp. | -40°C ~ 85°C | |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing | |
| Storage Humidity | 0% ~ 90% relative humidity, non-condensing | |
| Form Factor | Dimensions | 3 . 5 ” 145mm x 102mm |
| Weight | ||
| Regulatory Compliance | FCC, CE, RoHS compliant | |
