Home > Computer Products > Mainboard > AMD T40E PC/104 Embedded CPU Motherboard ENC-5850 X86 Single Board Computers

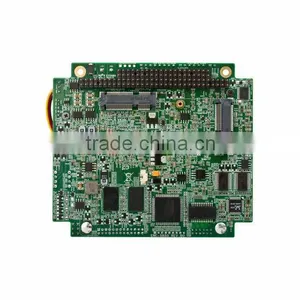

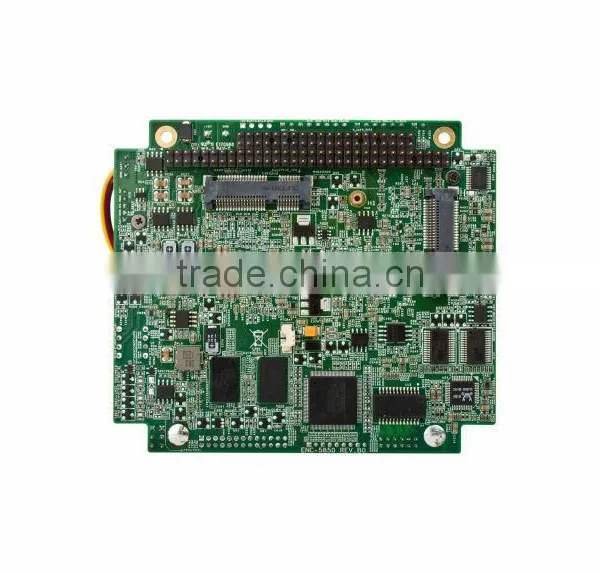

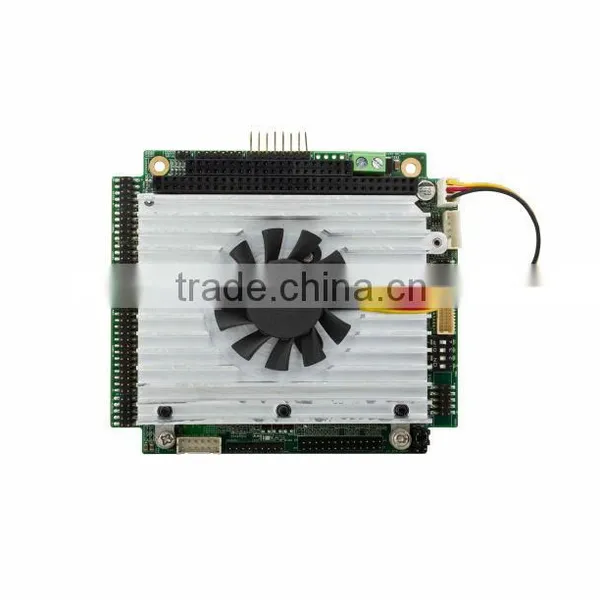

AMD T40E PC/104 Embedded CPU Motherboard ENC-5850 X86 Single Board Computers
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other, Digital Signage,medical equipment,gaming machine
Chipset Manufacturer:
AMD
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fanless Atom D2550 CPU Dual Core X86 Single Board Computer GMX-1916NegotiableMOQ: 1 Piece -
3.5 Inches Intel Atom Cedar Trail N2600/2800 CPU Fanless X86 Single Board Computers ENC-5891NegotiableMOQ: 1 Piece
-
AMD Kabini G-SOC 2.0/2.0GHz Dual Core / Quad Core APU Nano-ITX Motherboard DS-2019 for Full HD Digital SignageNegotiableMOQ: 1 Piece
-
Intel Atom N2600 1.6GHz (Duo Core) PC104+ Single Board Computer ENC-5860NegotiableMOQ: 1 Piece
-
Nano-ITX Motherboard AMD Fusion APU T48N/T56N Duo Core DS-2018 Single Board ComputerNegotiableMOQ: 2 Pieces
Products Status
Stock
Application
Other, Digital Signage,medical equipment,gaming machine
Chipset Manufacturer
AMD
Socket Type
Other, Onboard
Form Factor
Other, PC/104
Memory Type
DDR3
Graphics Card Type
Integrated
Hard Drive Interface
IDE, SATA
FSB / HT
800/1066/1333 MHz
Brand Name
YACOO
Model Number
ENC-5850
| Specification | ||
| Processor System | CPU | AMD® G-Series APU Duo T40R - 1.0GHz/T40E - 1.4GHz |
| CPU Socket | Onboard | |
| FSB | 800/1066/1333 MHz | |
| Chipset | AMD® eBrazos + Hudson-M1 | |
| BIOS | AMI EFI BIOS | |
| System Memory | Tech Architecture | Dual Channel DDR3 800/1066/1333MHz FSB |
| Max.Capacity | Up to 2GB | |
| Socket | Onboard | |
| Display | Graphic Controller | AMD® RadeonTM HD6 Series Support DirectX® 11 |
| LVDS | Support Dual channel 18/24bit | |
| Resolution: up to 1920 * 1080 (Support 1080P) | ||
| VGA | 1 * Onboard VGA pin header | |
| Resolution: up to 2560 * 1600 | ||
| HDMI | N/A | |
| N/A | ||
| Display Port | N/A | |
| N/A | ||
| Dual Display | CRT+LVDS | |
| Ethernet | Controller | LAN1: Realtek RTL8111E GbE LAN |
| LAN2: N/A | ||
| Audio | Controller | Realtek ALC662 HD audio codec (right&left channel+MIC) |
| Super I/O | Controller | SMSC3114 |
| H/W Monitor | Watchdog Timer | Programmable 1 ~ 255 sec./min,; Support System Reset |
| Smart Fan | 1 * 3 Pin DC CPU Fan line control | |
| TPM | Controller | N/A |
| I/O Interface | USB | 4 * USB 2.0/1.1 Compatible |
| Serial Port | 4 * (3 * RS-232, 1 * RS-232 / RS-422 / RS-485) | |
| Parallel Port | 1 | |
| PS/2 | 1 | |
| GPIO | 4-bit GPI and 4-bit GPO | |
| IEEE 1394 | N/A | |
| Expansion Slot | PCIeX16 | N/A |
| PCIeX4 | N/A | |
| PCIeX1 | N/A | |
| PCI104 | 1 * PC / 104 ;16 bit ISA Bus Socket | |
| Mini-PCIe | N/A | |
| USIM | N/A | |
| Storage | SATA | 1 * SATAⅡ, 1 *C-FAST |
| SSD | N/A | |
| IDE | N/A | |
| eSATA | N/A | |
| Compact Flash | N/A | |
| Power Source | Power Supply | DC-in 5V/12V |
| Power Consumption | Typical Consumption:12W | |
| Environment | Operating Temperature | 20°C ~ 80°C |
| Storage Temperature | -20°C ~ 85°C | |
| Operating Humidity | 0% ~ 90% relative humidity,non-condensing | |
| Storage Humidity | 0% ~ 90% relative humidity,non-condensing | |
| Form Factor | Dimensions | PC104(100mm * 96mm) |
| Weight | N/A | |
| Regulatory Compliance | FCC, CE, VCCI, RoHS compliant | |
