Sponge Laminating Machine LN-2000H

Name: Sponge Laminating Machine LN-2000H
Brand: EOMAE
SKU: 131675103
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Lamination

Automatic Grade:

Semi-Automatic

Yancheng Xinzhan Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Lamination

Automatic Grade Semi-Automatic

Production Capacity High

Place of Origin Jiangsu, China

Brand Name EOMAE

Model Number LN-2000H

Voltage Customizable

Power(W) 35.5 KW

Dimension(L*W*H) 7600 x 2700 x 2600 mm

Weight 3500 KGS

Features Stable operation

Certification CE

Warranty 18 Months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

* Water based glue
* Horizontal structure
* Easy to operate
* Superb processing
* Thoughtful after-sales service

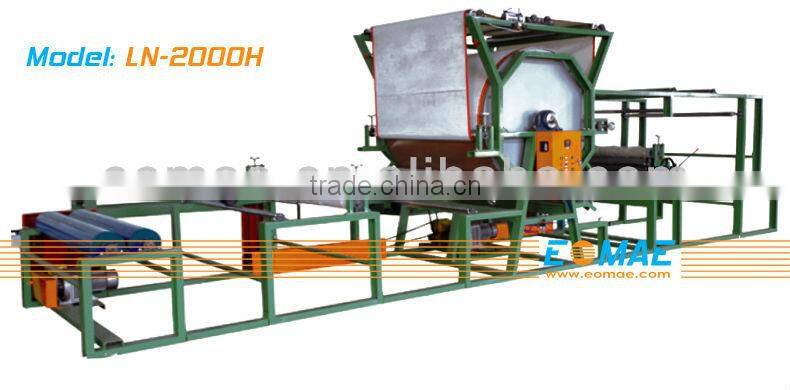

LN-2000H Sponge Laminating Machine

Applications

Used for gluing material and laminating with other materials, suitable for laminating sponge, cloth, nonwoven, plastic, leather, synthetic leather...
Widely used in cloth, shoemaking, luggage, interior decoration, car interiors, toy and other industries.

Key Features

Applicable to water-based glue;
Horizontal structure;
Equipped with high quality heat resistance net belt to make the laminated materials contact closely with the drying cylinder, to improve the drying effect, and make the laminated product soft, washable, and strengthen adhesive fastness;
Equipped with two sets of heating system, user can select one set heating mode or two sets, to reduce the energy consumption and lower costs;
Surface of the drying cylinder is coated with Teflon to avoid glue;
Pneumatically controlled or handwheel controlled clamp roller;
Equipped with automatic infrared centering control unit, which can effectively prevent the net belt deviation, and ensure the net belt service life;
Efficient cooling unit is suitable for various materials;
Low maintenance cost and simple to maintain.

Options

Main Technical Data

Model:	LN-2000H
Working Width:	1800 mm
Drying Cylinder Diameter:	1500 mm
Drying Cylinder Width:	2000 mm
Heating Tube Inside Drying Cylinder:	30 PCS x 1.0 KW
Running speed:	1-40 m/min
Power:	35.5 KW
Net Weight:	3500 KGS
Dimension:	7600 x 2700 x 2600 mm
