Double Drying Cylinder Laminating Machine

Double Drying Cylinder Laminating Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Lamination
Automatic Grade:
Semi-Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Lamination
Automatic Grade Semi-Automatic
Production Capacity High
Place of Origin Jiangsu, China
Brand Name EOMAE
Model Number LN-Double Drying Cylinder
Voltage Customizable
Power(W) 64.5 KW
Dimension(L*W*H) 11000 x 2500 x 2600 mm
Weight 4000 KGS
Features Double Drying Cylinder
Certification CE
Warranty 18 Months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

* Double Drying Cylinder
* Water based glue
* Easy to operate
* Superb processing
* Thoughtful after-sales service



LN - Double Drying Cylinder Laminating Machine





Applications

  • Compared with the single drying cylinder model, double drying cylinder model is optimized for laminating thick materials like denim, canvas, corduroy, suede, plush...
  • Widely used in cloth, shoemaking, luggage, interior decoration, car interiors, toy and other industries.



Key Features

  • Applicable to water-based glue;
  • Benefitting from double drying cylinder, laminating speed is accelerated, drying effect is also enhanced;
  • Equipped with high quality heat resistance net belt to make the laminated materials contact closely with the drying cylinder, to improve the drying effect, and make the laminated product soft, washable, and strengthen adhesive fastness;
  • Equipped with two sets of heating system, user can select one set heating mode or two sets, to reduce the energy consumption and lower costs;
  • Surface of the drying cylinder is coated with Teflon to avoid glue;
  • Pneumatically controlled or handwheel controlled clamp roller;
  • Equipped with automatic infrared centering control unit, which can effectively prevent the net belt deviation, and ensure the net belt service life;
  • Efficient cooling unit is suitable for various materials;
  • Low maintenance cost and simple to maintain.



Options

  • 1200mm diameter heating drum;
  • Automatic temperature control system;
  • Frequency converter linkage;
  • Counting function.



Main Technical Data





Model:  LN - Double Drying Cylinder
Working Width:  2000 mm
Drying Cylinder Diameter:  1500 mm
Drying Cylinder Width:  2200 mm
Heating Tube Inside Drying Cylinder:  30 PCS x 1.5 KW x 2
Running speed:  1-40 m/min
Power:  64.5 KW
Net Weight:  4000 KGS
Dimension:  11000 x 2500 x 2600 mm

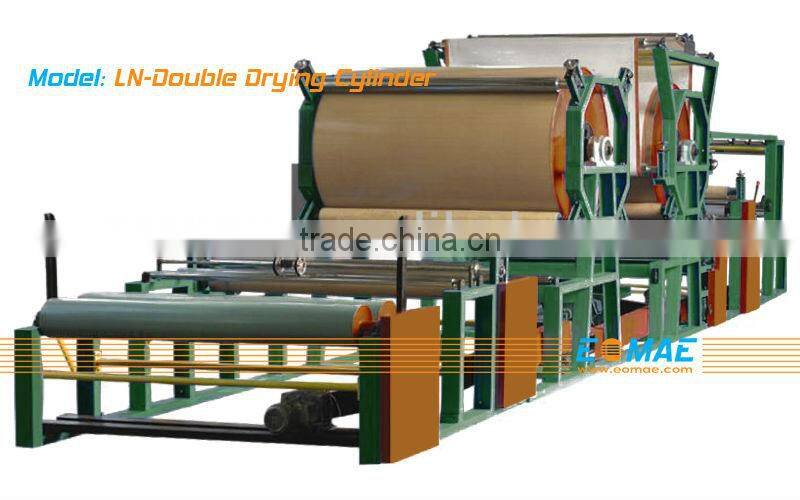

Machine Photo



Double Drying Cylinder Laminating Machine







Laminated Product Sample Photos



Double Drying Cylinder Laminating MachineDouble Drying Cylinder Laminating MachineDouble Drying Cylinder Laminating MachineDouble Drying Cylinder Laminating Machine



Double Drying Cylinder Laminating Machine



Double Drying Cylinder Laminating Machine



* If more details or any assistance wanted, feel free to contact us.
