Traveling Head Die Cutting Machine
Negotiable
/ Set
1 Set(Min.Order)
- 80 Set / Sets per Month
- Shanghai Port China
- T/T
You May Like
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | EOMAE | Model Number: | CT-40T |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
CT-40T Traveling Head Die Cutting Machine
Application
- Mainly used for die cutting leather and leather products, plastic, rubber, sponge, foam, EVA, PVC, cardboard, paper products, fabric, home textiles, packaging materials, non woven, carpet, car cushion, felt, synthetic materials, and other non-metallic materials in various industries;
- Particularly applicable to cut single or multiple layers of wide width materials, and rolled material.
Key Features
- Gantry structure design, offers outstanding visibility to the operator;
- Hydraulic drive mode, all hydraulic system components are of superb quality;
- The solid structure is very stable and durable;
- Cutting head can be moved right and left, quite easy and convenient to install and set cutting mold (die cutter);
- Movable cutting platen is transmitted by chain (not belt conveyor), and controlled via frequency converter, can move much more smooth, stable, and accurate;
- Platen's vertical position can be set freely as needed, to avoid idle stroke;
- Automatic lubricating system;
- Double oil cylinders and double oiling way make the machine run very stably at a high speed;
- Casting moving head, not welded steel plate, so there's no possibility of any oil leakage;
- Two-handed operation design and emergency stop device can ensure safe operation;
- Advanced technology, qualified parts and superb workmanship will ensure the machine's running stability and service life.
Options
- PLC (Programmable Logic Controller) system, including touch screen
- Automatic feeding system, applicable for roll material or sheet
- Pneumatic clamp unit for die cutter / knife mold
- Platen size and bed size
- Machine color
Main Technical Data
- CT-40T Traveling Head Die Cutting Machine
Model: | CT-40T |
Cutting Force: | 40 Ton |
Platen Size: | 480 x 480 mm |
Bed Size: | 1600 x 500 mm |
Cutting Stroke: | 0-145 mm |
Distance between Platen to Bed: | 45-190 mm |
Motor: | 2.2 KW / 6 Pole |
Hydraulic Oil: | 75 Liter of 46 anti-wear hydraulic oil |
Net Weight: | 1700 KGS |
Dimension: | 2000 x 600 x 2100 mm |

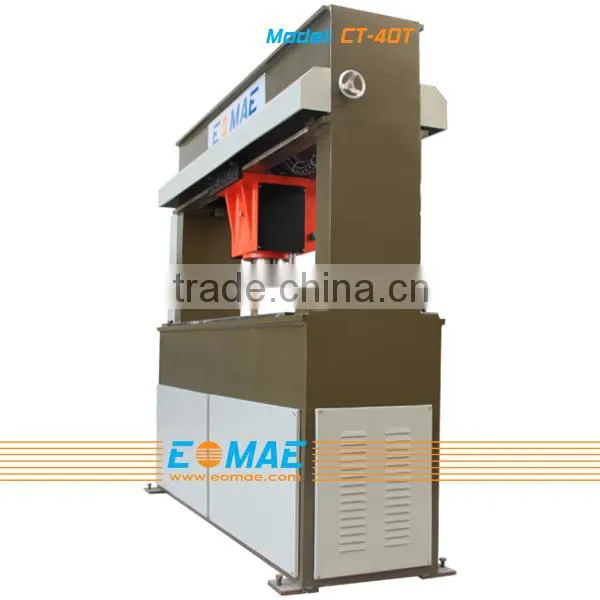

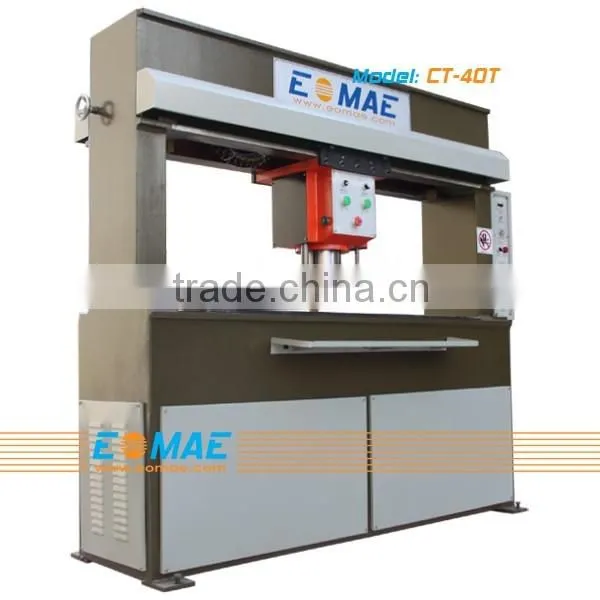

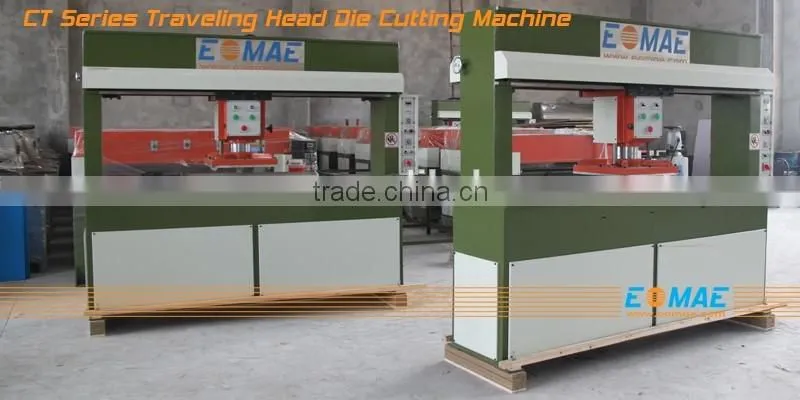

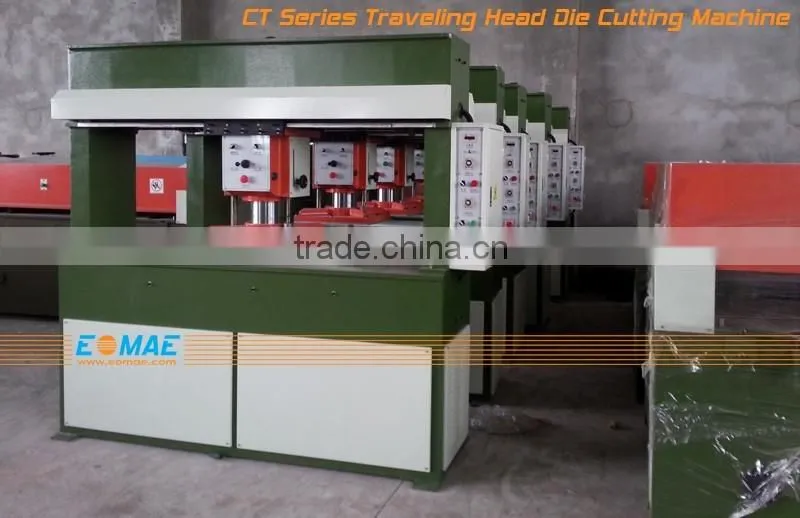

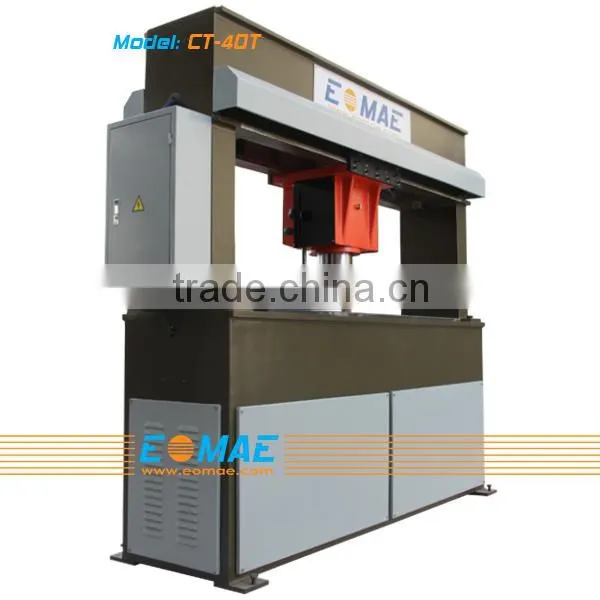

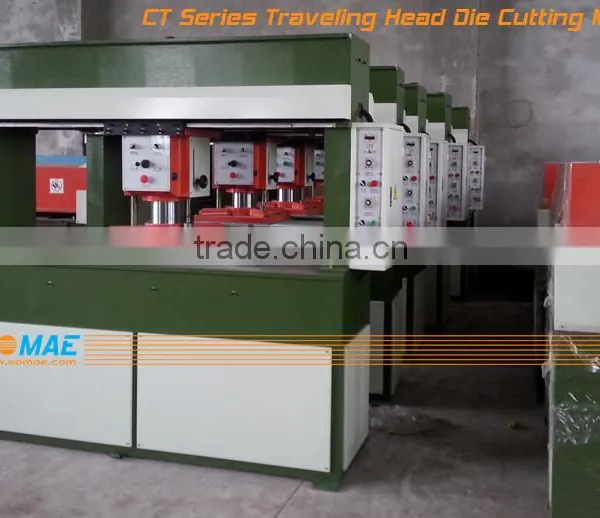

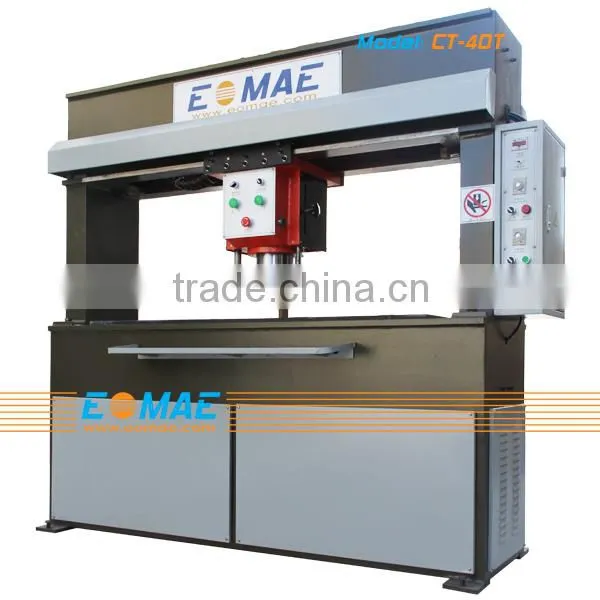

Machine Photos
- CT-40T Traveling Head Die Cutting Machine

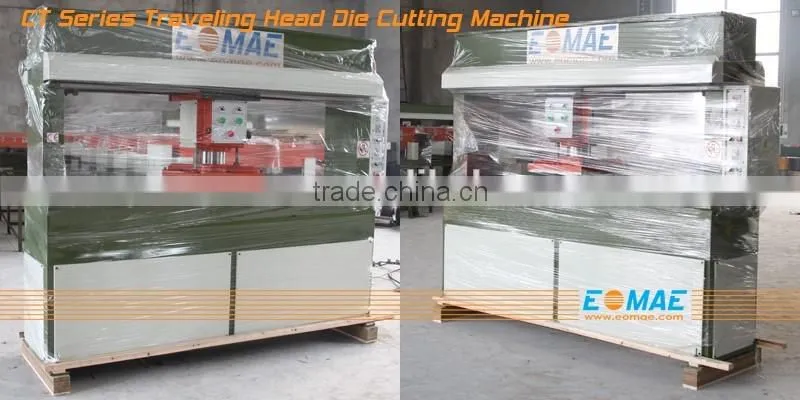

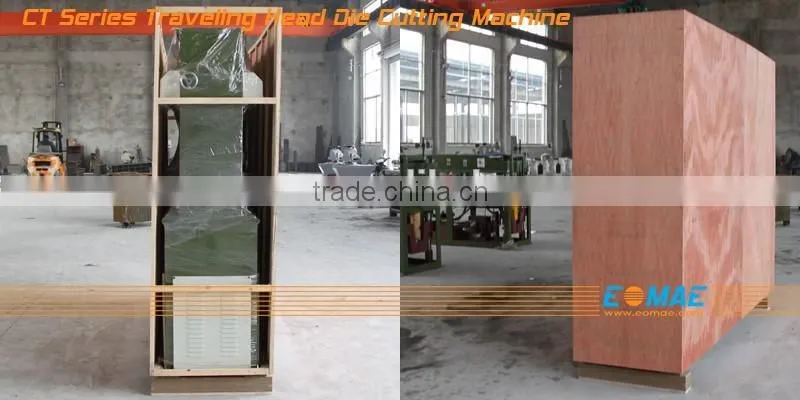

Package
