Help CenterTraveling Head Die Cutting Press
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Manual
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Automatic Grade
Manual
Place of Origin
Jiangsu, China
Brand Name
EOMAE
Model Number
CT-30T
Type
Cutting Machine
Voltage
Customizable
Power(W)
2.2 KW
Dimension(L*W*H)
2300 x 600 x 2100 mm
Weight
1800 KGS
Certification
CE
Warranty
18 Months
After-sales Service Provided
Engineers available to service machinery overseas
CT-30T Traveling Head Die Cutting Press
Application
- Mainly used for die cutting leather and leather products, plastic, rubber, sponge, foam, EVA, PVC, cardboard, paper products, fabric, home textiles, packaging materials, non woven, carpet, car cushion, felt, synthetic materials, and other non-metallic materials in various industries;
- Particularly applicable to cut single or multiple layers of wide width materials, and rolled material.
Key Features
- Gantry structure design, offers outstanding visibility to the operator;
- Hydraulic drive mode, all hydraulic system components are of superb quality;
- The solid structure is very stable and durable;
- Cutting head can be moved right and left, quite easy and convenient to install and set cutting mold (die cutter);
- Movable cutting platen is transmitted by chain (not belt conveyor), and controlled via frequency converter, can move much more smooth, stable, and accurate;
- Platen's vertical position can be set freely as needed, to avoid idle stroke;
- Automatic lubricating system;
- Double oil cylinders and double oiling way make the machine run very stably at a high speed;
- Casting moving head, not welded steel plate, so there's no possibility of any oil leakage;
- Two-handed operation design and emergency stop device can ensure safe operation;
- Advanced technology, qualified parts and superb workmanship will ensure the machine's running stability and service life.
Options
- PLC (Programmable Logic Controller) system, including touch screen
- Automatic feeding system, applicable for roll material or sheet
- Pneumatic clamp unit for die cutter / knife mold
- Platen size and bed size
- Machine color
Main Technical Data
- CT-30T Traveling Head Die Cutting Press
| Model: | CT-30T |
| Cutting Force: | 30 Ton |
| Platen Size: | 480 x 480 mm |
| Bed Size: | 1800 x 500 mm |
| Cutting Stroke: | 0-145 mm |
| Distance between Platen to Bed: | 45-190 mm |
| Motor: | 2.2 KW / 6 Pole |
| Hydraulic Oil: | 75 Liter of 46 anti-wear hydraulic oil |
| Net Weight: | 1800 KGS |
| Dimension: | 2300 x 600 x 2100 mm |

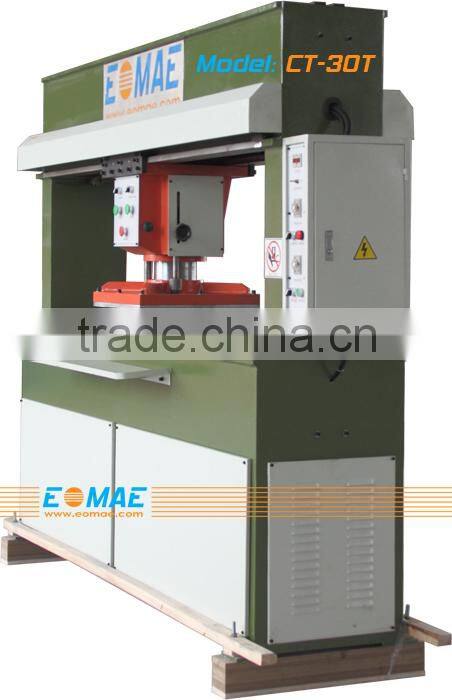

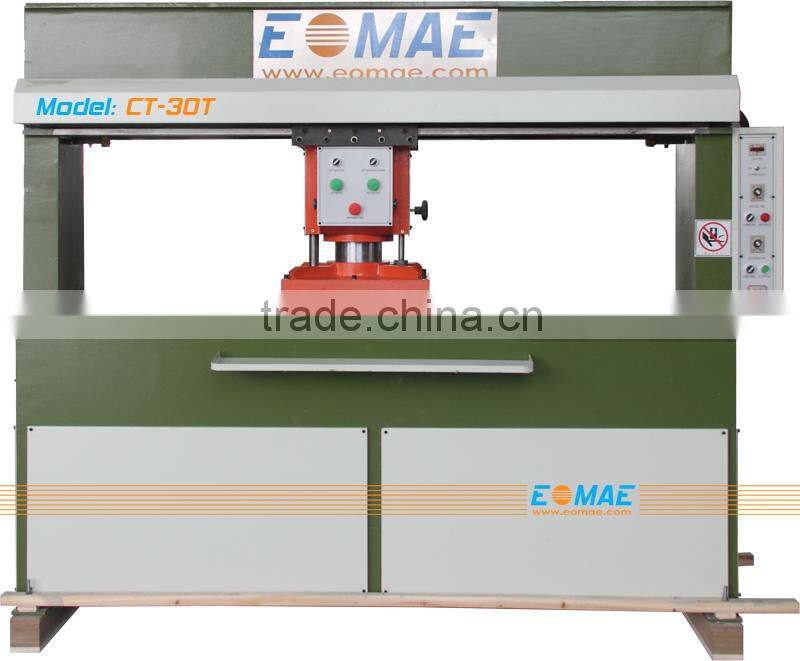

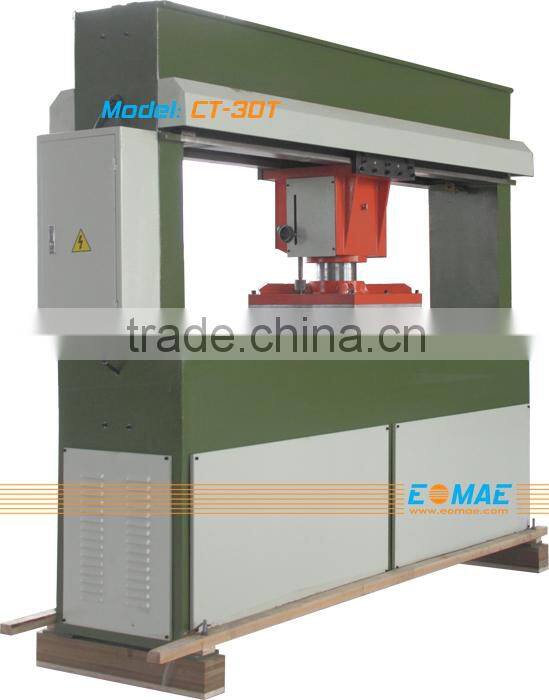

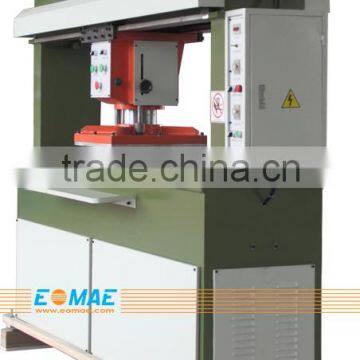

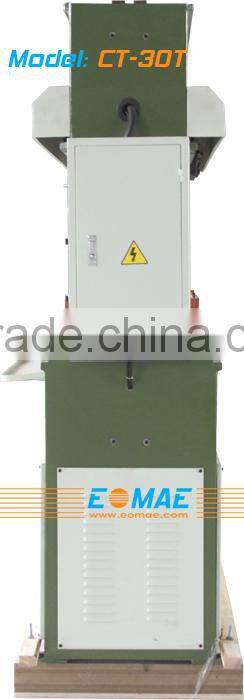

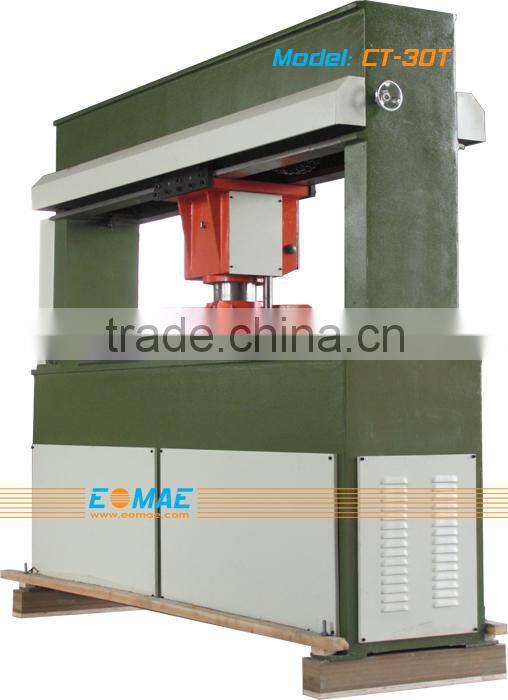

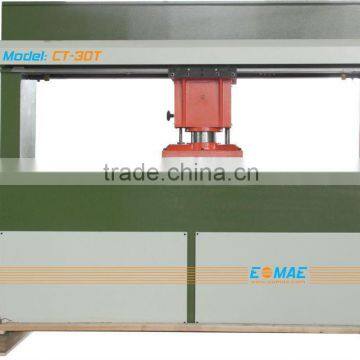

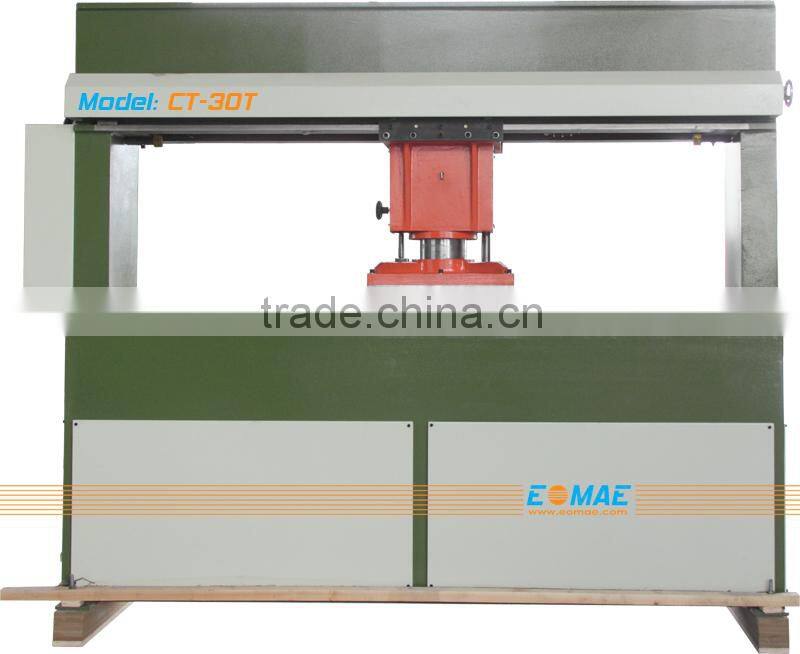

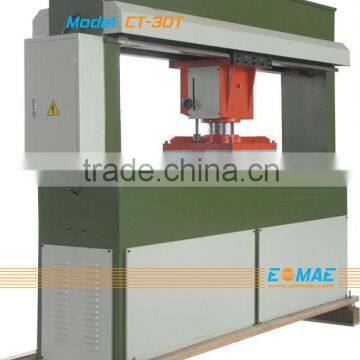

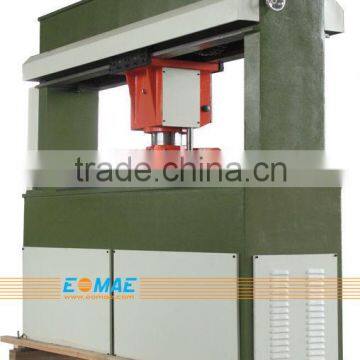

Machine Photos
- CT-30T Traveling Head Die Cutting Press

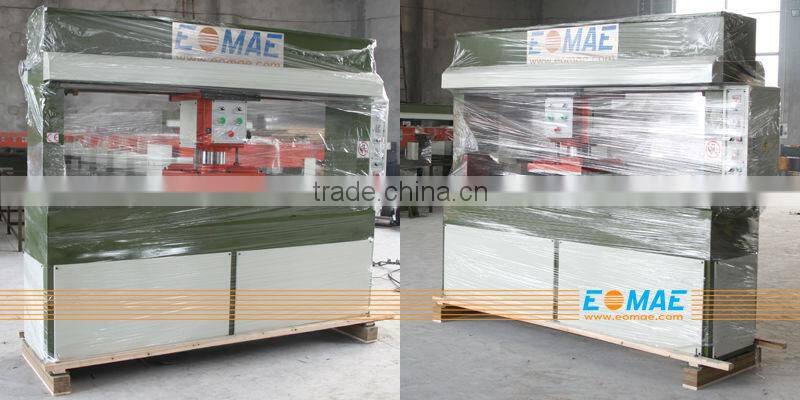

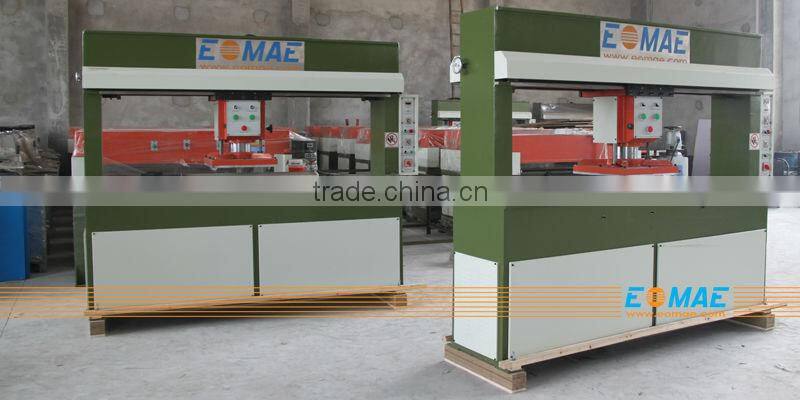

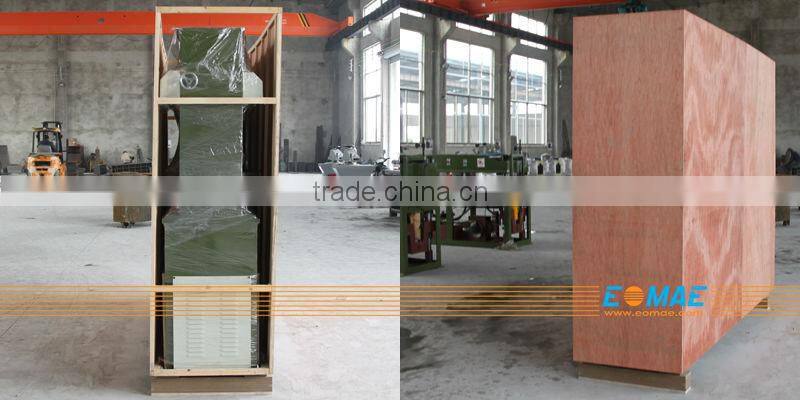

Package
