Home > Products > Lamination-Powder > Powder Laminating Machine LP-2000
Powder Laminating Machine LP-2000
Negotiable
/ Set
1 Set(Min.Order)
- 10 Set / Sets per Month
- Shanghai Port China
- T/T
You May Like
- Fabric and Foam Laminating Machine for Shoe Making
- automatic Fire Retardant Foam Flame Laminating Machine
- Fabric sponge flame laminating machine
- CE certificated Solvent Based Glue Laminating Machine for Fabric/film
- Kuntai Automatic PUR Fabric/PVC Film Lamination Machine
- Water Based Glue Fabric to Foam Laminating Machine
Product Details
Condition: | New | Application: | Lamination | Automatic Grade: | Semi-Automatic |
Production Capacity: | High | Place of Origin: | Jiangsu, China | Brand Name: | EOMAE |
Model Number: | LP-2000 | Voltage: | Customizable | Power(W): | 55.0 KW |
Dimension(L*W*H): | 14800 x 2500 x 1850mm | Weight: | 5600 KGS | Features: | Powder |
Certification: | CE | Warranty: | 18 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
* Hot melt powder* Bamboo charcoal powder
* Energy-saving baking oven
* Thoughtful after-sales service
LP-2000 Powder Laminating Machine
Applications:
- Used for transferring Hot melt powder or Bamboo charcoal powder onto fabric or other material, after heating, then laminate it with other materials, suitable for laminating fabric, nonwoven, sponge...
- Widely used in garments, shoes, car interiors, decoration, and other industries.
Key Features:
- Applicable to hot melt powder, bamboo charcoal powder;
- Professionally designed powdering unit, is equipped with stirring, vibrating system. Powder is transferred onto material surface very evenly and stably, easy to control powdering amount, and it can also help to reduce powder loss;
- Energy-saving baking oven, with good heat-insulation performance, can minimize heat loss;
- Baking oven is equipped with high quality temperature control system, to ensure a constant oven temperature, very small temperature difference. Temperature is controlled through an adjustable temperature controller. User may adjust the baking oven temperature according to different materials to achieve best laminating effect.
- Running speed is controlled through frequency synchronization, synchronic speed adjusting, very easy and convenient to operate;
- Both unwinding and winding have magnetic constant tension control;
- Automatic hydraulic centering unit ensures edge alignment in laminating;
- Equipped with pneumatic expanding shaft for easy operation;
- Efficient cooling unit;
- Edge cutting unit;
- Counting unit.
Options:
- Machine working width
- Servo motor
- Machine color
Main Technical Data
Model: | LP-2000 |
Working Width: | 1800 mm |
Roll Width: | 2000 mm |
Running Speed: | 0~15 m/min |
Powdering Amount: | 20~500 g/m2 |
Baking Oven Length: | 8000 mm |
Heating Mode: | Electric |
Power: | 55.0 KW |
Net Weight: | 5600 KGS |
Dimension: | 14800 x 2500 x 1850 mm |

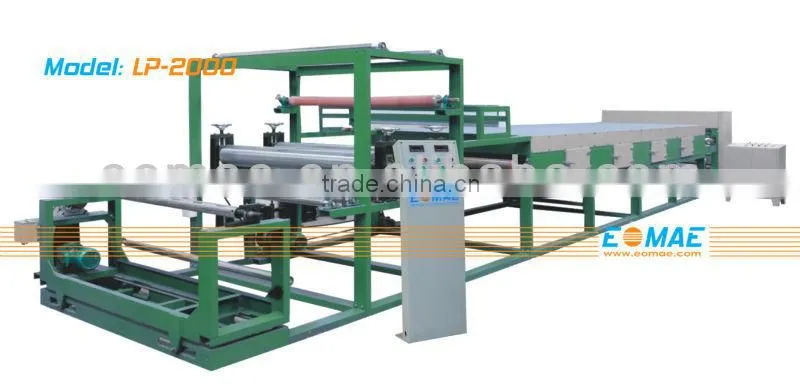

Machine Photo
* If more details or any assistance wanted, feel free to contact us.
Contact Us
- Yancheng Xinzhan Machinery Co., Ltd.
- Contact nameDaniel Young
- Phone0086-515-8885 9000
- AddressNo. 35, Xitanyang Lane, Dagang Town, Yandu District Yancheng,Jiangsu
