P31.25 ITS Variable Message Sign Outdoor LED for Road Sign Options from Glare-LED
Outdoor LED for Road Sign Options Spec
1.Physical Pitch(mm) 31.25 LEDs:4amber
2.resolution (pixel) 32X64
3.Physical Pixel Density(Pixel/m2) 1024
4.Pixel Configuration full color
5.LED wavelength 625+/-5nm
6.Brightness(cd/m2) ≤7000 cd/sq.m
7.Cabinet pixels 32×32
8.Cabinet Weight 65KG
9.Supply Voltage AC100~120V AC220~240V
10.Maximum Power Consumption(w/m2) 200(w/m2)
11.Average power Consumption(w/m2) 60(w/m2)
12.Operating Teperature -20~°C+50°C
13.Operating Humidity ≤95%
14.Horizontal Viewing Angle > 100°
15.Vertical Viewing Angle 70°
16. Gray scale : Display colors >4096;12 bit / color
17.Display colors 4A
18.IP Rating Front IP65
19.Viewing Distance (min,max) 25-500m
20.Regresh Rate(Frame per Second) 480HZ
21. Drive mode : Constant current; static scan
22.Blind LED lamp rate <0.00001 :
23.LED life( hours) 100,000
24.cabinet:mental or Aluminum frame can be choose
Outdoor LED for Road Sign Options Technical parameters
Items |
Parameters |
LEDs |
Application-specific traffic lights beads |
Pixel |
P31.25 |
Dimension |
Can be customized according to customer requirements |
Cabinet Material |
Aluminum or iron sheet metal |
Color |
single, dual, full color, optional |
Density |
1024 dots/m2 |
Brightness |
Manual or automatic multi -level brightness adjustment |
Watching Distance |
250M Static up to 300M, 250M dynamic up |
Control Way |
Asynchronous |
Communication Interface |
RS232/RS485/RJ45/GPRS/3G |
Rate of scan |
>120hz |
Lifespan |
100,000 hours |
Malfunction dot rate |
<1/10000 |
insulation resistance |
>100MΩ |
Hi-pot test |
Can withstand 1500V / 50Hz AC voltage for 1 minute without breakdown, pass |
Crash test |
Pass |
Vibration Test |
Pass |
Driving Mode |
Static constant |
IP Rank |
IP65 |
Working Humidity |
5%-95% |
Working Temperature |
-40℃~+75℃ |
Power supply |
AC220V±18% / 50Hz±10% AC380V±18% / 50Hz±10% |
Certification |
CE/FCC/ROHS |

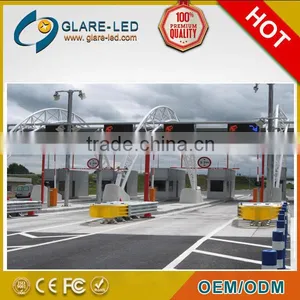

Picture of Outdoor LED for Road Sign Options
Outdoor LED for Road Sign Options Project for Reference:
Standard Wooden Box Packing make this Outdoor LED for Road Sign Options in the best condition:
1)TT 50% As deposit +50% Balance before shipping after examine goods.
2)West union, L/C at sight etc. are all ok.
3)In general, 5~7 days after deposit, Accurate production time depends on production schedule .
4)Sample will be shipped by DHL.
5)Normal export wooden and Carton case package .
6)We will always tracking and helping you get the best Outdoor LED for Road Sign Options Purchasing experience.
