P31.25 ITS Variable Message Sign From Glare-LED

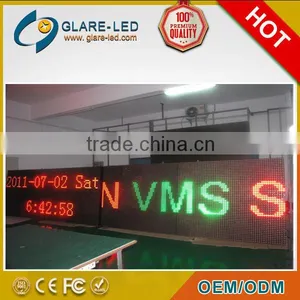

P31.25 ITS Variable Message Sign From Glare-LED thumbnail-1
P31.25 ITS Variable Message Sign From Glare-LED thumbnail-2
P31.25 ITS Variable Message Sign From Glare-LED thumbnail-3
P31.25 ITS Variable Message Sign From Glare-LED thumbnail-4

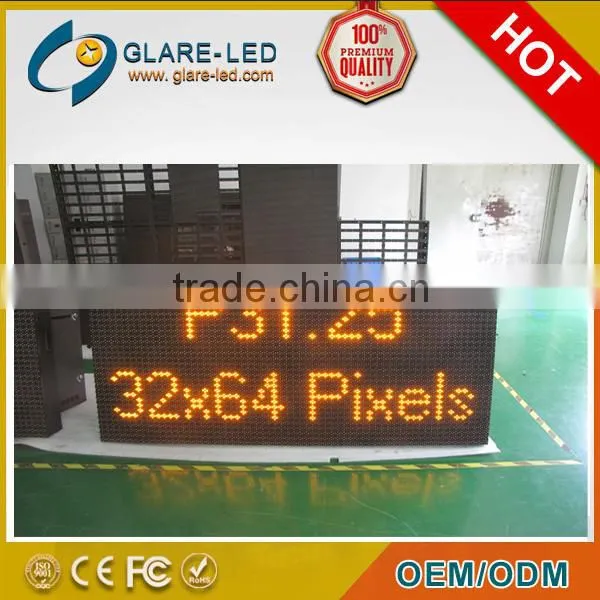

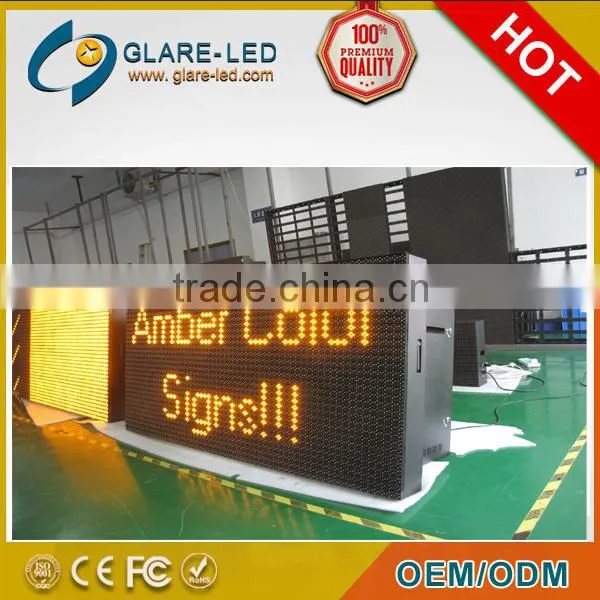

P31.25 ITS Variable Message Sign From Glare-LED photo-1
P31.25 ITS Variable Message Sign From Glare-LED photo-2
P31.25 ITS Variable Message Sign From Glare-LED photo-3
P31.25 ITS Variable Message Sign From Glare-LED photo-4
US$ 500 - 800 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Glare-LED
Model Number:
P31.25 Highway LED Display
Contact Supplier Request Quote Chat Now
Shenzhen Glare-LED Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Glare-LED
Model Number P31.25 Highway LED Display
Usage Outdoor
Tube Chip Color Other, single color,double color, red/amber/green/etc
Display Function Graphics
Pixels Other, 31.25
Screen Dimension 2x1m

P31.25  ITS Vavirable Message Sign from Glare-LED

P31.25 ITS Variable Message Sign from Glare-LED





P31.25 ITS Variable Message Sign from Glare-LED







Product Description

  VMS LED Traffic Display Spec



1.Physical Pitch(mm) 31.25 LEDs:4amber

2.resolution (pixel) 32X64

3.Physical Pixel Density(Pixel/m2) 1024

4.Pixel Configuration full color

5.LED wavelength   625+/-5nm

6.Brightness(cd/m2)  ≤7000 cd/sq.m

7.Cabinet pixels 32×32

8.Cabinet Weight 65KG

9.Supply Voltage  AC100~120V AC220~240V

10.Maximum Power Consumption(w/m2) 200(w/m2)

11.Average power Consumption(w/m2) 60(w/m2)

12.Operating Teperature -20~°C+50°C

13.Operating Humidity ≤95%

14.Horizontal Viewing Angle  > 100°

15.Vertical Viewing Angle 70°

16. Gray scale : Display colors >4096;12 bit /  color

17.Display colors 4A

18.IP Rating Front IP65

19.Viewing Distance (min,max) 25-500m

20.Regresh Rate(Frame per Second) 480HZ

21. Drive mode : Constant current; static scan

22.Blind LED lamp rate <0.00001 :

23.LED life( hours) 100,000

24.cabinet:mental or Aluminum frame can be choose





 VMS LED Traffic Display Technical parameters



Items

Parameters

LEDs

Application-specific traffic lights beads

Pixel

P31.25

Dimension

Can be customized according to customer requirements

Cabinet Material

Aluminum or iron sheet metal

Color

single, dual, full color, optional

Density

1024 dots/m2

Brightness

Manual or automatic multi -level brightness adjustment

Watching Distance

250M     Static up to 300M, 250M dynamic up

Control Way

Asynchronous

Communication Interface

RS232/RS485/RJ45/GPRS/3G

Rate of scan

>120hz

Lifespan

100,000 hours

Malfunction dot rate

<1/10000

insulation resistance

>100MΩ

Hi-pot test

Can withstand 1500V / 50Hz AC voltage for 1 minute without breakdown, pass

Crash test

Pass

Vibration Test

Pass

Driving Mode

Static constant

IP Rank

IP65

Working Humidity

5%-95%

Working Temperature

-40℃~+75℃

Power supply

AC220V±18% / 50Hz±10%

AC380V±18% / 50Hz±10%

Certification

CE/FCC/ROHS

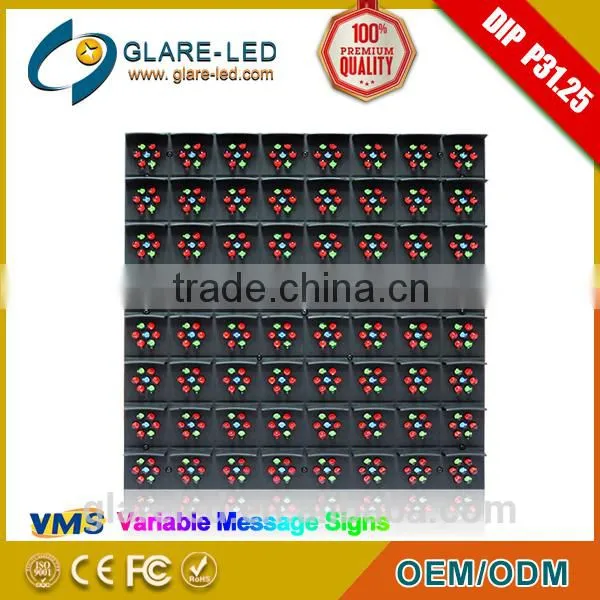

Picture of  VMS LED Traffic Display



P31.25 ITS Variable Message Sign from Glare-LED



P31.25 ITS Variable Message Sign from Glare-LED







P31.25 ITS Variable Message Sign from Glare-LED





Cases

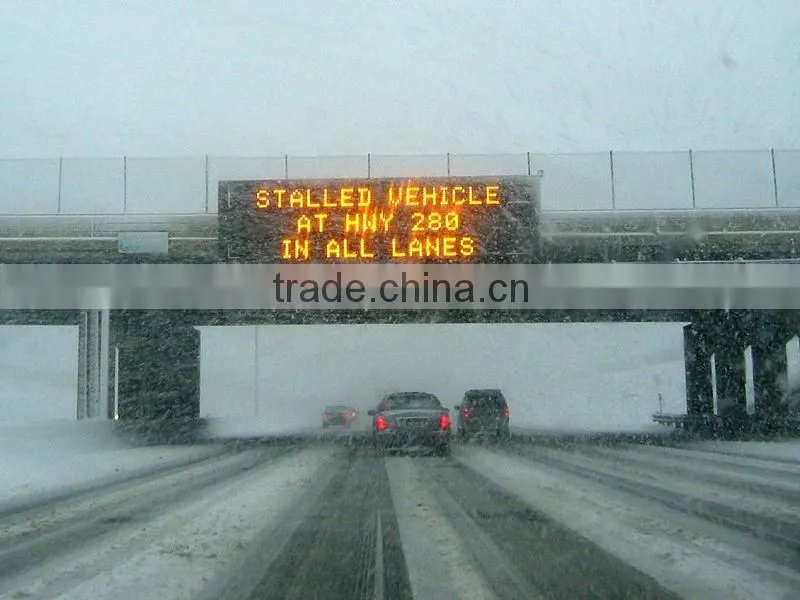

 VMS LED Traffic Display Project for Reference:





 P31.25 ITS Variable Message Sign from Glare-LED



Packaging & Shipping

  Standard Wooden Box Packing make this high way LED display  in the best condition:

P31.25 ITS Variable Message Sign from Glare-LED



P31.25 ITS Variable Message Sign from Glare-LED





1)TT 50% As deposit +50% Balance before shipping after examine goods.



2)West union, L/C at sight etc. are all ok.



3)In general, 5~7 days after deposit, Accurate production time depends on  production schedule .



4)Sample will be shipped by DHL.



5)Normal export wooden and Carton case package .



6)We will always tracking and helping you get the best Purchasing experience.
