2016 ITS Road Safety Traffic Control Vehicle Mounting LED Sign Board Dynamic Variable Message Signs
Features
1 High brightness LED Moving Message Sign: use ultra-high brightness LED, the display are still visible when exposure to direct sunlight.
2 High uniformity LED Moving Message Sign: good performance in uniformity, color consistency and clarity.
3 Good flatness LED Moving Message Sign: the flatness of module mounting surface must be in the range of ±0.1mm
4 Good effect: adopts not line proofread technology, so that the photo is more clear and arrangement is stronger
5 Patent mask LED Moving Message Sign: a unique design of lower inclination, reduce waste and increase the effective viewing angle;
6 Strong Reliability LED Moving Message Sign: the use of a variety of scanning technology and modular design techniques, with higher reliability and stability;
7 Stable board: PCB board using wave soldering process, with green oil and oxygen barrier, preventing the wet oxidation of the line, and improve the lifespan;
8 with 3-resisting lacquer: protect circuit boards and related equipment from the erosion of the environment; has good resistance to high temperature; after cured into a transparent protective film, with excellent insulation, moisture-proof, leak-proof, shock-proof dust, corrosion, aging resistance, corona and other properties;
9 Waterproof Glue: with automatic irrigation machines, to ensure the uniform, smooth, waterproof;
10 Rigorous testing: products through a series of strict inspection measures, such as raw materials inspection, production process inspection, product testing, and aging testing,etc.
Product list
Product Type |
Pixel Pitch |
Pixel Composition |
Resolution |
Encapsulation mode |
Consumption W/m2 |
View Angle |
Brightness |
Module Size(mm) |
|
Amber Single color |
P20
|
2A
|
8*16
|
perfect circle Ø5 |
200 |
30°/30° |
5000cd/m2 |
160*320 |
Dual Color |
P20 |
2R1G |
8*16 |
perfect circle Ø5 |
400 |
30°/30° |
13500cd/m2 |
160*320 |
Full color |
P20 |
2R1G1B |
8*16 |
perfect circle Ø5 |
600 |
30°/30° |
15000cd/m2 |
160*320 |
Technical parameters
Item |
Parameter |
LEDs |
LED for Traffic Usage |
Pixel |
P20 |
Dimension |
Customized |
Cabinet Material |
Aluminum or Iron |
Color |
Mono color,Double color,Full color available |
Density |
2500 dot/m2 |
Brightness |
Manual operation or Automatic different level adjustion |
Watching Distance |
Static 300M, Dynamic250M |
Control Way |
Asynchronous |
Communication Interface |
RS232/RS485/RJ45/GPRS/3G,,, |
Rate of scan |
>120hz |
Lifespan |
100,000 hours |
Malfunction dot rate |
<1/10000 |
insulation resistance |
>100MΩ |
Hi-pot test |
1500V/50Hz for 1 minute,No break,Pass |
Crash test |
Pass |
Vibration Test |
Pass |
Driving Mode |
Static constant current |
IP Rank |
IP65 |
Working Humidity |
5%-95% |
Working Temperature |
-40℃~+75℃ |
Power supply |
AC220V±18% / 50Hz±10% AC380V±18% / 50Hz±10% |
Certification |
CE/FCC/ROHS… |

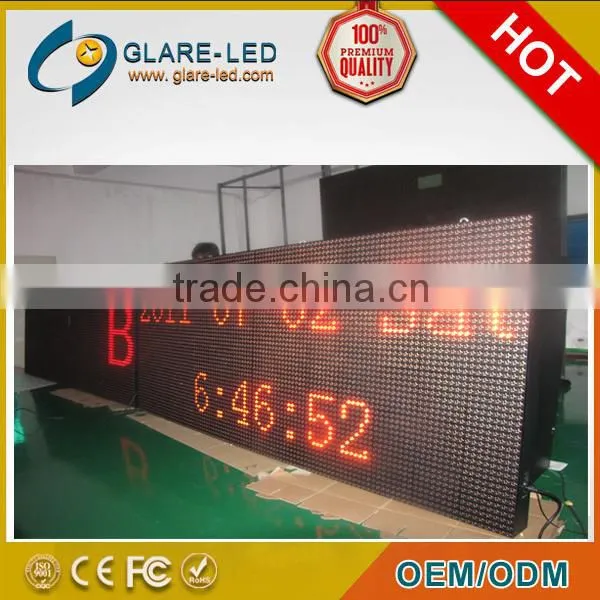

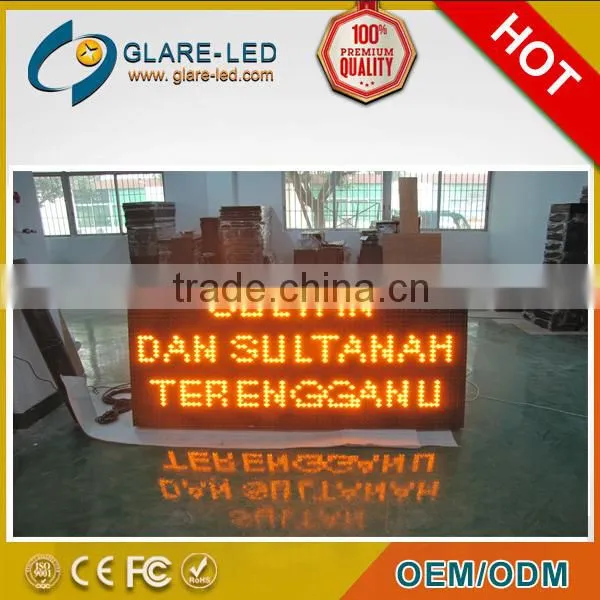

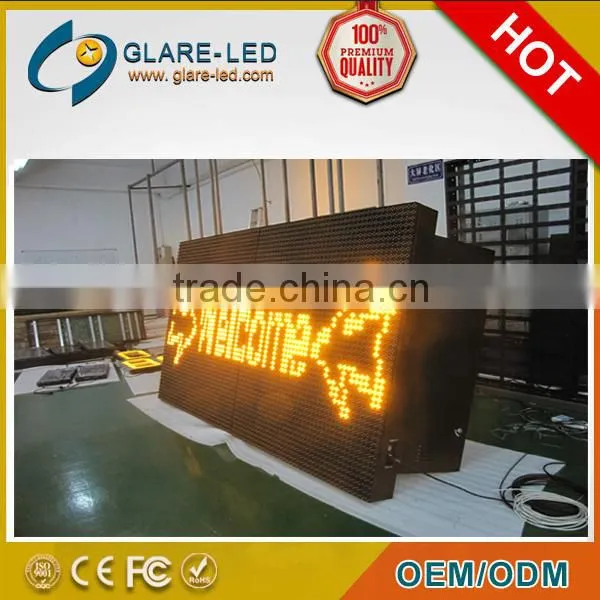

LED Moving Message Sign Project for Reference:
Standard Wooden Box Packing make this LED Moving Message Sign in the best condition:
1)TT 50% As deposit +50% Balance before shipping after examine goods.
2)West union, L/C at sight etc. are all ok.
3)In general, 5~7 days after deposit, Accurate production time depends on production schedule .
4)Sample will be shipped by DHL.
5)Normal export wooden and Carton case package .
6)We will always tracking and helping you get the best Purchasing experience.
