Help CenterP10 Led Module RGB Outdoor 160x160mm 320*160mm Outdoor Smd Rgb Full Color P10 Led Module
Related Products
-
Led Matrix 32X32 Led Dispplay Module P3 P4 P5 P6 P7.62 Indoor Smd Rgb Full Color Video Led Display ModuleUS$ 65 - 65MOQ: 500 Pieces -
P20 Led Display Module Led Display Panel Price Outdoor Advertising Led Display Screen for TransportationUS$ 100 - 200MOQ: 1 Piece
-
Full Color Outdoor Waterproof RGB P10 LED Panel ModuleUS$ 65 - 65MOQ: 500 Pieces
-
DIP346 LED Module P12 SMD LED Display ModuleUS$ 10 - 50MOQ: 2 Pieces
-
P6 Full Color SMD Programmable Video Led Display Outdoor Led ModuleUS$ 65 - 65MOQ: 500 Pieces
SMD P10 full color led message display full color module
Start From Questions :
Q: What is a Outdoor LED Display Screen?
A: A LED screen is a video display which uses light-emitting diodes. An LED panel is a small display, or a component of a larger display or screen. They are typically used outdoors in store signs and billboards, and in recent years have also become commonly used in destination signs on public transport vehicles. LED panels are sometimes used as form of lighting, for the purpose of general illumination, task lighting, or even stage lighting rather than display.
For outdoor use, at least 2,000 cd/m² is required for most situations, whereas higher-brightness types of up to 5,000 cd/m² cope even better with direct sunlight on the screen. (The brightness of LED panels can be reduced from the designed maximum, if required.)
Q: How much does a LED screen or LED display cost?
The price or cost of a LED screen, LED display or electronic billboard depends on two variables. Those two variables are the total size of the LED screen, and the total resolution of the LED screen.
1>: The total size of the LED screen: The bigger or larger the LED screen the higher the cost. The prices are based on USD/sqm, which means that if the total size is 24sqm, the price will be 24 multiplied by the cost per sqm.
2>: The total resolution of the screen: The more pixels, or the more number of LED´s, the screen has the higher the cost will be. For example if a screen is 12sqm and has 49,000 pixels, it will be cheaper if the LED screen is 12sqm with 120,000 pixels. This is because more LED lamps will be placed onto the screen which is a higher cost. But on the other hand the more LED´s the screen has, the higher the detail will be of the videos and images that the LED screen will be publishing.
Specifications for outdoor hot sales top performance led display
| Specification | PH8 | PH10 | H16 | |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | |
| Density of pixel | 1/4 scan | 1/4 scan | Static | |
| Module Resolution | 32*16(W*H) | 16*16(W*H) | 16*8(W*H) | |
| Pixel density | 15625 | 10000 | 3906 | |
| Pixel Pitch | 8mm | 10mm | 16mm | |
| Best Viewing Distance | 6-12m | 7.5-15m | 12-24m | |
| Module Size(mm) | 320*160 | 160*160 | 256*128 | |
| Cabinet Size(mm) | 960*960 | 960*960 | 1024*768 | |
| Weight | 55Kg | 55Kg | 47Kg | |
| Working Voltage | AC220/110 ± 10%, 47~63Hz | |||
| Frame rate | 60Hz | |||
| Refresh rate | >1200Hz | |||
| Waterproof Rate | IP65 | |||
| Maxim Power | <450W | |||
| Average Power | <115W | |||
| Visual input | VGA mapped / NTSC/PAL | |||
| Input signal | S-video,VGA,PGB,Composite Video,SDI etc | |||
| Viewing Angle | Horizontal:≥ 120° Vertical:≥60° | |||
| Brightness | >8500 cd | |||
| Working Temperature | -20ºC to +60ºC | |||
| Control mode | Synchronized with PC | |||
| Continuous working time | >48 hours | |||
| Scotoma Rate | <0.0002 | |||
| Operating humidity | 20% to 90% | |||
| Lifespan (50% Brightness) | 100,000 hours | |||

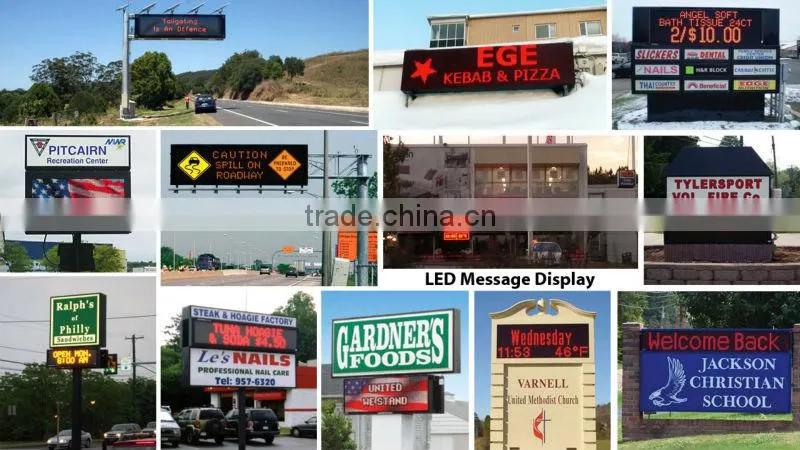

LED message display

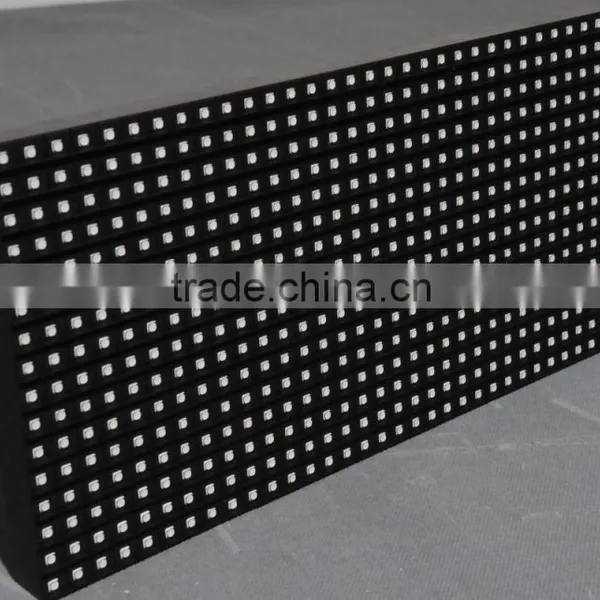

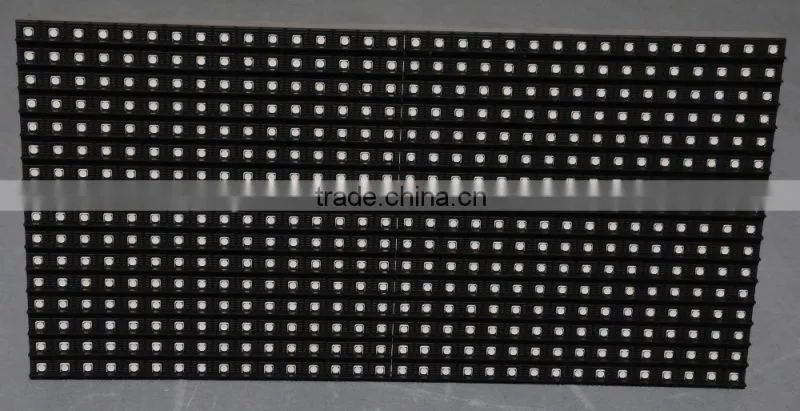

Module show

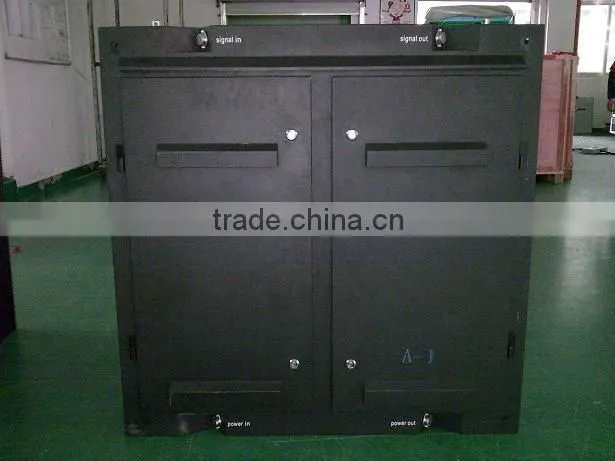

Cabinet design by ourself
