Full Color Outdoor Waterproof RGB P10 LED Panel Module

Name: Full Color Outdoor Waterproof RGB P10 LED Panel Module
Brand: GLARE-LED
SKU: 131627471
Availability: InStock

US$ 65 - 65 MOQ: 500 Pieces

Key Specifications

Model Number:

P10

Chip Material:

AlGaInP

Emitting Color:

Tri-Color(Red-Blue-Green)

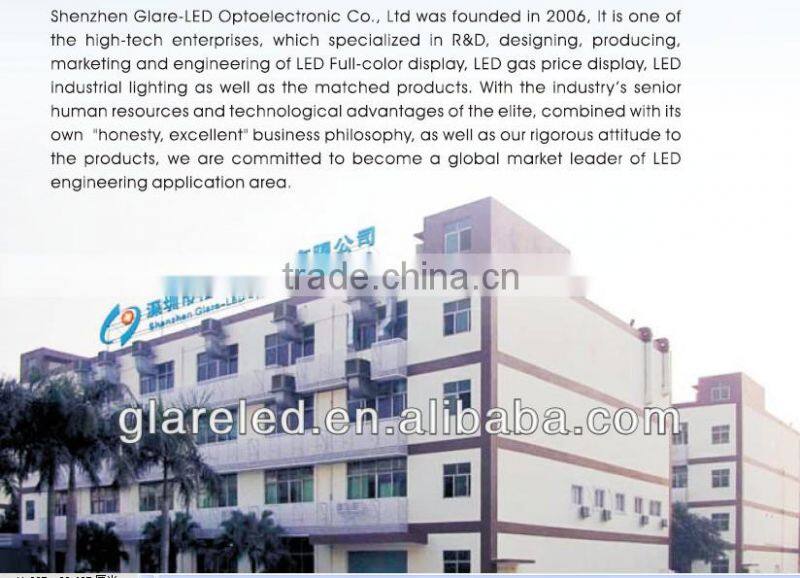

Shenzhen Glare-LED Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Model Number P10

Chip Material AlGaInP

Emitting Color Tri-Color(Red-Blue-Green)

Color Temperature RGB

Operating Temperature(℃) -20, 40

Storage Temperature(℃) -40, 60

Place of Origin Guangdong, China

Brand Name GLARE-LED

Certification CE

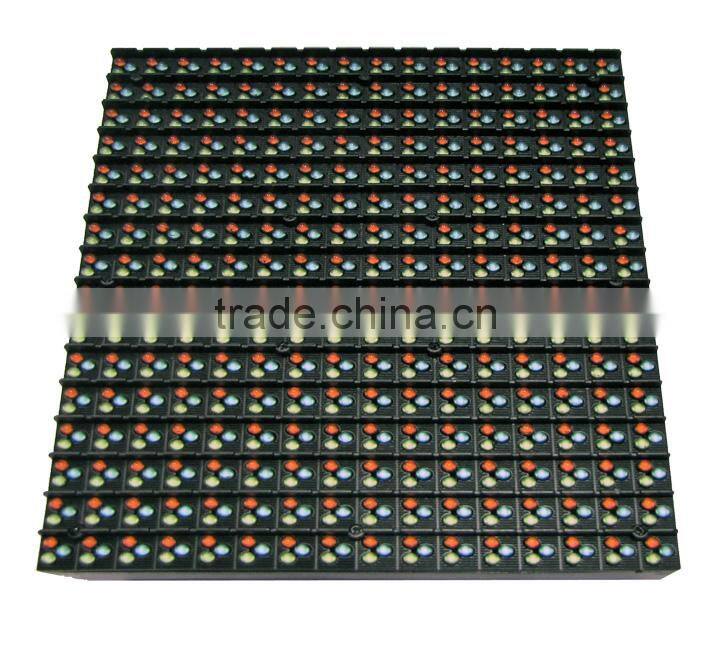

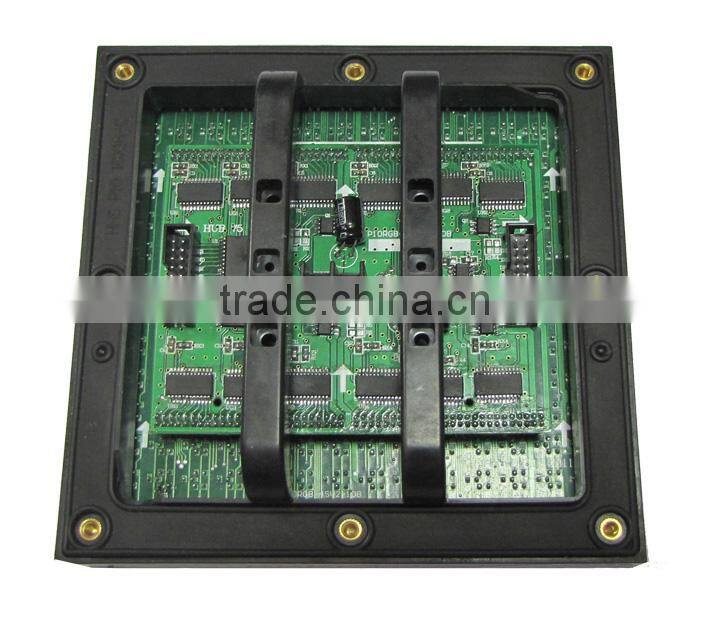

Full Color outdoor waterproof RGB P10 LED Panel Module

Professional manufacturerd outdoor led P10 modules full color hot sale!!!

Specification of Outdoor LED display
Classification	PH10	PH12	PH14	PH16	PH18	PH20	PH22	PH25	PH31.25
Pixel pitch(mm)	10(physical)	12(physical)	14(physical)	16(physical)	18(physical)	20(physical)	22(physical)	25(physical)	31.25
Pixel pitch(mm)	10(physical)	6(virtual)	14(physical)	8(virtual)	18(physical)	10(virtual)	22(physical)	12.5(virtual)	31.25
Pixel configuration	1R1G1B	2R1G1B	2R1G1B	2R1G1B	2R1G1B	2R1G1B	2R1G1B	2R1G1B	4R2G2B
LED package	DIP346	DIP346	DIP546	DIP546	DIP546	DIP546	DIP546	DIP546	DIP546
Pixel denstiy/ sqm	10000dots	6844dots	5102dots	3906dots	3086 dots	2500dots	2066dots	1600dots	1024dots
Pixel denstiy/ sqm	10000dots	27777 dots	5102dots	15625 dots	3086 dots	10000dots	2066dots	6400dots	1024dots
Module size(mm*mm)	320*160	192*192	224*112	256*128	288*144	320*160	352*176	200*200	125*250
Module pixel( dots)	32*16	16*16	16*8	16*8	16*8	16*8	16*8	8*8	4*8
Standard size of cabinet(mm*mm)	1280*960	1152*768	896*896	1024*768	1152*864	1280*960	1056*1056	1000*1000	1000*1000
Cabinet pixel( dots)	128*96	96*64	64*64	64*48	64*48	64*48	48*48	40*40	32*32
Best view angle	110°	110°	110°	110°	110°	110°	110°	110°	110°
Maximum power comsuption(W/sqm)	750	700	600	1000	950	900	700	600	600
Brightness cd/sqm	≥8 000	≥8000	≥8000	≥ 7500	≥ 6500	≥ 60 00	≥ 5500	≥5000	≥ 5500
Driving method	1/4 constant driving		1/2 contant driving	Constant static
Display color	256256256
Refresh frequency	300HZ
Frame frequency	60HZ
Protection Level	Front: IP 65; back: IP43
Working Voltage	AC220/110±10%
Working environment temperature	-40º degree - +50º degree
Life span	>100000hours
