P20 LED module VMS billboards P20 led display module led display panel price outdoor advertising led display screen for transportation

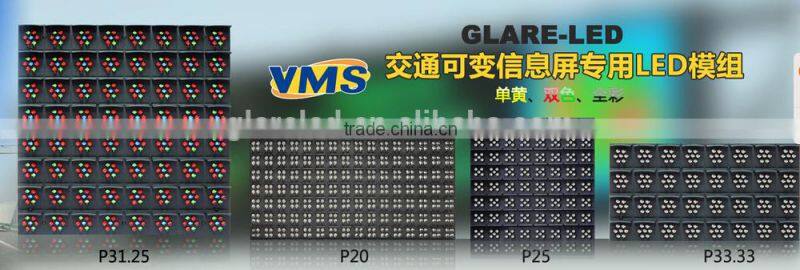

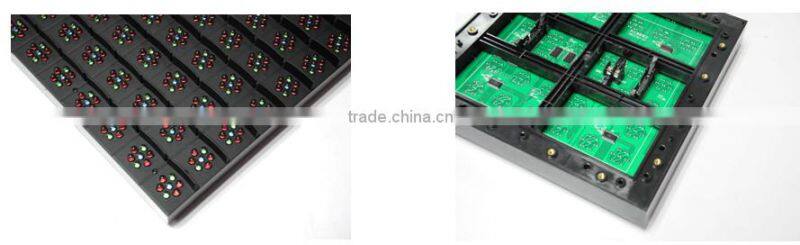

P20 led display module Product Picture:
P20 led display module Product list
Product Type |
Pixel Pitch |
Pixel Composition |
Resolution |
Encapsulation mode |
Consumption W/m2 |
View Angle |
Brightness |
Module Size(mm) |
|
Amber Single color |
P20
|
2A
|
8*16
|
perfect circle Ø5 |
200 |
30°/30° |
5000cd/m2 |
160*320 |
Dual Color |
P20 |
2R1G |
8*16 |
perfect circle Ø5 |
400 |
30°/30° |
13500cd/m2 |
160*320 |
Full color |
P20 |
2R1G1B |
8*16 |
perfect circle Ø5 |
600 |
30°/30° |
15000cd/m2 |
160*320 |
P20 led display module Technical parameters
Item |
Parameter |
LEDs |
LED for Traffic Usage |
Pixel |
P20 |
Dimension |
Customized |
Cabinet Material |
Aluminum or Iron |
Color |
Mono color,Double color,Full color available |
Density |
900 dot/m2 |
Brightness |
Manual operation or Automatic different level adjustion |
Watching Distance |
Static 300M, Dynamic250M |
Control Way |
Asynchronous |
Communication Interface |
RS232/RS485/RJ45/GPRS/3G,,, |
Rate of scan |
>120hz |
Lifespan |
100,000 hours |
Malfunction dot rate |
<1/10000 |
insulation resistance |
>100MΩ |
Hi-pot test |
1500V/50Hz for 1 minute,No break,Pass |
Crash test |
Pass |
Vibration Test |
Pass |
Driving Mode |
Static constant current |
IP Rank |
IP65 |
Working Humidity |
5%-95% |
Working Temperature |
-40℃~+75℃ |
Power supply |
AC220V±18% / 50Hz±10% AC380V±18% / 50Hz±10% |
Certification |
CE/FCC/ROHS… |

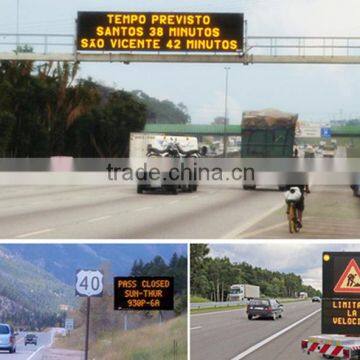

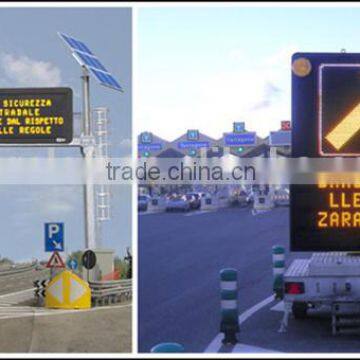

P20 led display module Project Cases
P20 led display module Specification:
| Item | Parameters | ||||||||||||||
| LED lamp | Special design traffic LEDs | ||||||||||||||
| Pixel pitch | P16,P20,P25,P31.25,P33.33 | ||||||||||||||
| Display size | Customized | ||||||||||||||
| Cabinet caterial | Aluminum or Cold rolled steel | ||||||||||||||
| Display color | Single color/Tri-color/Fullcolor(Optional) | ||||||||||||||
| Dimming | Manual or automatic multistage brightness control | ||||||||||||||
| Viewing distance | over 300M | ||||||||||||||
| Control mode | Asynchronous | ||||||||||||||
| Communication interface | RS232/RS485/RJ45/GPRS/3G,,, | ||||||||||||||
| Scan frequency | >120hz | ||||||||||||||
| LED screen lifespan | 100,000 hours | ||||||||||||||
| Out-of control pixel | <1/10000 | ||||||||||||||
| Scanning mode | Static constant | ||||||||||||||
| Waterproof level | IP65 | ||||||||||||||
| Working humidity | 5%-95% | ||||||||||||||
| Working temperature | -40℃~+75℃ | ||||||||||||||
| Input voltage | AC220V±18% / 50Hz±10% | ||||||||||||||
| AC380V±18% / 50Hz±10% | |||||||||||||||
| Certification | CE/FCC/ROHS | ||||||||||||||
Export Market Distribution ( Previous Year )
| Market | Percentage of total sales | Countries or Areas |
| USA | 40% | L.A.Georgia |
| Europe | 15% | Germany |
| Asia | 5% | Malaysia,Philippine |
| Africa | 15% | south Africa |
| Middle-East | 5% | Lebanon |
| Others | 3% | Portugal |
| Total in sales | 83% |
Certification
Our service
Glare-LED provides user with high-quality LED products by adhering to the responsibility of "for customers, for employees, and for societ",
having "attentive, professional, and concentration" job manner, to provide customers with excellent products and first-class service.
Company information
Shenzhen Glare-LED Optoelectronic Co.,Ltd is one of the high-tech enterprises, which specialized in R&D, designing,producing,marketing and engineering of LED display as well as the related LED products.
With the industry's senior human resources and technological advantages of the elite, combined with its own "integrity first, quality first, service first" business philosophy,as well as our rigorous attitude to the products, we has become a well-known integrated LED products manufacturing company at home and abroad.
Contact Information:
If you want to know more about our products and company, welcome to contact us at any time, and welcome to visit our company!
