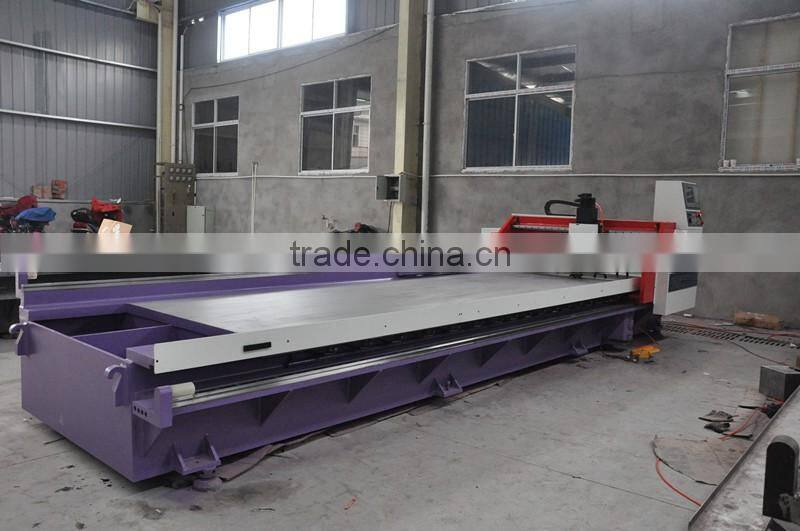

Help CenterSheet Metal V Slotting Machines for Cabinets Door
Related Products
-
V Groover MachineUS$ 28,000 - 28,000MOQ: 1 Set -
V Groovering MachineNegotiableMOQ: 1 Set
-
V Grooving Machine or V Groover Machine With Easy OperationUS$ 28,000 - 28,000MOQ: 1 Set
-
Stainless Steel ELEVATOR CNC v Groove Cutting Machine 4000mm , v Groove Bending MachineUS$ 28,000 - 28,000MOQ: 1 Set
-
Driving Type CNC V Groove Cutting MachineUS$ 36,000 - 36,000MOQ: 1 Set
1, Main Parameter
|
Parameter |
Unit |
||
1 |
Processing Capacity |
Max. Length |
4000 |
mm |
Max. Width |
1500 |
mm |
||
Max. Grooving Thickness |
4 |
mm |
||
Min. Grooving Thickness |
0.6 |
mm |
||
2 |
X shaft |
Max. Travel |
≥4000 |
mm |
Cutting Speed |
45000 |
mm/min |
||
Returning Speed |
65000 |
mm/min |
||
3 |
Y shaft
|
Max. Travel |
≥1500 |
mm |
Movement Speed |
20000 |
mm/min |
||
4 |
Z shaft |
Max. Travel |
≥100 |
mm |
Movement Speed |
20000 |
mm/min |
||
5 |
X shaft |
Motor Power |
5.5 |
KW |
6 |
Controlled shaft(X,Y1,Y2,Z) |
3+1 |
Pc |
|
7 |
Machine Weight |
8000 |
kg |
|
8 |
Dimension |
Length |
6000 |
mm |
Width |
2000 |
|||
Height |
650 |
|||
2. Structure characteristics

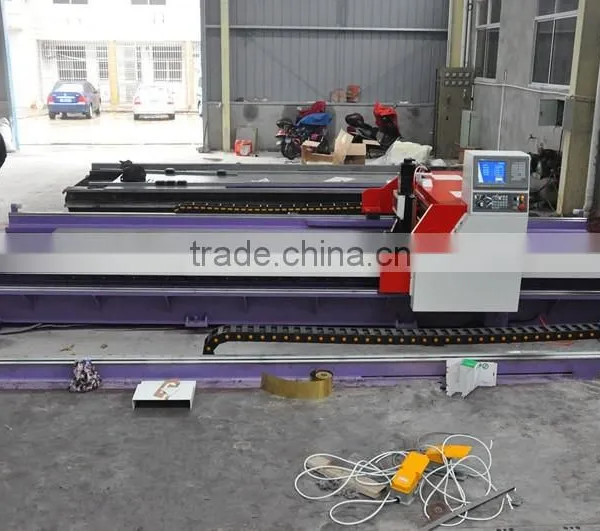

This machine is composed of machine base, - beam, turret, CNC system, air pressure feeding system, compressed air blowing system etc., for the gantry-travelling structure.
Frame, beams are made of box type structure, the finite element optimization design, all steel welded prior to milling machine, fully guarantee that no gaps between the board and the board, welding after tempering furnace to eliminate the residual stress, rigidity, good precision, long service life.
The forward-backward knife rest (Y1 shaft) movement, up-down knife rest (Z shaft) movement, forward-backward end pressure (Y2 shaft) movement are controlled by CNC system, AC servo motor, ball screw drive. It has the advantages of high control accuracy, positioning precision.
3. Performances
Has a stable, solid, features convenient use etc..
Multi parameter - control system has, large memory capacity, convenient operation.
With 4 knife cutting structure, which can greatly improve the work efficiency, and can improve the machining quality of the products.
Using motion system of ball screw, linear guide, improve the machine precision and durability.
4. Pneumatic system
Pneumatic system design, compact structure, strong sealing performance, long service life.
Imported pneumatic components, good sealing performance, low noise, fast response, good environment adaptability.
5. Electrical control system
Electrical components in line with international standards, safety and reliability, strong anti-interference ability.
Electric control adopts programmable controller, frequency conversion governor, non-contact operation, safety and reliability, long service life.
The main components of world famous brand products.
6. Before the pressure foot, lateral foot
The presser foot by quenching treatment, not easy to deformation.
7. Workbench
Adaptive work table, after process and special process, greatly improving the service life, such as improper operation table uneven situation, the machine has the function of self repair table.
welcome to visit our factory!
