CE, FCC, ROHS Approved constant current 700mA RGB controller for rgb led light

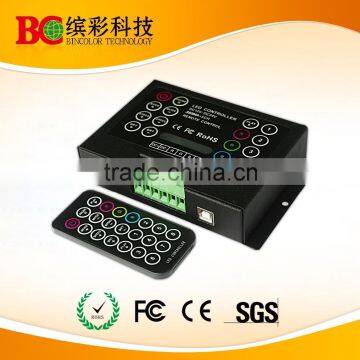

BC-380-700 , it is constant current rgb controller, it can control color changes of LED lights with 4-
pin 3-loop cables (common anode), with 18 changing mode, user can control changs by button on
the controller, or by IR REMOTE CONTROLLER.
Feature:
- Working form voltage DC12V~48V.
- 3-channel RGB full color control. maximum outputs 700mA per Channel.
- 256 Grey scales per RGB, color-smooth effect is gentle and accurate
- With 21 Buttons IR Wireless remote control
- power loss momery function
- 0-100% dimming
Specification:
| Name | Value |
| Brand | Bincolor |
| Model | BC-380-700 |
| Production Capacity | 5000Piece/Pieces per Month |
| Input voltage | DC 12V-DC48V |
Max load current |
700mA/CH*3 |
| Driving LEDS |
12V:1-3pcs 3W LED
24V:1-6pcs 3W LED
36V:1-9pcs 3W LED
48V:1-12pcs 3W LED |
| Changing mode | 18 mocdes |
Working Temperature |
-30°C~65°C |
| Certification | CE ,FCC ROSH |
| Dimension(L*W*H) | L142xW73xH30 mm |
| Weight | 350g |
| Scale level | 256/CH*3 |
|
Application |

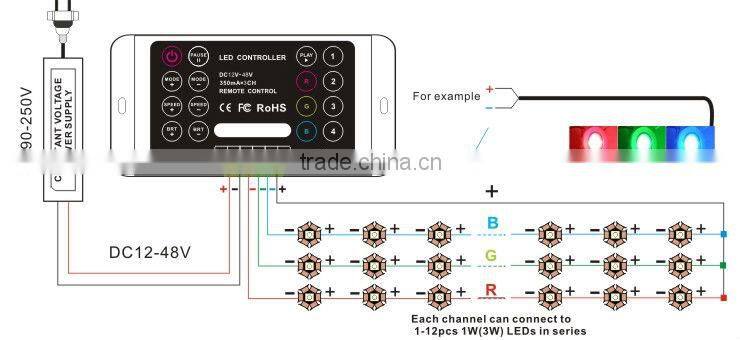

1. Connecting with 1w/3w led as sample :

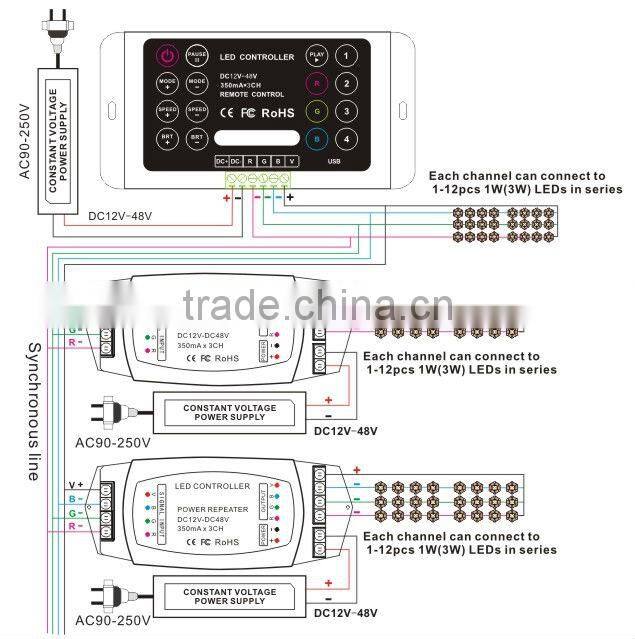

2. Connecting with led power repeater :
|
Shipping |
1.EMS/DHL/FEDEX/UPS and so on
2.EXPRESS: around 5-7 working days to arrived
|
Certification |
|
Packing |
After inspection the goods are packed in inner box and then carefully packed in cartons.
|
Services |
- Professional advice according to your needs.
- Instant response to your inquiries.
- Short lead-time, quick delivery.
- Three years warranty for all of our products.
- Samples orders, OEM/ODM orders are also welcomed
|
