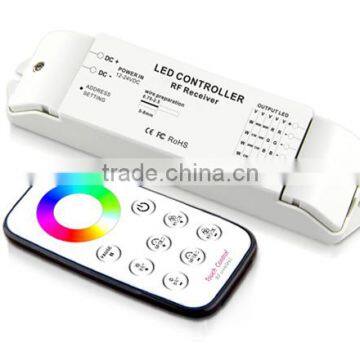

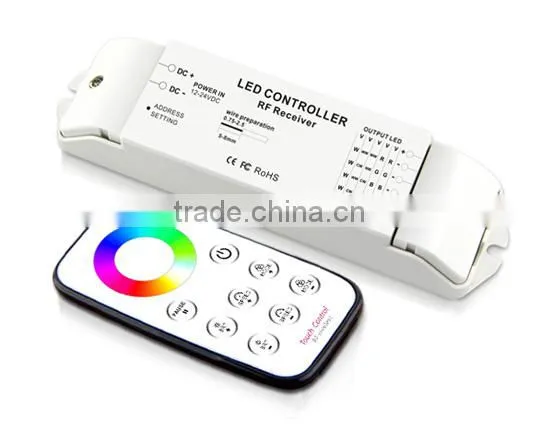

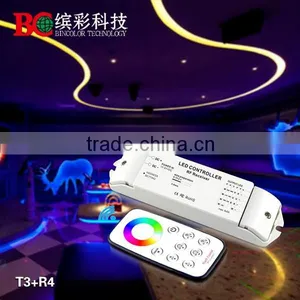

T3+R4 full color RGB touch circle remote led rgb controller with rf touch remote
This T Series Wireless remote is dedicated to controlling led lamps by RF radio frequency;
there are several functions on the remote, such as on-off, pause, modes changing, brightness and
speed adjustment etc; the wireless signal is with strong penetrating power, no limit to direction or
obstacles. With our R Series Reveiver, it is easy to change lamp lights such as: dimming, color
temperature, RGB/RGBW etc; thus can satisfy the different demands of clients. T series have a
simplefashion design, comfortable hand feeling, and user friendly.
Specification :
Model | Wireless Remote(T1/T2/T3/T4/T5) |
Working Voltage | 3V(CR2032) |
Working Frequency | 433.92MHz |
Remote Distance | 40m-50m |
Working Temp | -20-55℃ |
Dimensions | L106×W56×H9(mm) |
Weight(N.W.) | 40g |
Model | Receiver(R4) |
Compatible Remote | T1/T2/T3/T4/T5 |
Working Voltage | DC12V-DC24V |
Output Current | Max 5A×4CH |
Output Power | Max 240W(12V)/480W(24V) |
Working Temp | -30℃-55℃ |
Dimensions | L176×W46×H30(mm) |
Weight(N.W.) | 145g |
Feature:
1. Automatically adapt to LED light which works from DC12V-24V.
2. The receiver can implement features such as dimming, RGB/RGBW and color temperature control.

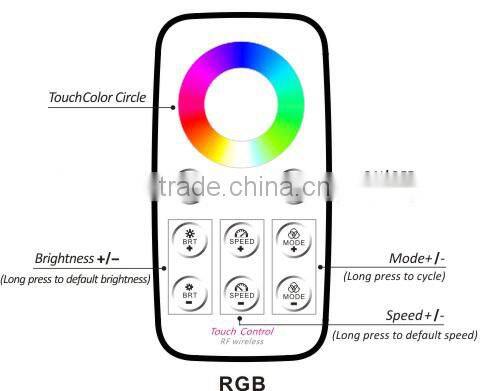

3. Using RF remote control , the wireless signal is with strong penetrating power, no limited to direction or obstacles, and can control the multi function of ON/OFF, pause ,change mode , brightness and speed ,etc.
4. 10 strobe&fade change mode , with 4096 grey scales per channel, led lamp is more rich and vivid without flash .

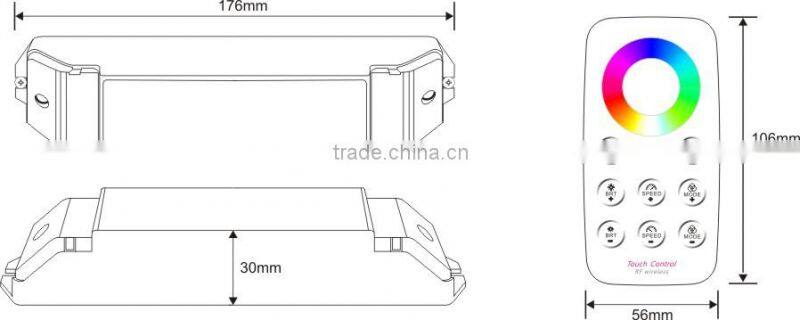

Dimension:

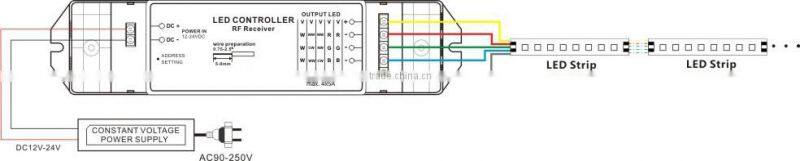

Typical Wiring Schematics:
The Learning ID Method of Remote Control:
Remote control has been matched to the receiver before leave factory,if deleted accidentally,
you can learn ID as follow.
Learning ID: Press ID learning button on the receiver until the running light is on,then press
any key on the remote control,the running light flashes several times,activated.
Cancel ID: Press ID learning button on the receiver for 5 seconds.
Notice: The remote control will enter dormant status without operation for 30 seconds, please press any key to reactive it.

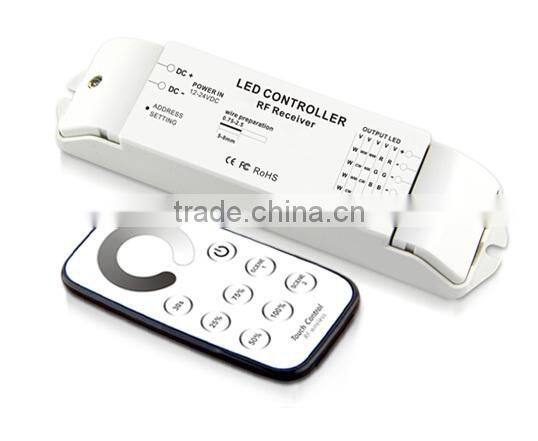

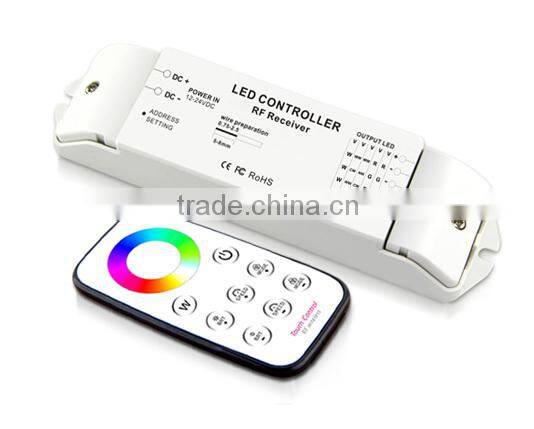

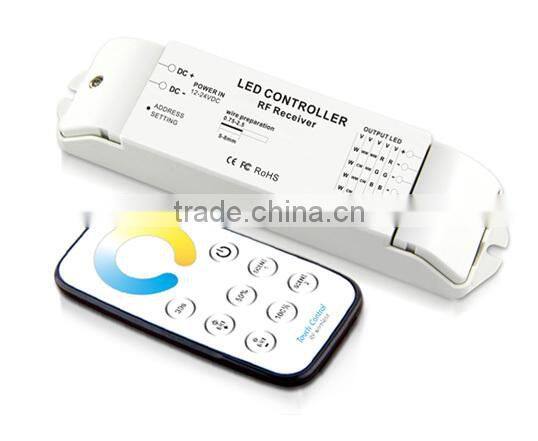

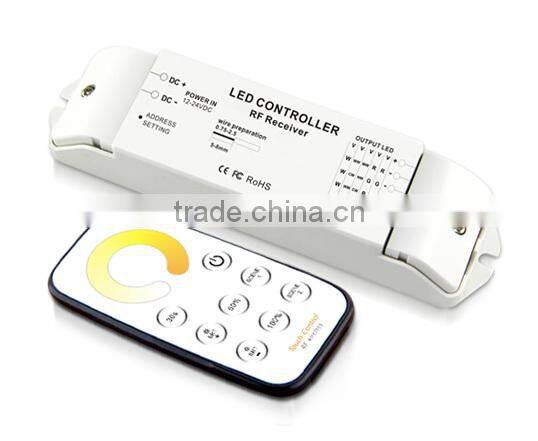

More T series:
After inspection the goods are packed in white inner box and then carefully packed in cartons.
1. Professional advice according to your needs.
2. Instant response to your inquiries.
3. Short lead-time, quick delivery.
4. Three years warranty for all of our products.
5. Samples orders, OEM/ODM orders are also welcomed.
We are leading Manufacturer of LED controllers in Zhuhai, Guangdong province, China.
We are small, flexible and loyal. Ideal partner of your customize order.
We are strong in developing OEM and ODM projects, and customer's rights are the first things we consider about.
We are very competitive in price , well reputed for quality product and prompt delivery.
Welcome to discuss more in details.
