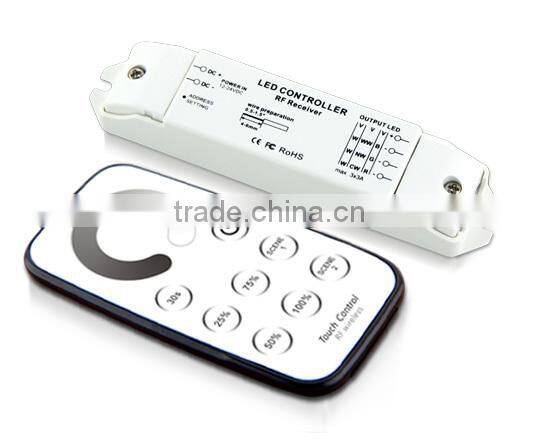

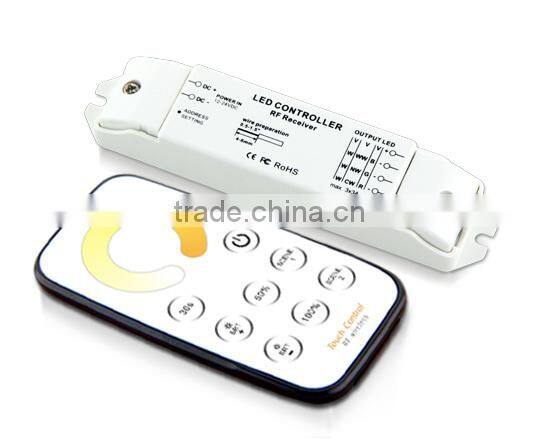

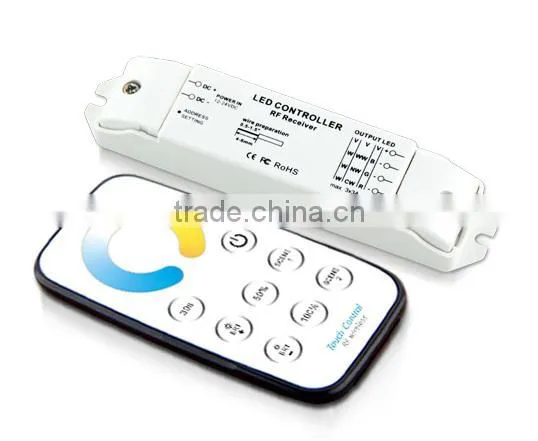

T5+R3 Mini led CT dimmer CW NW WW touch remote control CT controller DC12V-24V

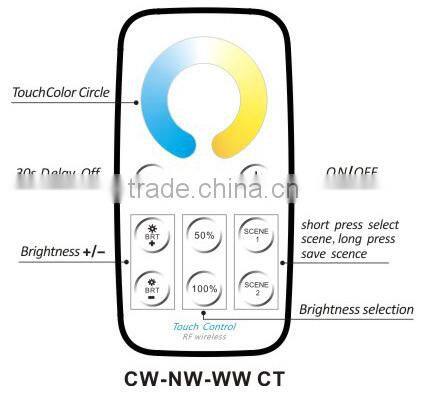

This T Series Wireless remote is dedicated to controlling led lamps by RF radio frequency;
there are several functions on the remote, such as on-off, pause, modes changing, brightness and
speed adjustment etc; the wireless signal is with strong penetrating power, no limit to direction or
obstacles. With our R Series Reveiver, it is easy to change lamp lights such as: dimming, color
temperature, RGB etc; thus can satisfy the different demands of clients. T series have a simple
fashion design, comfortable hand feeling, and user friendly.

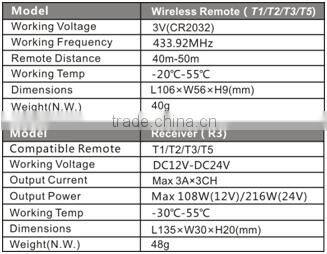

Specification :
Feature:
1. Automatically adapt to LED light which works from DC12V-24V.
2. The receiver volume is only 1/3 of the conventional controller, but can implement features such as dimming, RGB and color temperature control.
3. Using RF remote control, the wireless signal is with strong penetrating power, no limited to direction or obstacles, and can control the multi function of ON/OFF, pause, change mode , brightness and speed etc.
4. 10 strobe&fade change mode , with 4096 grey scales per channel, led lamp is more rich and vivid without flash.

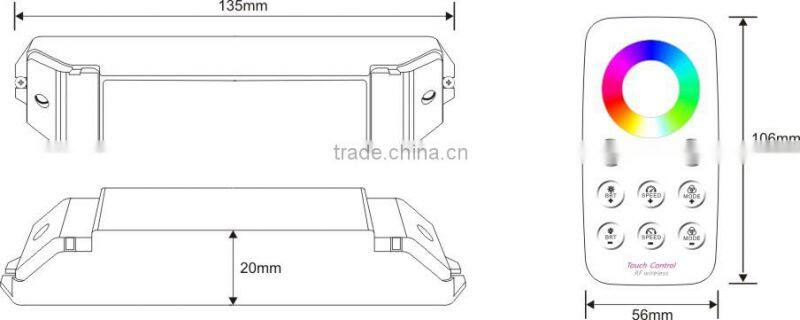

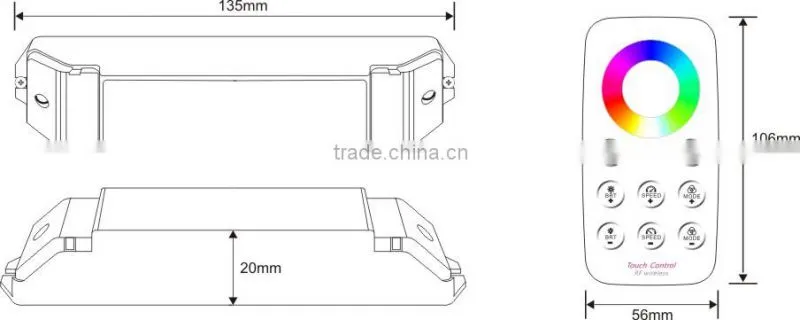

Dimension:

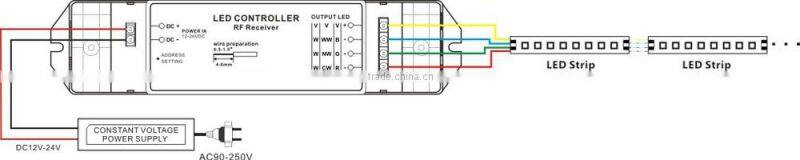

Typical Wiring Schematics:
The Learning ID Method of Remote Control:
Remote control has been matched to the receiver before leave factory,if deleted accidentally,
you can learn ID as follow.
Learning ID: Press ID learning button on the receiver until the running light is on,then press
any key on the remote control,the running light flashes several times,activated.
Cancel ID: Press ID learning button on the receiver for 5 seconds.
Notice: The remote control will enter dormant status without operation for 30 seconds, please press any key to reactive it.
More T series:
After inspection the goods are packed in white inner box and then carefully packed in cartons.
1. Professional advice according to your needs.
2. Instant response to your inquiries.
3. Short lead-time, quick delivery.
4. Three years warranty for all of our products.
5. Samples orders, OEM/ODM orders are also welcomed.
We are leading Manufacturer of LED controllers in Zhuhai, Guangdong province, China.
We are small, flexible and loyal. Ideal partner of your customize order.
We are strong in developing OEM and ODM projects, and customer's rights are the first things we consider about.
We are very competitive in price , well reputed for quality product and prompt delivery.
Welcome to discuss more in details.
Any question, welcome to contact me, all question will be answered within 24 hours or immediately on instant contact!
Skype: bincolor3
Sample order please access to our online shop: /store/2056
