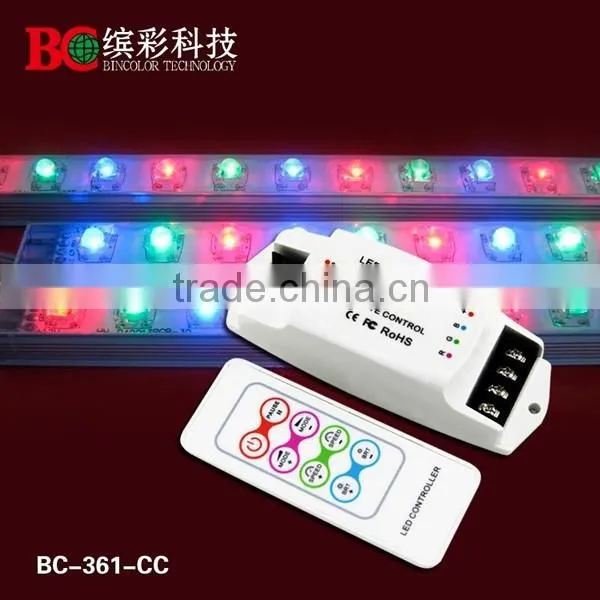

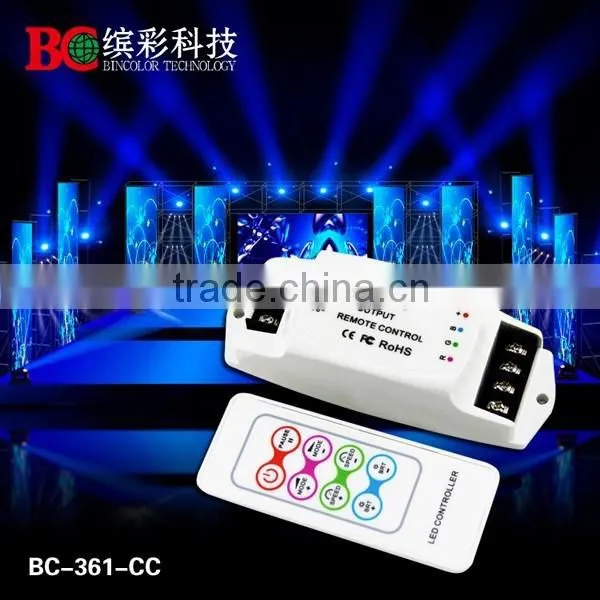

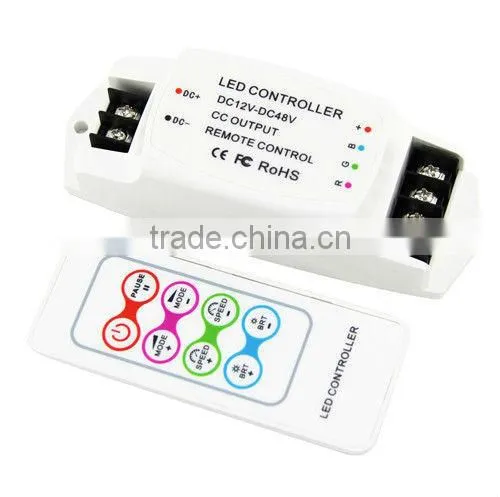

350mA/CH*3channels RF Remote Control Mini led rgb controller
Introduction :
BC-361-350 is constant current RGB controller for entire color changing, which adopted high
performance microchip and the most advanced PWM controlling technology at present.
It can control all 4-pin 3-loop LED RGB full color lights. This series with RF remote controller and it is
available only within the valid range.
Specification :
|
Model |
Constant current 350mA |
Constant current 700mA |
|
Input voltage |
DC12V-DC48V |
DC12V-DC48V |
|
Max current load |
350MA/CH×3 |
700MA/CH×3 |
Driving LEDs/ CH |
12V: 1-3pcs 1W LED |
12V: 1-3pcs 3W LED |
|
Scale levels |
4096 level/CH×3 |
4096 level/CH×3 |
|
Product Dimension |
L125xW45xH36(mm) |
L125xW45xH36(mm) |
|
Weight (G.W) |
100g |
100g |
|
Remote control distance |
30m with obstacles; 60m without obstacles |
30m with obstacles; 60m without obstacles |
|
Control type |
Common Anode |
Common Anode |

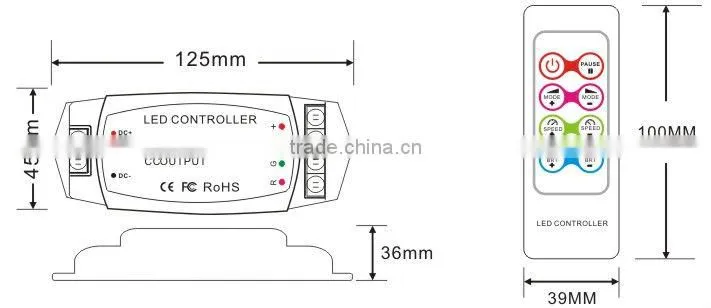

Dimensions:

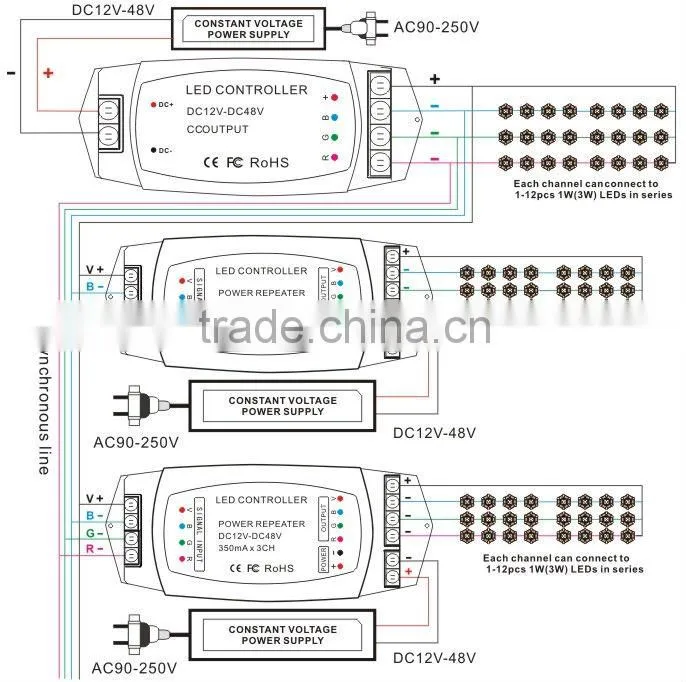

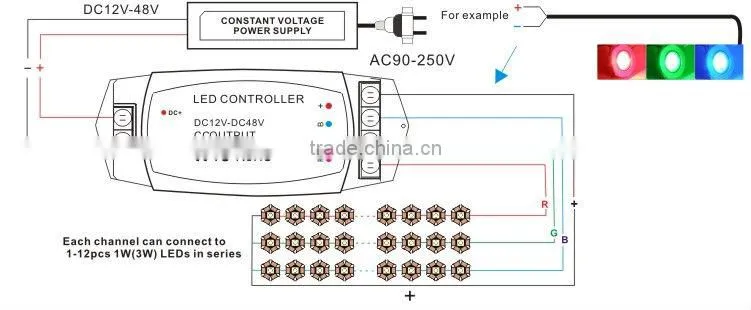

Typical Wiring Schematics:
1. RGB controller connect to RGB LED lights.
2. RGB controller connect to LED lights and amplifiers.
After inspection the goods are packed in white inner box and then carefully packed in cartons.
1. Professional advice according to your needs.
2. Instant response to your inquiries.
3. Short lead-time, quick delivery.
4. Three years warranty for all of our products.
5. Samples orders, OEM/ODM orders are also welcomed.
We are leading Manufacturer of LED controllers in Zhuhai, Guangdong province, China.
We are small, flexible and loyal. Ideal partner of your customize order.
We are strong in developing OEM and ODM projects, and customer's rights are the first things we consider about.
We are very competitive in price , well reputed for quality product and prompt delivery.
Welcome to discuss more in details.
Any question, welcome to contact me, all question will be answered within 24 hours or immediately on instant contact!
