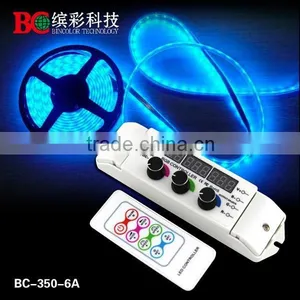

DC12V-24V Led Lamp Rgb Controller Led Module Controller Wireless Remote Rotary Knob Manual Switch photo-1
DC12V-24V Led Lamp Rgb Controller Led Module Controller Wireless Remote Rotary Knob Manual Switch photo-2
DC12V-24V Led Lamp Rgb Controller Led Module Controller Wireless Remote Rotary Knob Manual Switch photo-3
DC12V-24V Led Lamp Rgb Controller Led Module Controller Wireless Remote Rotary Knob Manual Switch photo-4

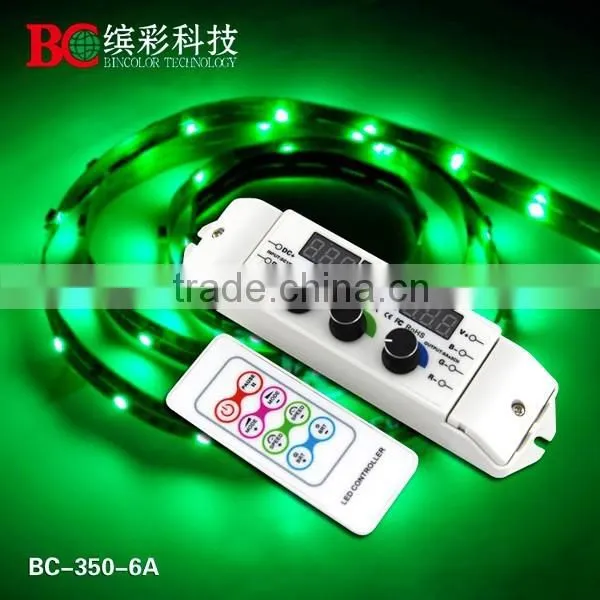

DC12V-24V Led Lamp Rgb Controller Led Module Controller Wireless Remote Rotary Knob Manual Switch photo-5
DC12V-24V Led Lamp Rgb Controller Led Module Controller Wireless Remote Rotary Knob Manual Switch photo-6
US$ 1 - 30 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Bincolor
Model Number:
BC-350-6A
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhuhai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Bincolor
Model Number BC-350-6A

12V-24V led lamp rgb controller led module controller Wireless remote rotary knob manual switch



               DC12V-24V led lamp rgb controller led module controller Wireless remote rotary knob manual switch



 Introduction :



BC-350 Universal Red/Green/Blue (RGB) LED controller with RF remote can dim any 12VDC-24VDC RGB LED products from 0% to 100% using Pulse Width Modulation (PWM) circuits. Maximum load is 6 amps per channel, 18 amps total.



With 37 pre-loaded programs, the first mode is DIY static color, Knob controls for full range custom color creation. 2-8 modes is static modes. 9-36 is Dynamic modes, the last mode is Cycle mode.You can simply select your favorite mode.





Product parameter:





Model

 BC-350-6A Rotary RGB controller

Input voltage

 DC12V-DC24V

Output current

 6A/3CH

Output power

 220W(12V)/440W(24V)

Scale levels

 4096 level X3

Mode

 37modes

Speed level

 16 levels

Brightness level

 16levels

Remote control distance

 30m with obstacle, 60m without obstacle

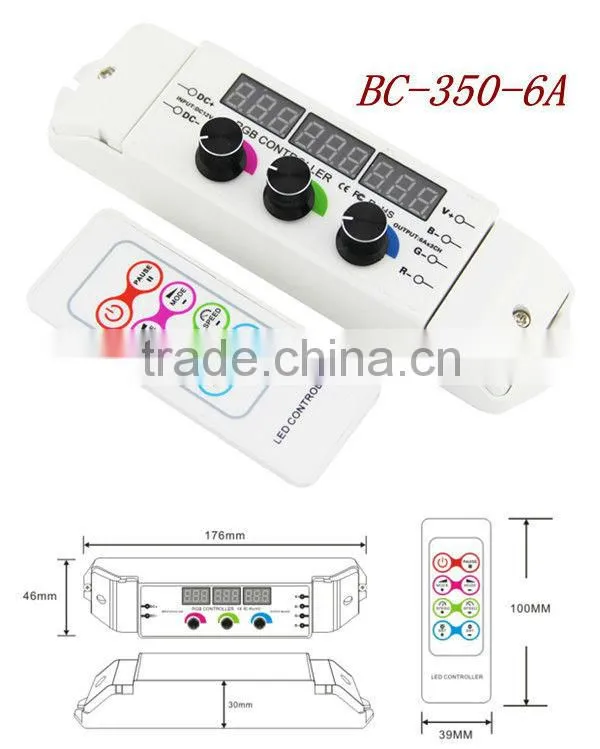

Dimension

 L176XW46XH30(mm)

Weight

 160g





Feature function:







1.Installer-friendly: easy to install, mount and configure



2.Rotary knob DIY your favorite color,


3.with RF remote ,4096 scale level each channel


4.37 pre-loaded modes, static modes with brightness adjust , dynamic modes with speed and brightness adjust



5.Power loss memory function


6.Over current protection and short circuit protection



7. 3 years warranty , with CE FCC Rohs certifictaion

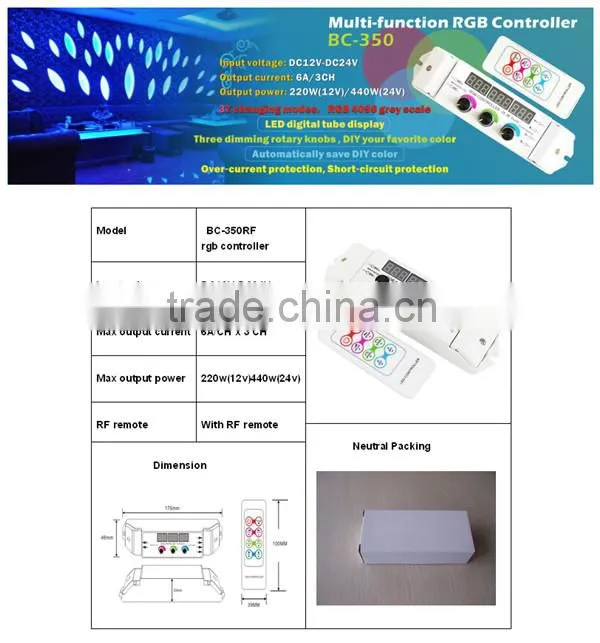

Product show :

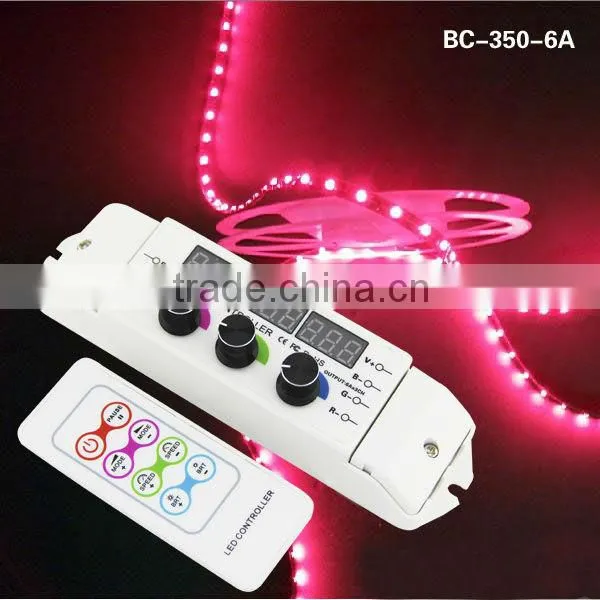

  DC12V-24V led lamp rgb controller led module controller Wireless remote rotary knob manual switch







Typical Wiring Schematics:





  1. RGB controller BC-350-6A and RGB LED strips.





 DC12V-24V led lamp rgb controller led module controller Wireless remote rotary knob manual switch

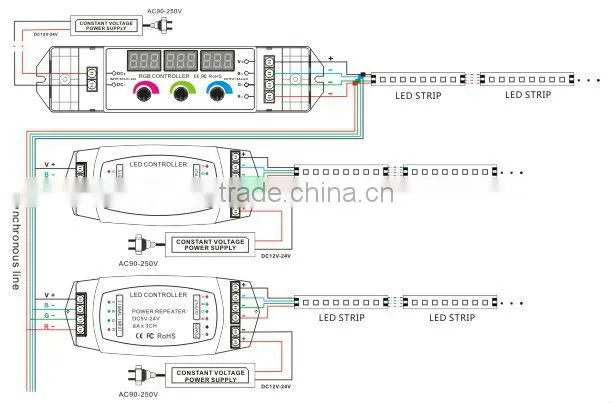

   2. Rotary RGB controller  BC-350-6A, LED power repeater BC-960 and RGB LED strips





  DC12V-24V led lamp rgb controller led module controller Wireless remote rotary knob manual switch





      DC12V-24V led lamp rgb controller led module controller Wireless remote rotary knob manual switch





DC12V-24V led lamp rgb controller led module controller Wireless remote rotary knob manual switch
