Touch Panel DC5V-DC24V LED CT Controller Touch Panel Color Temperatur e Controller 8A/CH*2
Touch Panel DC5V-DC24V LED CT Controller (BC-310 )
Brief Introduction:
BC-310 series LED color-temperature controller is a universal high-performance color-temperature controller,
which adopted the most advanced PWM (Pulse-Width Modulation) digital brightness-adjusting. Changing the
color temperature by adjusting two different light colors, it suits for all 2 channel LED lights.
Specification:
|
Model |
BC-310 |
BC-310RF |
|
Input Voltage |
DC5V-DC24V |
DC12V-DC24V |
|
Max Current Load |
8A/CH×2 |
8A/CH×2 |
|
Max Output Power |
120W(5V)/192W(12V)/384W(24V) |
192W(12V)/384W(24V) |
|
Scale Levels |
4096 levels |
4096 levels |
|
Product Dimension |
L165xW56xH36 mm |
L165xW56xH36 mm |
|
Package Dimension |
L170×W49×H49(mm) |
L170×W49×H49(mm) |
|
Weight (G.W) |
160g |
190g |
|
Remote Control Distance |
N/A |
Up to 60 metres. |
Product Features:
1. Automatically adapt to LED light which works from DC5V-24V or DC12V-24V.
2. Real 0~100% brightness adjust, 4096 scale levels. Lamplight soft and stable, without flicker, precisely control color temperatures
3. 2 channel outputs with Max 8A current. Working with power repeater to expand power output unlimitedly.
4. 4 DIY modes,easy to replay your favorite settings
5. Soft touch button with friendly experience.

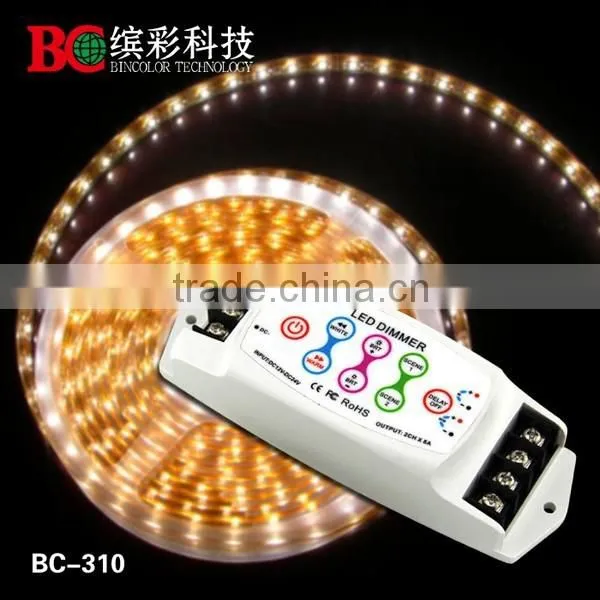

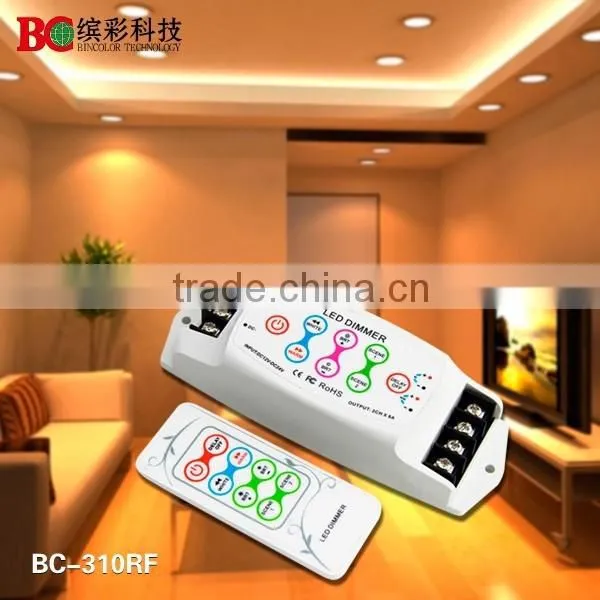

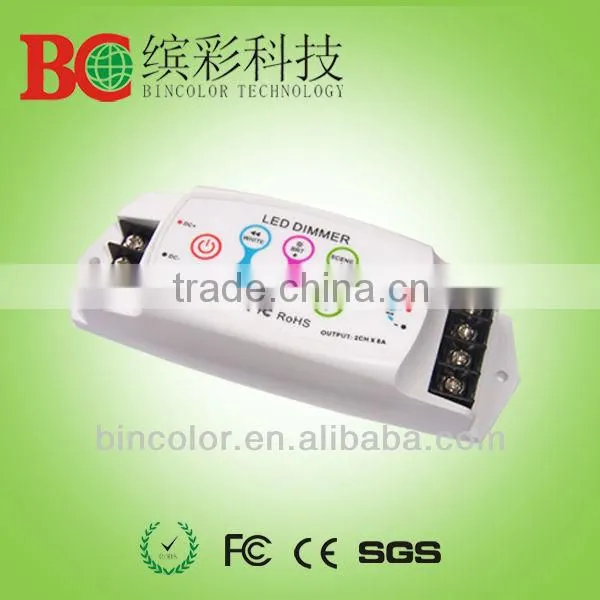

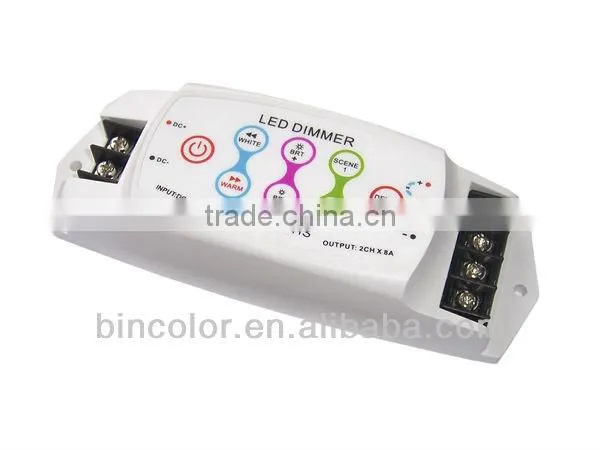

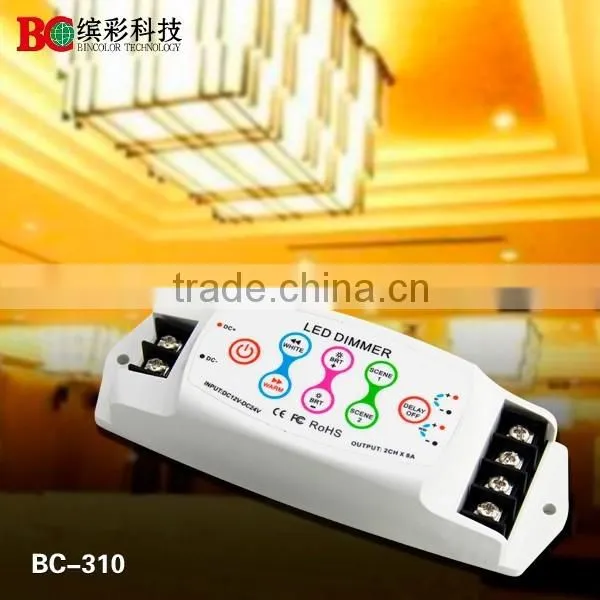

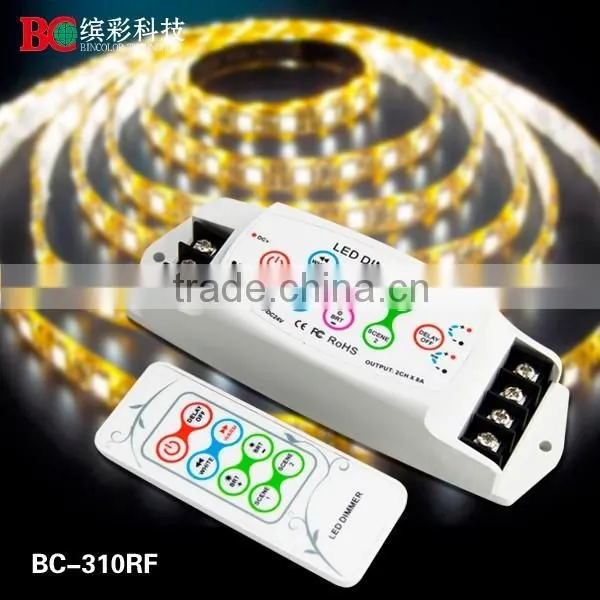

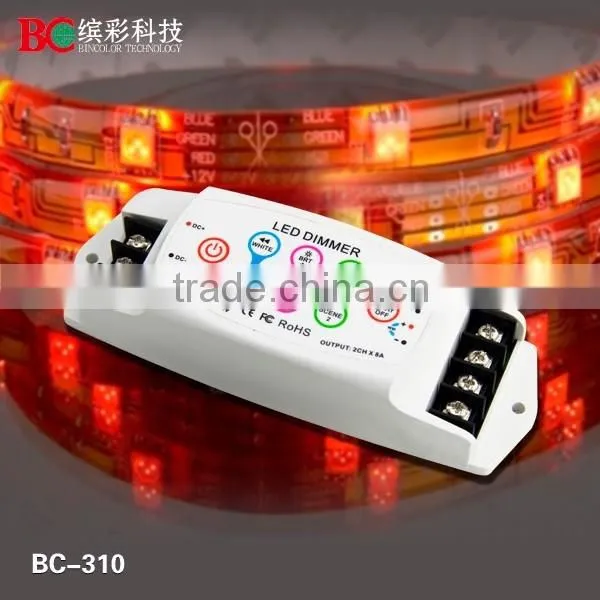

Product image:
Typical Wiring Schematics:
1. LED Color-temperature controller connects to LED strips:

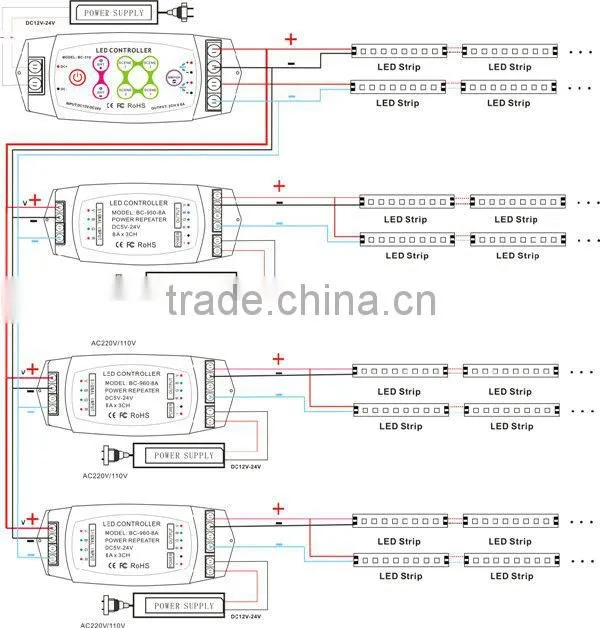

2. LED color-temperature controller connects to LED strips and amplifiers:
