Help CenterBC-802-6803 DC5V-24V LPD6803 DMX SPI Signal Decoder Compatible With LPD1101, D705, UCS6909, UCS6912
Related Products
-
BC-802-8806 DC12V-DC24V DMX 512 Decoder for IC LPD8803 LPD8806US$ 1 - 30MOQ: 2 Pieces -
BC-802-3001 DC5v-24v DMX to TLS3001 Decoder TLS3001 Dmx Decoder Rgb Pixel Led ControllerUS$ 1 - 30MOQ: 1 Piece
-
DC5V-24V DMX512 to 9813 Dmx512 Decoder DMX DriverUS$ 1 - 30MOQ: 1 Piece
-
Dream-color ControllerUS$ 1 - 30MOQ: 1 Piece
-
New Arrival DMX Rgb Pixel Led Time Controller, Programmable Digital Lcd Display Rgb Led Dmx 512 ControllerUS$ 0.01 - 50.00MOQ: 1 Set

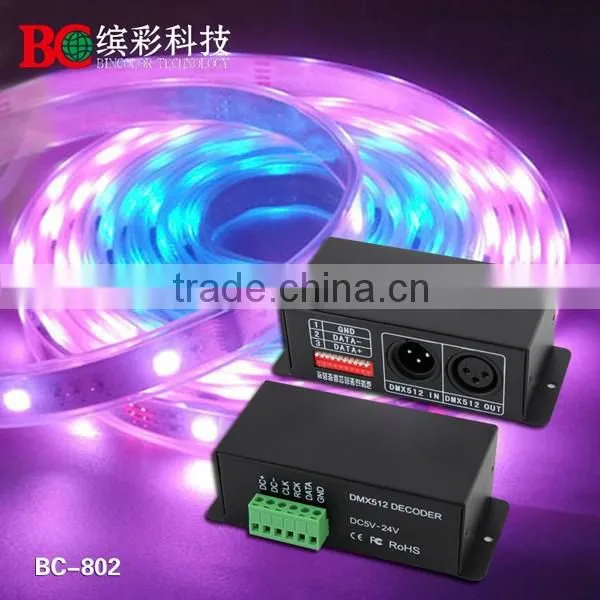

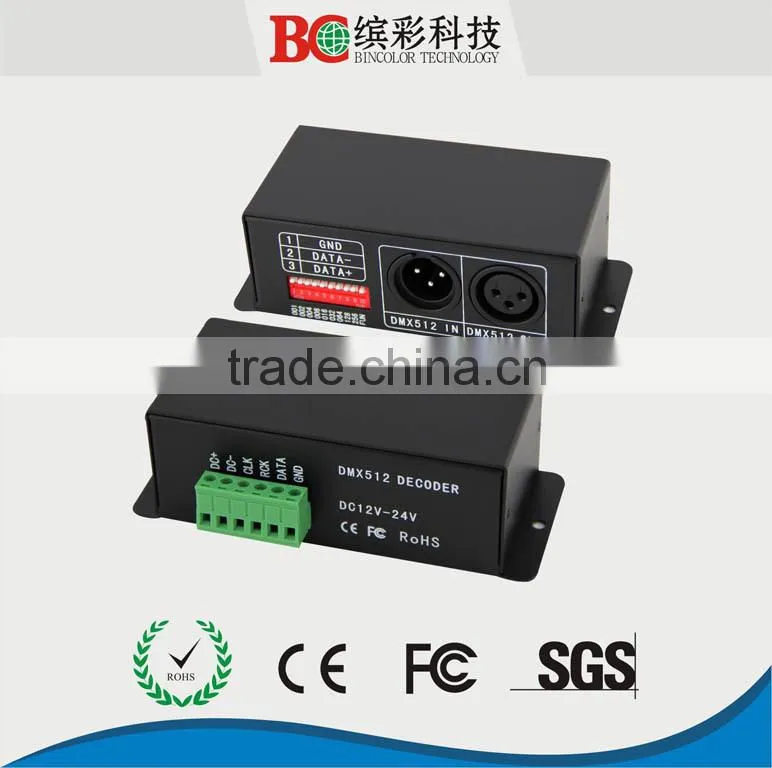

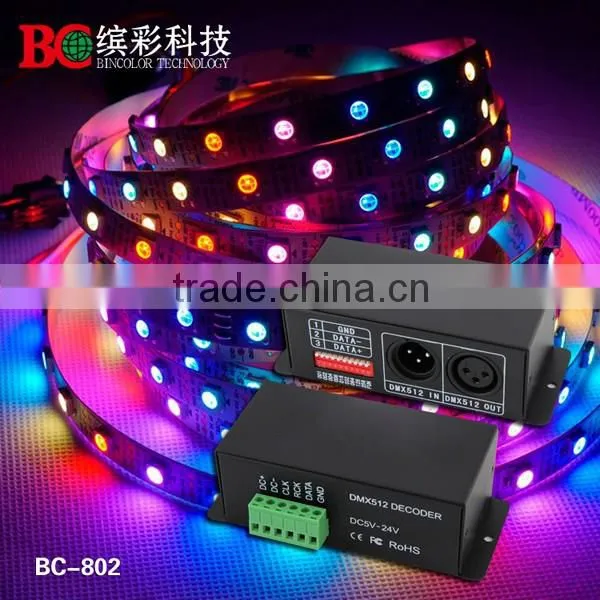

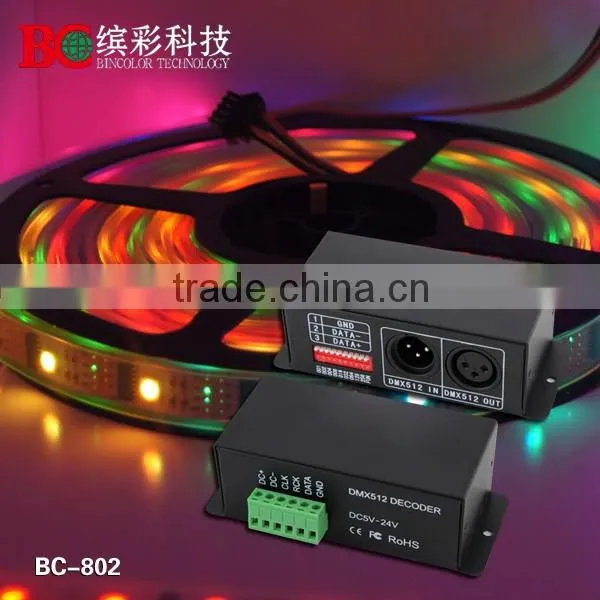

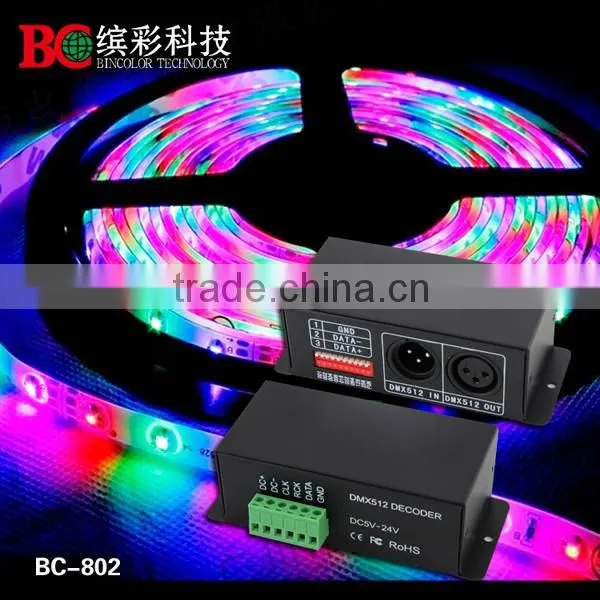

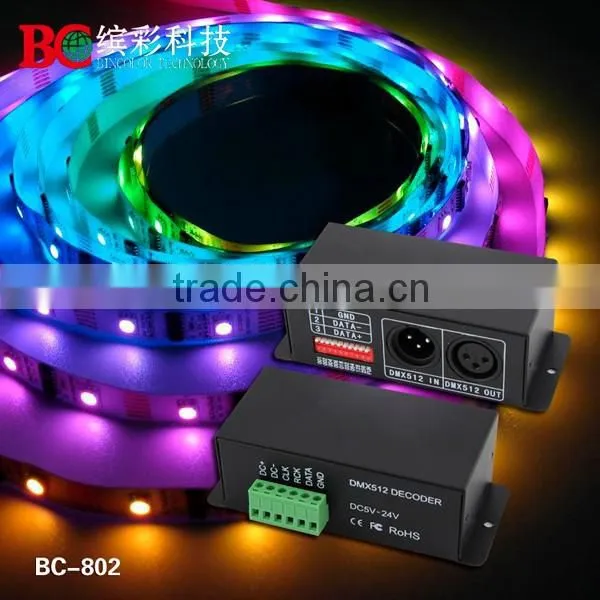

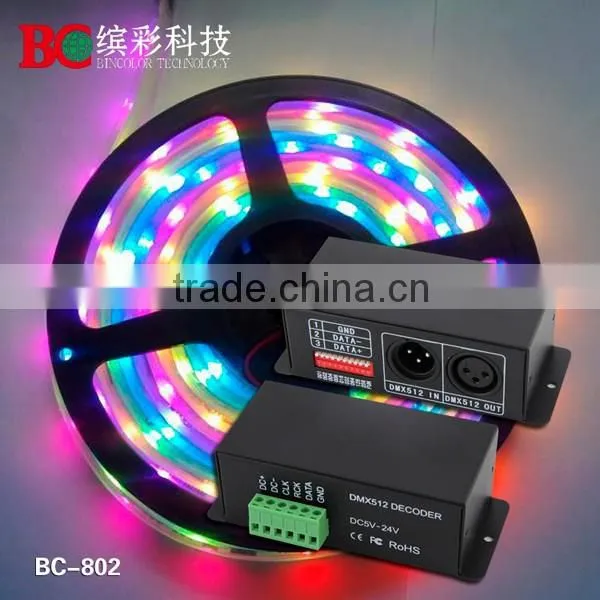

Product picture
Product Specification:
| Name | Value |
| Brand | Bincolor |
| Model | BC-802-6803 |
| Production Capacity | 5000Piece/Pieces per Month |
| Input voltage | DC12V-DC24V |
Input Signal |
DMX512/1990 |
Output Signal |
LPD6803 |
Decode Channel |
512 |
Control Chip model |
LPD6803,LPD1101,D705,UCS6909,UCS6912 |
| Certification | CE ,FCC ROSH |
| Dimension(L*W*H) | L125*W52*H40 |
| Weight | 320g |
DMX Socket |
Standard XLR-3 |
Product Features:
- In put standard DMX512 protocol,Address can be set by DIP
- Automatically adapt input voltage DC12V-24V
- Self-Changing Mode exist
- Output LPD6803 control Signal
- Power loss momery function
- Over current protection and short circuit protection
Product Diagram :
DMX PORT
OUTPUT PORT
Port definition:
Port |
Function |
DC+ DC- |
DC12-24V Power Input |
DATA |
Data |
CLK |
Clock |
RCK |
Register Clock |
GND |
Ground |
Warning: the power cable can’t connect the data port, otherwise it will damage the decoder!
Typical Wiring Schematics:
After inspection the goods are packed in white inner box and then carefully packed in cartons.
