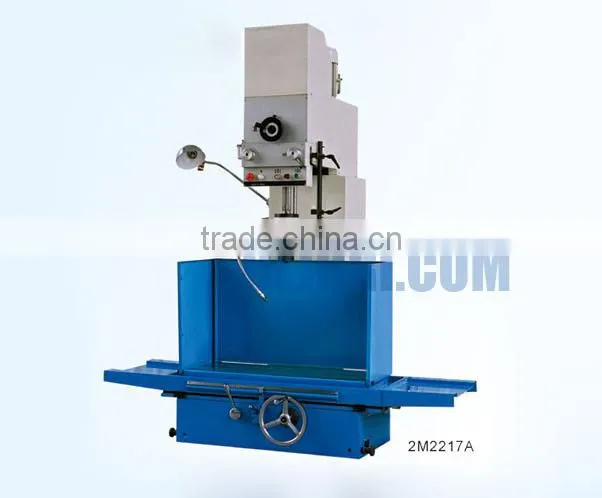

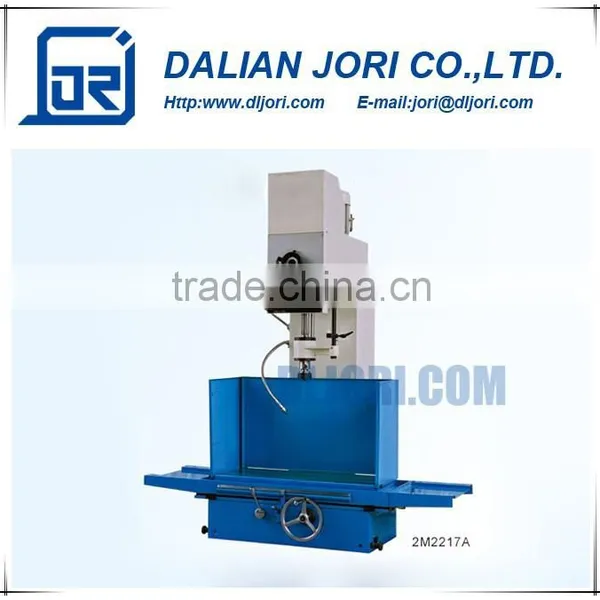

2M2217A Engine Cylinder Body and Sleeve Holes Vertical Honing Machine
Features:
2M2217A is mainly used for honing holes of cylinder body and sleeve holes for various engines and other accurate holes.
1.Stepless of spindle turning feeding, reciprocating.
2.The short stroke machine can be used for making the workpiece conveniently.
3.The diameter of the honing head can be varied in the honing process according to the user need.
Specification:
Model |
2M2217A |
Honing diameter range |
Φ40~Φ170mm |
Max. honing depth |
300mm |
Telescopic length of spindle connecting rod |
120mm |
Spindle speeds(four steps) |
130,180,240,365 mm/min |
Spindle alternating motion speed(stepless) |
3~18m/min |
Max. spindle travel |
270mm |
Distance from spindle axis to column vertical plane |
300mm |
Dimensions of the surface |
400x1000mm |
Table longitudinal travel |
800mm |
Machining accuracy(Roundness) |
0.003mm |
Machining accuracy(Cylindricity) |
0.005mm |
Machining accuracy(Roughness) |
Ra0.4 |
Overall dimension |
1900x1176x2169 mm |
Packing Size |
1440x1770x2225 mm |
Net/Gross weight |
2500/3000 kg |
Standard accessories:
Honing head MT62 ( honing holes 62-82),Tool box.
Optional accessories:
Honing head MT82 ( honing holes 82-110),
Honing head MT110 ( honing holes 110-170),
Honing head MT40 ( honing holes 40-62).
Our professional Work Team who will be available waiting for you at 24 hours per day, 7 days per weeks.
Our Mission:
To provide a More Cost Efficient Solution for our customers. Suitable is the Best Way, Best for customers, for local market and even for our future. We treat it as our responsibilty in every business.
Our Goal:
To get Trust from every customers who contacted with us. To show our sincerely in communication and our professional skills in business, and even to provide the most suitable machines for them to satisfy with their special need. We hope we can get the comments like: Best Machines, Best Service and Best Person which we met, after customers received our machines in their local side.
Our Culture:
To be Professional and Progress together. We treat every staffs as a family member, We learned, We shared and We worked together to reach our goals. We will be better and better as long as we ALL progress together every minutes. A little change everyday makes a big difference someday.
DALIAN JORI CO.,LTD will be your Best Choice for business cooperation of ALL kinds of Engine Rebuilding & Auto Maintenance Machines in China. Contact Us Now !
1. One-stop Service for our customers. After you find us on Internet or Exhibition and want to engage in Engine Rebuilding Machine field, Any questions can be solved by our professional Sales Managers and skilled Engineers promptly.
2. At the beginning of business, Considering customer specially situation and demands, Our Sales Manager will select and introduce some suitable machines for customers after discussing with our engineers. Customers can select the RIGHT one which they prefer to purchase and then go on further understanding until placing orders with us.
3. When we start to manufacturing your machines according to Sales Contracts, We will Keep tracking production plan and posting to customers every weeks. Exact Delivery Time will be informed ONE week beofore delivery.
4. ALL of our machines will be tested and had trial production in our factory before leaving our factory and they are shipped out only after customers are satisfied with them. Customers can send your technicians or the Third party inspection agency to our factory to check and accept machines before delivery.
5. Fast and security shipping company will be chose by our Delivery Department for customers (if we signed contract under CIF term). Even All risks Insurance will be covered during the whole transportation.
6. Upon receiving our machines, JORI will start to supply our promptly After-sales service for you. Any questions can be solved as soon as possible by our Customer Service Representative.
7. All our products will have ONE year guarantee and we will continue to offer advice and spare parts after this period. Standard spare parts and accessories with our machine will be supplied together in wooden case when shipment.
Within ONE year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by air-mail or Express immediately FREE OF CHARGE.
After ONE year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.
