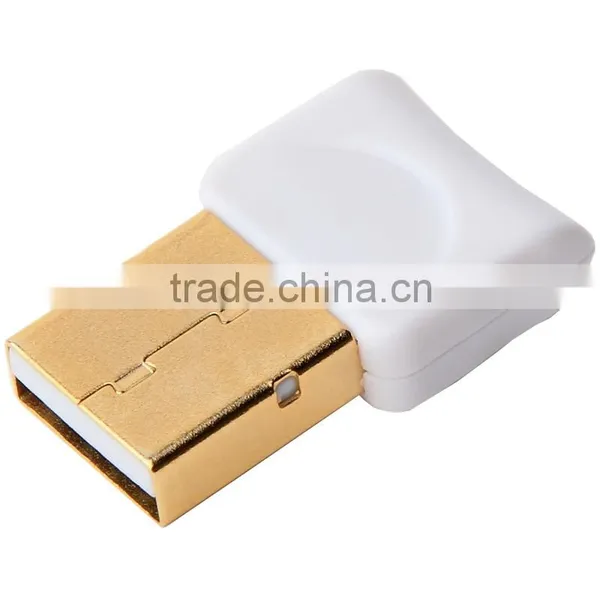

mini usb bluetooth dongle
Features
Fully qualified Bluetooth v4.0 specification system
Support for Bluetooth v3.0 only available with CSR8510
Dual-mode Bluetooth /Bluetooth low energy
Draft Bluetooth low energy HID boot mode support
Full-speed Bluetooth operation with full piconet and scatternet support
Integrated balun
No external regulators required for USB supply operation
Full- speed USB 2.0 interface
WLAN coexistence interface
Green (RoHS compliant and no antimony or halogenated flame retardants)
Design optimised for low-cost PCB manufacture
Applications
PC notebooks , netbooks and desktops
TV set-top boxes
USB Bluetooth dongles
Bluetooth designs requiring the USB interface and an HCI interface
Bluetooth low energy
Bluetooth Specification | |||
Standard |
Bluetooth V4.0 |
||
Profiles |
Bluetooth low energy Dual-mode Bluetooth |
||
Frequency Band |
2.402G-2.480G |
||
Sensitivity |
-86dBm@.01%BER |
||
RF TX Prower |
+6dBm |
||
Prower | |||
Supply Voltage |
5V DC(MAX5.75V) |
||
Working Current |
Depends on profiles, 22mA typical |
|
|
Standby Current (Connected ) |
0.4uA |
|
|
Operating Environment |
|
||
Temperature |
-20 degree to +70 degree |
|
|
Humidity |
10%-90% Non- Condensing |
|
|
Certifications |
BQB/FCC/CE |
|
|
Environmental RoHS Compliant |
|
||
