300m Mini Usb Wifi Adapter

US$ 2.5 - 2.5 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

XHT-1506

Zhuhai Fine Acoustics Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number XHT-1506

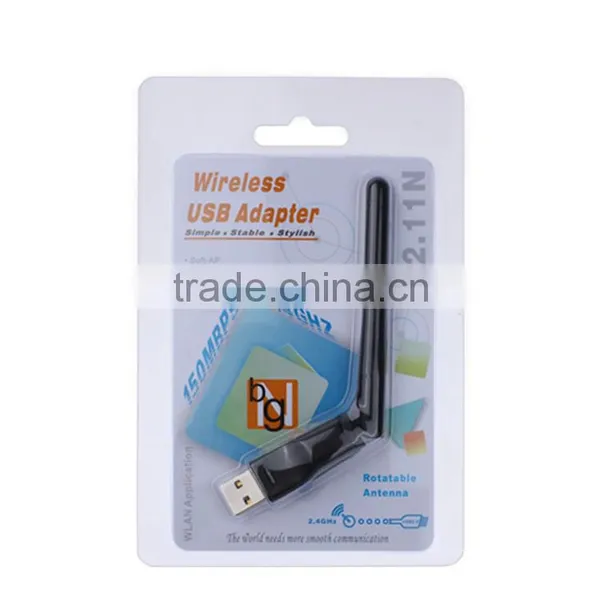

300m mini usb wifi adapter

This mini profile WLAN Adapter with rotable antenna supporting IEEE 802.11/b/g/n standards with USB connector supporting USB2.0 interface

l 802.11b: 1, 2, 5.5, 11Mbps;

l 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps

l 802.11n: (20MHz) MCS0-7, Support up to 72Mbps

l (40MHz) MCS0-7, Support up to 150Mbps

l OFDM, Peak rate 150Mbps, Peak throughput 90Mbps

l Security support for 64/128 WEP, WPA, WPA2, TKIP, AES

l Operates in 2.4GHz frequency bands. Power Management

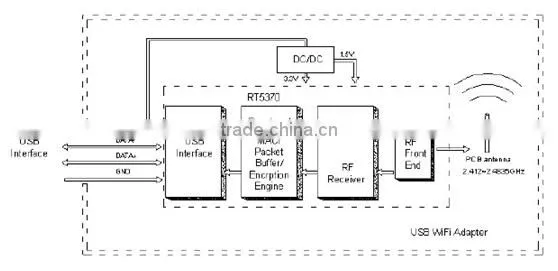

Software and system Information

Hardware
Main Chipset	Ralink RT5370
Host interface	USB 2.0/1.1 Type A
LED	Link/ Activity
RF Performance
Standards	IEEE802.11b/g & 802.11n (1T1R mode, 150Mbps)
Antenna	2dBi undetachable antenna
Operation Frequency	2412~2483.5 MHz (varies according to different regions).
Typical Tx Power (E.R.I.P)	802.11b (CCK)11Mbps: 19+/-1dBm; 802.11g (OFDM) 54Mbps: 16+/-1dBm
Typical Tx Power (E.R.I.P)	802.11n (HT20@MCS7), 15+/-1dBm; 802.11n (HT40@MCS7),15+/-1dBm
Receive Sensitivity	802.11b: -86+/-1dBm; 802.11g: -74+/-1dBm
Receive Sensitivity	802.11n (HT20), -70+/-1dBm; 802.11n (HT40), -70+/-1dBm
Software Support
Operation System	WindowsCE/2000/XP/Vista/7; Linux 2.6.X; Mac OS X
Security	WEP 64/128bit , WPA, WPA2, 802.1x, and 802.11i,Cisco CCS Compliant
Operation conditions
Voltage Range/Current	DC 5.0V ± 5% / <160mA
Temperature	Operation: -10°C - 60°C; Storage:-20°C - 70°C
Humidity(Non-Condensing)	Operation: RH 95%; Storage : RH 95%
Physical Specification
Dimensions	(Main body)16.4x14.7x58mm, details refer to the figures.
Net Weight	9.8 g
