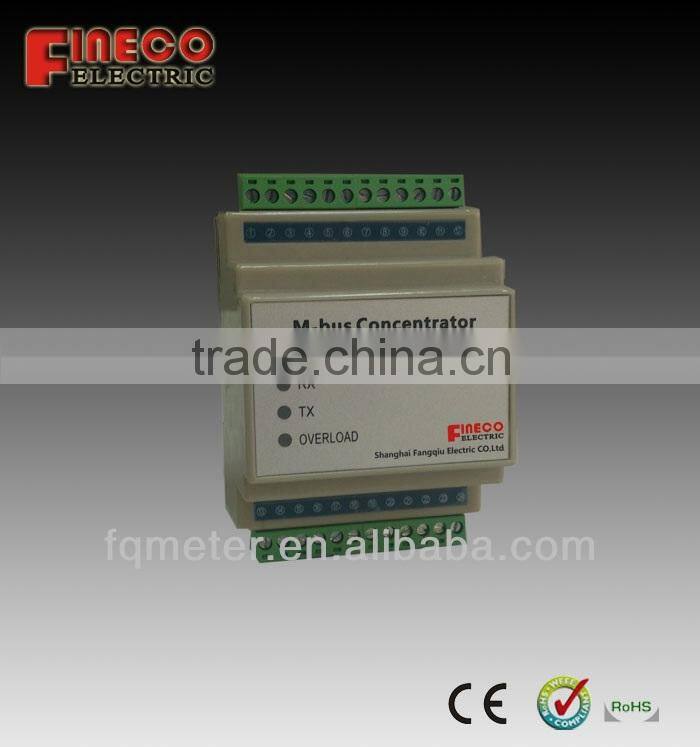

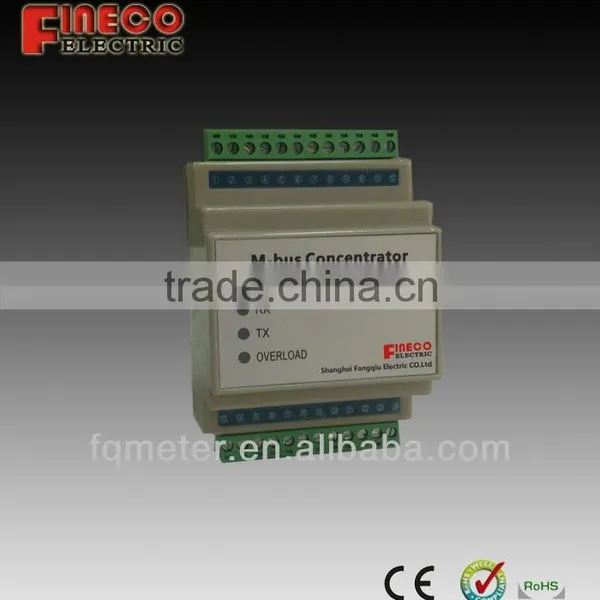

M-bus Concentrator
The M-BUS concentrator will realize the conversion between M-BUS bus and RS-232 or RS-485 or Ethernet. The transparent data transmission .
With Fineco smart energy meter and water meter, BMS system
Specification:
|
Direct connected meters |
Power(v) |
12V DC 1.5A/ 24V DC 1.5A |
Indicating lamp |
Power/RX/TX/Overload |
Bus voltage |
36V |
Uplink port |
RS232&RS485&Ethernet |
Downlink port |
M-bus |
Communication rage |
≤1000m |
|
Baud rate speed (uplink & downlink) |
300 ~ 9600bps |
Bus loading |
256 meters per bus |
Fixing mode |
DIN 35mm |
Width (mm) |
72 |
Height (mm) |
109 |
Depth (mm) |
59 |
Environmental | |
Operating Temperature |
-25 ~ +75 °C |
Storage Temperature |
-30 ~ +80 °C |
Ambient Relative Humidity |
5 ~ 95% RH (non-condensing) |

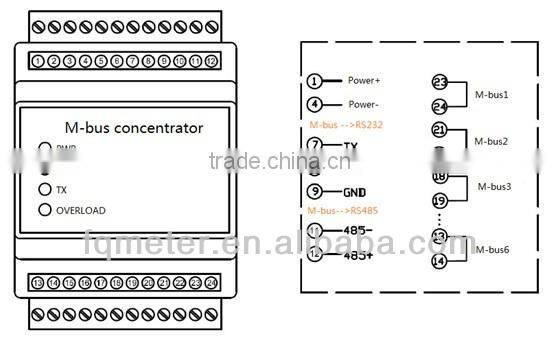

Connect diagram:

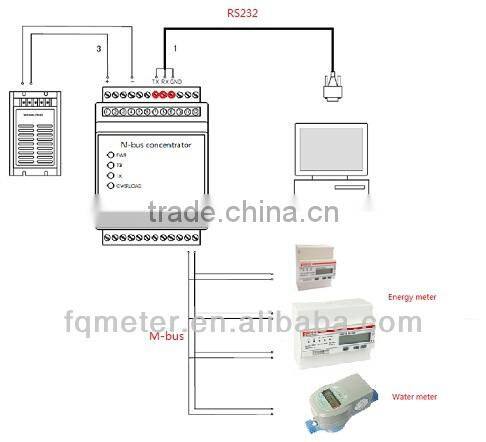

1 M-bus-->RS232 :

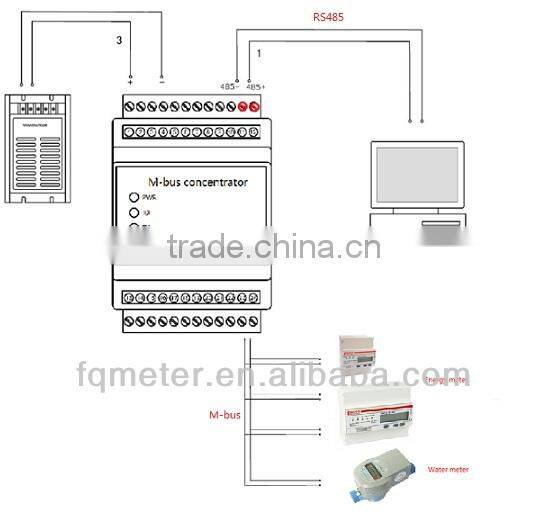

2,M-bus-->RS485

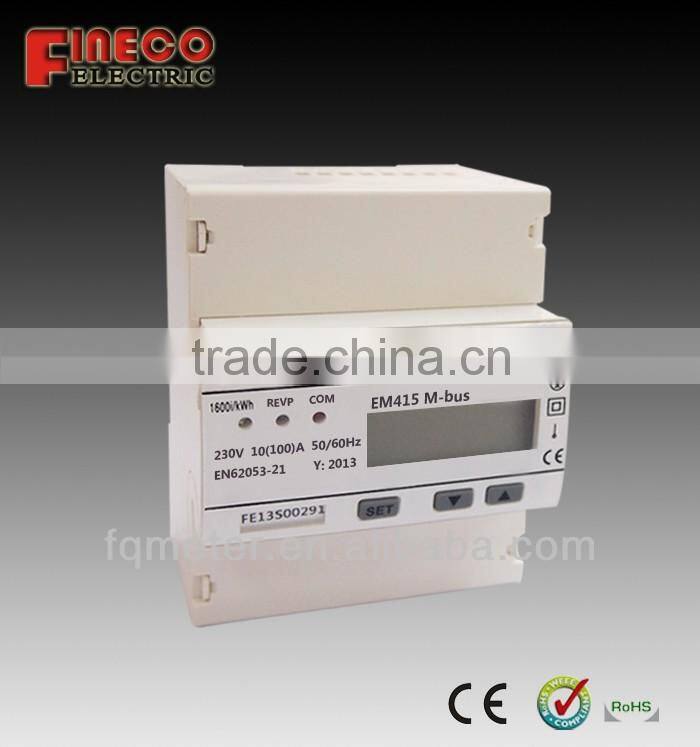

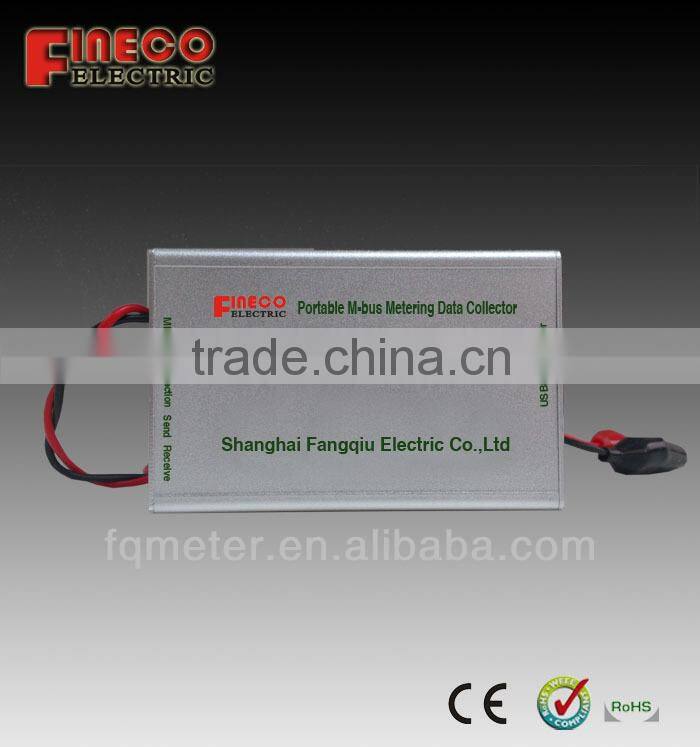

Other product:
