S0 impulse counter
Benefits and Main Features
- Standard DIN rail Format (DIN43880)
- Collect 1-8 utility meters with volt free pulse contacts.
- Using Modbus connectivity to the Fineco power control system V1.0
- Independently programmed for both utility type and tariff structure enabling Water, Gas, Electric and heat meters etc
- Data can be output directly into excel, word, pdf via fineco power control system v1.0
- Small size, light weight
- Lower power consumption
- Safe and has highly reliability and interference
Storage temperature -30°C ~ +80°C
Humanity 20~90%RH
Input terminals 8 Sets of +/-(Volt free)
Burden Less than 1VA
Auxiliary Supply 230v±30%
RS485 bus details Baud rate: 1200bps
Protocol: Modbus RTU
Standards EMC testing for emissions
Material ABS+PC
Connection area main terminals 0-2.5mm2

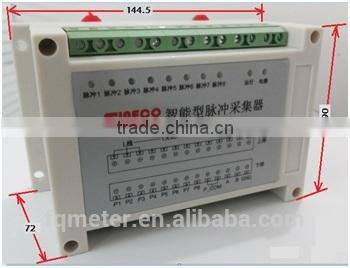

Dimensions:

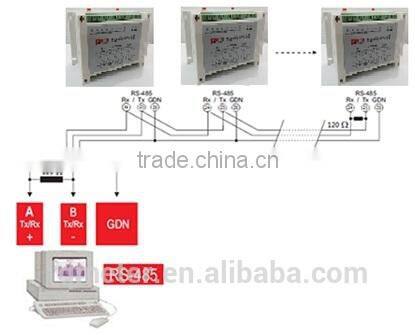

Wiring diagrams:
Main function:

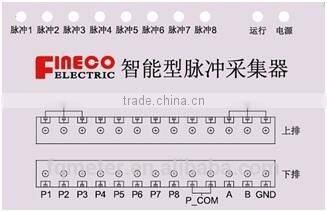

Pulse input connections
Terminal P1-P8 are dedicated for pulse from external meters and care should be taken when connecting to these terminals. A red indicator LED has been allocated and will flash number 1-8 to indicate the HCC receiving pulses from external meters connected.
Communication Function
With a RS485 COM. Independently programmed for both utility type and tariff structure enabling Water, Gas, Electric and heat meters etc
RS485 communications transfer rates allow selected at 1200bps
Data output
Data can be output directly into excel, word, pdf via fineco power control system v1.0.

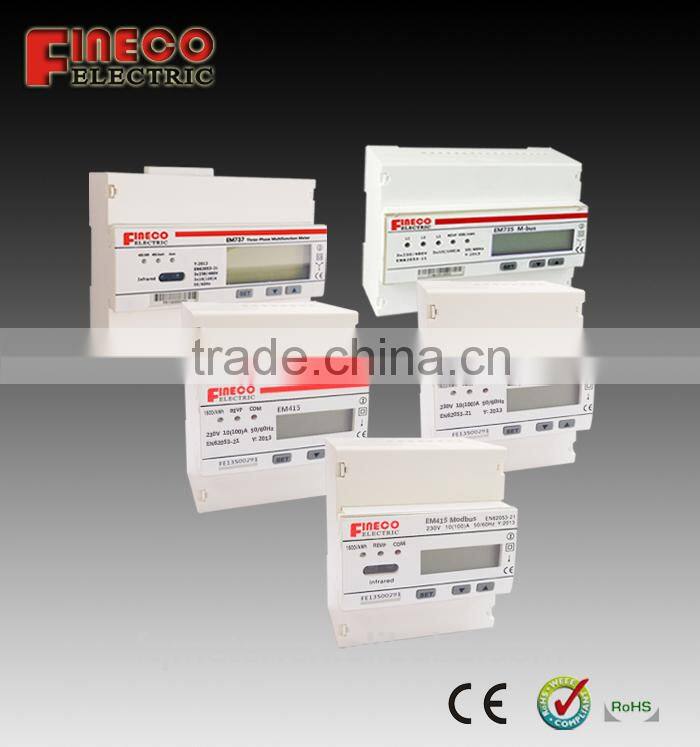

Other products:
