Specifications
Finco-201E is a light weighted, compact and robust port powered RS-232 to RS-485/422 Interface ConverterFineco-201E rs232 rs485 converter
rs232 converter rs232 to rs485 converter
Specifications
Finco-201E is a light weighted, compact and robust port powered RS-232 to RS-485/422 Interface Converter
RS-232 / RS-422 / RS-485 over Fast Ethernet Media Converter performance parameter
Interface feature: RS-232C,RS-485 standard interface Compatible with EIA,TIA
Electric interface: RS-232 end DB9 female (hole-type), RS-485 end DB9 male (needle-type) connector, with connection pole
Working mode: asynchronous half-duplex difference transmission;
Transmission media: twisted-pair or STP
Transmissionrate:300-115.2Kbps
Dimension: 63mm×35mm×17mm
Working circumstance:-40 to 85 degree C, relative humidity 5% to 95%
Transmission distance: 1,200m (RS-485end), 5m (RS-232end)
Protection Level: RS-485 interface 600V lightning surge protection in each line

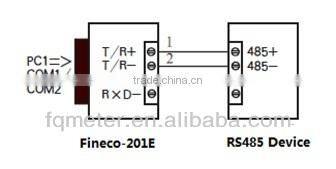

Connectdiagram
