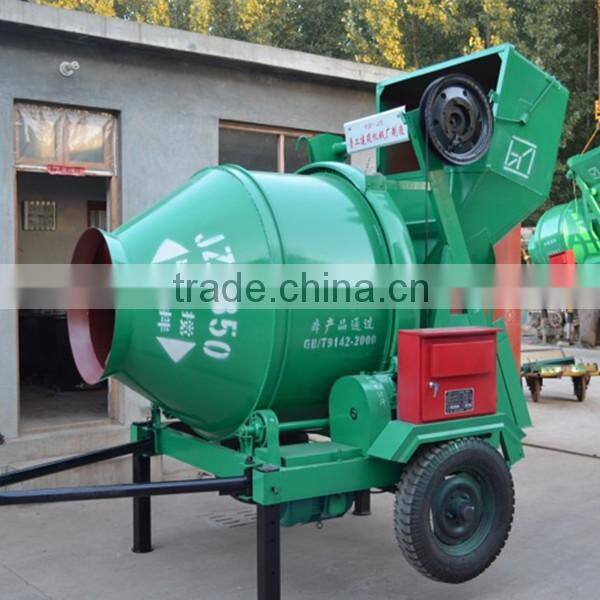

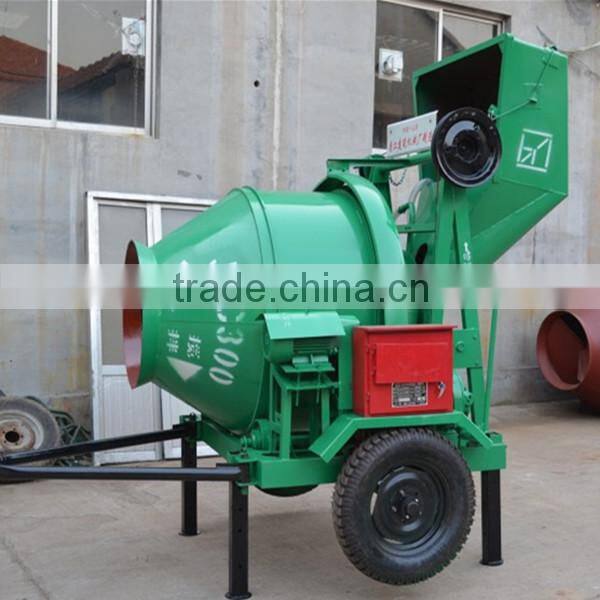

2016 Hot Sell Brand Concrete Mixer by Diesel Hydraulic Hoist Hopper

2016 Hot Sell Brand Concrete Mixer by Diesel Hydraulic Hoist Hopper

Main Technical specifications

Discharge volume(L) : 350

Arge volume(L) : 560

productivity(m3/h) :12-14

mixing motor:

           Model:Y132S-4

           Powe(Kw):5.5

           rotate speed(r/min): 1440

water pump motor:

            Model:50DWB20-8A

           power(Kw):0.55

           rotate speed(r/min): 2800

mixing barrel rotate speed(r/min):14.5

Particle size of the largest aggregate (gravel/pebble) mm :40/60

mixing time(S): 35-45

Dimension:2550×2230×3050( on working)

                        2650*2230*2700 (on transportation)

weight (kg) :1920

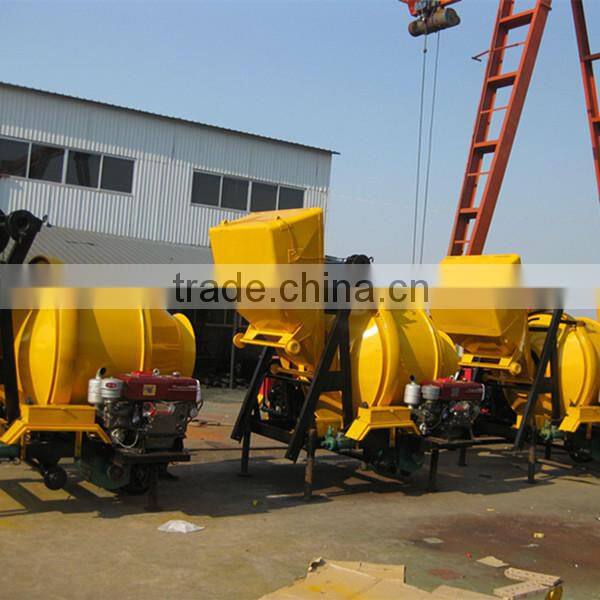

Diesel engine Main technical parameters

         Model: ZS1115M

         Type: horizontal, single-cylinder, four-stroke

         Cylinder diameter: 115mm

         Piston displacement: 1.195

         Rated power: 14.71KW

         ISO standard fuel stops power (icfn): 16.18kw

         Rated speed: 2200r/min

         Cooling: Evaporative

         Start: Electric start

         Battery: 12V Maintenance-free lead-acid battery brand

         Net weight: 195kg

         Dimensions: 970 × 463 × 699mm

Generator main technical parameters:

         Model: STC-15

         Power: 15KW

         Current: 27.1A

         Poles: 4

         Frequency: 50 Hz

         Power factor: 0.8

         Speed: 1500r/min
